Side-mount level switch with rain-tight low profile receptacle. 360° nipple rotation for wire exit angle positioning. Installs from outside. Hermetically sealed reed switch, N.O. or N.C. by orientation. Acetal construction handles petroleum fuels, hydraulic oils, hydrocarbons, and solvents beyond polypropylene's range.
| Quantity | Unit Price |
|---|---|
| 1–9 | $116.99 |
| 10–24 | $111.45 |
| 25–49 | $99.33 |
| 49–99 | $90.34 |
| 100–999 | $47.91 |

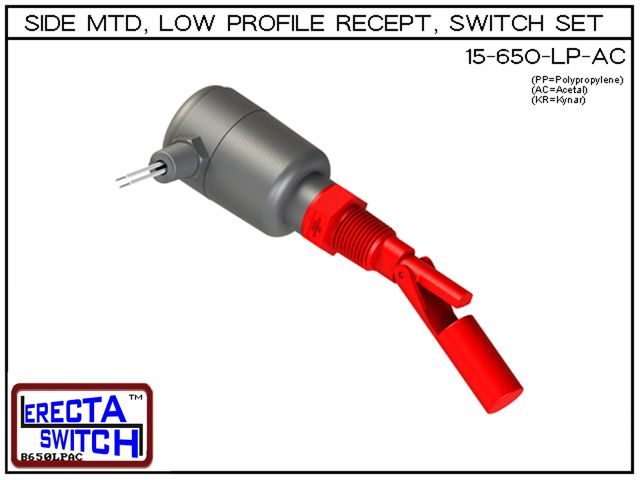

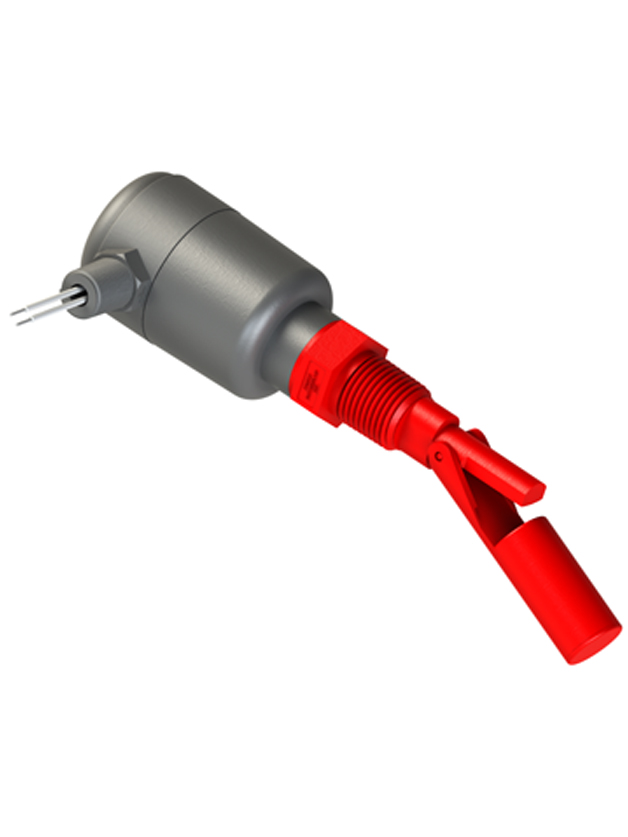

The 15-650-LP-AC is the low profile receptacle version of the Series 15 side-mount switch in acetal — featuring a rain-tight low profile receptacle with 360° nipple rotation for flexible wire exit angle positioning. Installs from outside the tank wall. Acetal wetted parts for petroleum fuel, hydraulic oil, and hydrocarbon applications.
| Specification | Value |
|---|---|
| Series | 15-650-LP |
| Switch Element | Standex/OKI ORD229, hermetically sealed reed |
| Housing | Low profile receptacle, rain-tight, 360° nipple rotation |
| Contact Rating | 70 VA, 50W resistive |
| Max Current | 0.5A AC / 0.7A DC |
| Mount | 1/2 NPT outside-in OR 1/4" straight thread inside-out |
| Float Diameter | 0.70 in (17.78 mm) |
| Overall Length | 4.45 in (113.03 mm) |
| Lead Wire | 24 in (609 mm) |
| Pressure Rating | 50 PSI @ 20°C; derate to zero @ 90°C |
| Temp Max | 90°C |
| SG Min | 0.80 |
| Compliance | RoHS |
| Material | Acetal |
A float level switch like the 15-650-LP-AC is a point-level device: a float rides the liquid and actuates a magnetic reed switch at a set height, giving a simple on/off signal — no power, no firmware, no calibration. "Sensors" usually means continuous measurement (ultrasonic, radar, capacitive). ERECTA SWITCH targets reliable discrete-point control.
The 15-650-LP-AC is used for pump start/stop control, high-level overflow protection, low-level dry-run protection, and tank or reservoir level alarms in OEM equipment. The modular ERECTA SWITCH system is built into laundry, HVAC, water-treatment, hydraulic, and chemical-handling machinery.
Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.
The 15-650-LP-AC is point-level — it provides a discrete on/off signal at a set height. For multiple switch points, use a multi-level extended-stem set (2-, 3-, or 4-level) instead of a single continuous sensor.
ERECTA SWITCH offers vertical top-mount, bulkhead, and extended-stem configurations, plus side-mounted single-point models. The mount style is part of the model number — select the configuration that matches your tank geometry.
Point detection is repeatable and mechanical. The trip height on the 15-650-LP-AC is set by the 10-715 Precision Nipple, ordered separately in 1-inch increments (1″–70″), so you place the switch point exactly where the application needs it.
Our engineering team can verify compatibility with your application and chemistry before you order.
