ERECTA SWITCH® by Compac Engineering
Level · flow · temperature switching

Four failures.
One supplier.
Every machine you build.

A flooded cabinet, a pump run dry, a burner fired into a dead line, a coil over temperature. Each one is a single switch — and that switch has to survive your media, fit your mount, and still be orderable in five years.

The four parts on that drawing

Balloon number → part number. Nothing on the drawing is generic.
1Float tank level
Model 10-101-PP vertical float level switch in polypropylene
10-101-PP Keeps the pump fed. Square stem, so the float rides on knife edges and cannot stick. POLYPROPYLENE

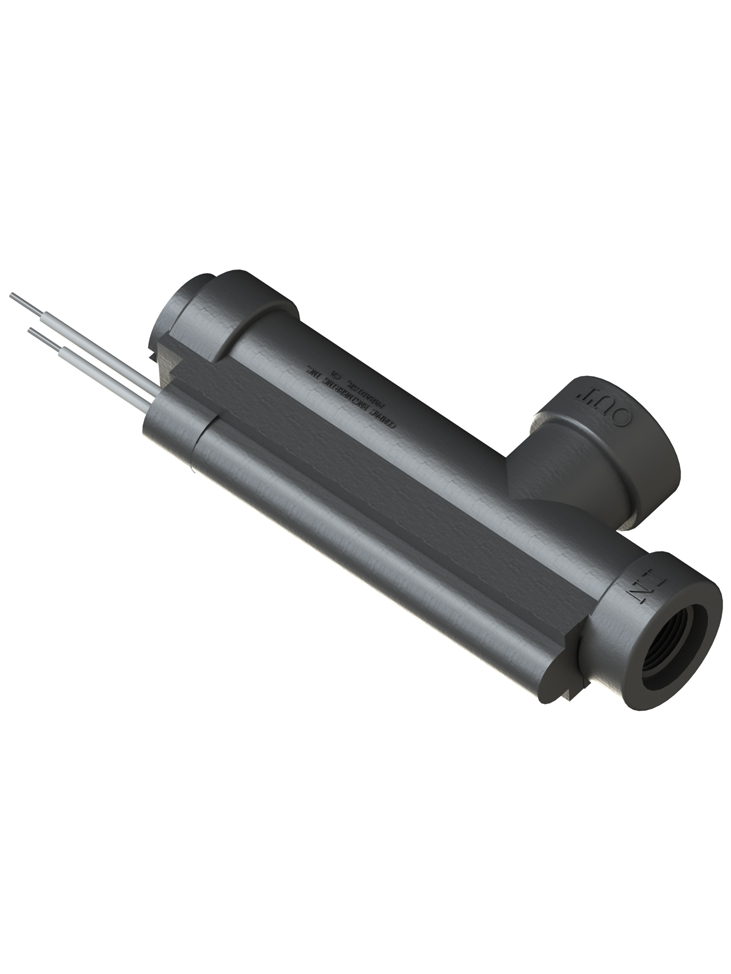

2Burner flow interlock
Model 5-20-PP piston-type magnetic reed flow switch in polypropylene
5-20-PP No flow, no flame. Piston and reed, set points 0.01–1.0 GPM, preset at manufacture. POLYPROPYLENE
3Detergent low level
Model 10-101-KR vertical float level switch in Kynar PVDF
10-101-KR Tells the operator before the chemical runs out mid-job. Kynar for the aggressive end. KYNAR PVDF
4Coil outlet temperature
Series 11 bimetallic disc temperature switch
11-800 Bimetallic disc with a 120-second thermal lag. Factory set point, no controller. POLYPROPYLENE

The ERECTA SWITCH Family

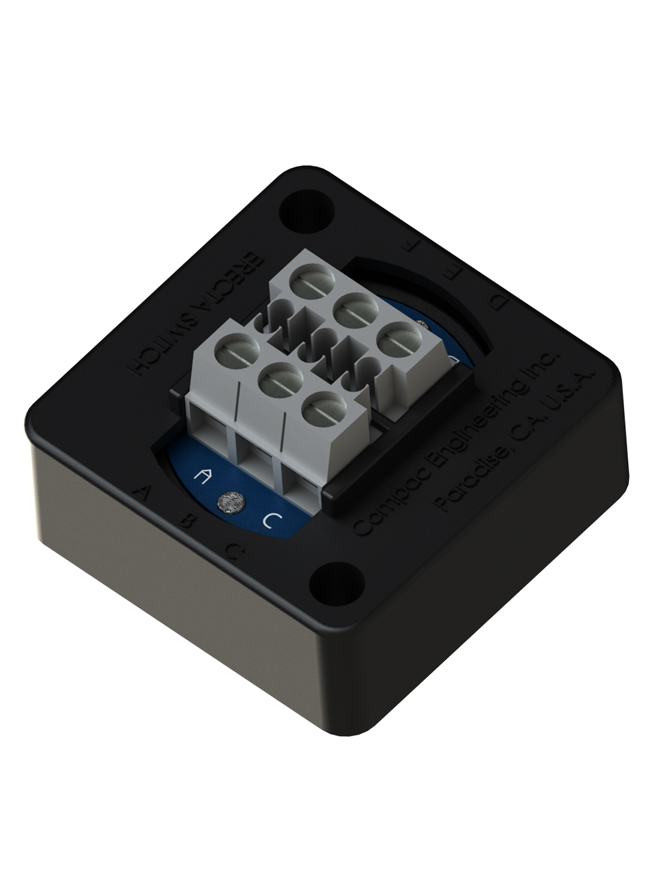

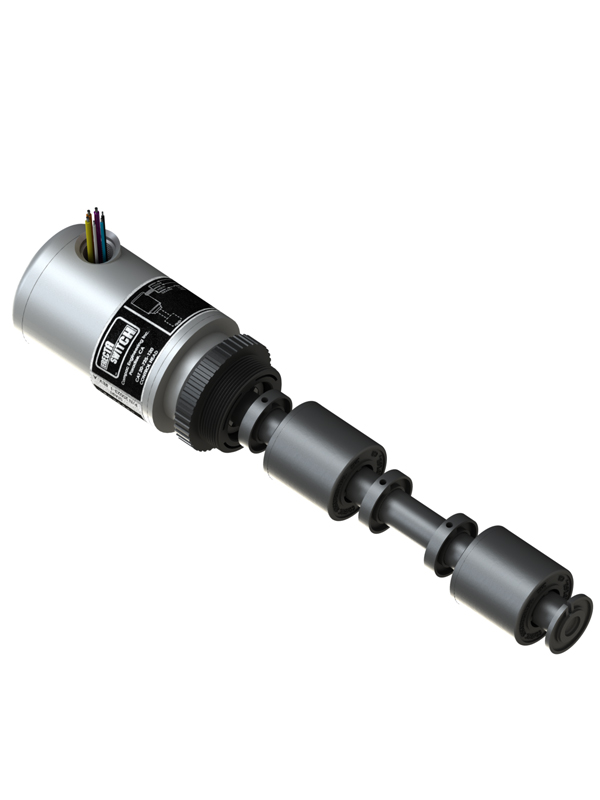

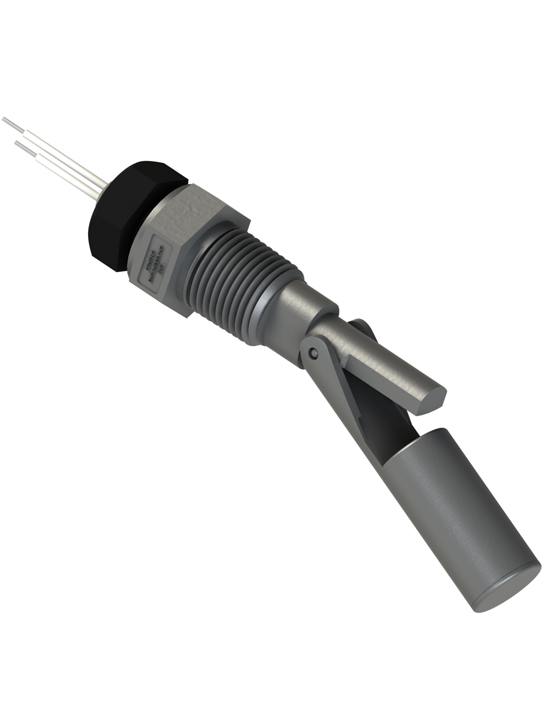

Six product series covering flow detection, liquid level sensing, temperature switching, and pump control. All built on the same modular platform.

Where we are designed in

Seven kinds of machine, one switch platform

01

Commercial laundry

Chemical dispensing, supply-tank level, pump protection.

02

HVAC & chillers

Glycol loop level, flow proving, return-line cutoff.

03

Water treatment

RO storage, resin tanks, low-level lockout.

04

Hydraulic power units

Reservoir level, over-temperature, dry-run.

05

Chemical metering

Day-tank level in Kynar, overfill alarm.

06

Pressure washers

Float tank, burner interlock, detergent level.

07

Sealed reservoirs

Bulkhead and flanged mounts with no service access.

The same four duties, a different machine

Change the equipment and the positions move. The platform does not.

Commercial laundryDrum-empty alarm and dispense proving, both in Kynar PVDF — detergent and sour are the aggressive end of the chemistry.
Hydraulic power unitsReservoir low level and return-line over-temperature, in acetal for dimensional stability in oil.
From our own catalogue
“10s are being used in many ways that touch your everyday life. How about soft drink dispensers, RO water dispensers, ice cream machines, food warmers, coffee makers, chemical etching machines, film processors, poultry feeders, copy machines, dishwashers, equipment lubricators, fuel tanks…”
ERECTA SWITCH SERIES 10 — PRODUCT CATALOGUE

Four design decisions you can see in the part

Not “modular” and “chemical resistant”. The specific things that make a float switch still work in year six.

01A square stem, not a round one

The stem cross-section is square, so wherever the float touches it the contact area is as small as possible. The float rides on knife edges — the lowest friction we can build, in the one failure mode that strands a machine: a stuck float.

02Smooth, hollow floats

Easiest to keep clean and free of bacteria, which is why these go into potable water and beverage equipment and not only industrial tanks.

03Stress relief at the reed leadwire

A glass reed switch breaks from installation stress, not from service life. There is a relief member at the leadwire connection specifically to isolate it.

04Set points fixed at manufacture

Nothing on your assembly line needs calibrating and nothing drifts in the field. Flow set points from 0.01 to 1.0 GPM are stocked.

Why a buyer signs it off

The part is easy. Staying a supplier is the hard part.

Four things an equipment builder needs from a component vendor, and what we do about each.

A standing ship day

We ship every Wednesday. A planner can build a schedule on that rather than chase a promise date.

Set points in stock

Flow set points from 0.01 to 1.0 GPM are stocked, so your build is not waiting on a special.

One geometry, three chemistries

Changing media does not mean requalifying a different product — the same part family in PP, AC or KR.

Made where we answer the phone

Machined, assembled and tested in Paradise, California. No minimums on standard orders.

Request a free sample Get a custom quote

Or call an application engineer on 1-800-828-9044.
