Side-mount level switch with rain-tight low profile receptacle. 360° nipple rotation for wire exit angle positioning. Installs from outside. Hermetically sealed reed switch, N.O. or N.C. by orientation. Kynar PVDF construction handles aggressive acids, halogens, oxidizers, and ultra-high-purity process fluids.
| Quantity | Unit Price |
|---|---|
| 1–9 | $175.44 |
| 10–24 | $155.72 |
| 25–49 | $139.10 |
| 49–99 | $125.40 |
| 100–999 | $69.95 |

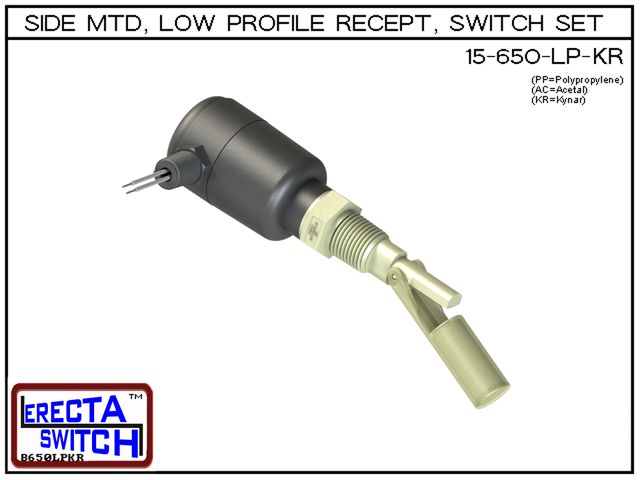

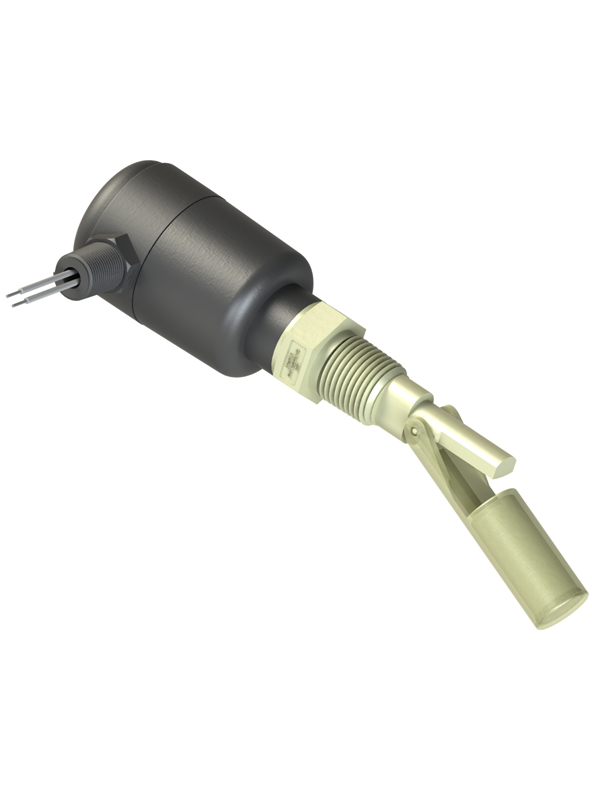

The 15-650-LP-KR is the low profile receptacle version of the Series 15 side-mount switch in Kynar PVDF — featuring a rain-tight low profile receptacle with 360° nipple rotation for flexible wire exit angle positioning. Installs from outside the tank wall. Kynar PVDF wetted parts for aggressive acids, halogens, oxidizers, and ultra-high-purity process fluids.
| Specification | Value |
|---|---|
| Series | 15-650-LP |
| Switch Element | Standex/OKI ORD229, hermetically sealed reed |
| Housing | Low profile receptacle, rain-tight, 360° nipple rotation |
| Contact Rating | 70 VA, 50W resistive |
| Max Current | 0.5A AC / 0.7A DC |
| Mount | 1/2 NPT outside-in OR 1/4" straight thread inside-out |
| Float Diameter | 0.70 in (17.78 mm) |
| Overall Length | 4.45 in (113.03 mm) |
| Lead Wire | 24 in (609 mm) |
| Pressure Rating | 50 PSI @ 20°C; derate to zero @ 90°C |
| Temp Max | 90°C |
| SG Min | 0.80 |
| Compliance | RoHS |
| Material | Kynar PVDF |
A float level switch like the 15-650-LP-KR is a point-level device: a float rides the liquid and actuates a magnetic reed switch at a set height, giving a simple on/off signal — no power, no firmware, no calibration. "Sensors" usually means continuous measurement (ultrasonic, radar, capacitive). ERECTA SWITCH targets reliable discrete-point control.
The 15-650-LP-KR is used for pump start/stop control, high-level overflow protection, low-level dry-run protection, and tank or reservoir level alarms in OEM equipment. The modular ERECTA SWITCH system is built into laundry, HVAC, water-treatment, hydraulic, and chemical-handling machinery.
Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.
The 15-650-LP-KR is point-level — it provides a discrete on/off signal at a set height. For multiple switch points, use a multi-level extended-stem set (2-, 3-, or 4-level) instead of a single continuous sensor.
ERECTA SWITCH offers vertical top-mount, bulkhead, and extended-stem configurations, plus side-mounted single-point models. The mount style is part of the model number — select the configuration that matches your tank geometry.
Point detection is repeatable and mechanical. The trip height on the 15-650-LP-KR is set by the 10-715 Precision Nipple, ordered separately in 1-inch increments (1″–70″), so you place the switch point exactly where the application needs it.
Our engineering team can verify compatibility with your application and chemistry before you order.
