What is the ERECTA SWITCH modular system?

ERECTA SWITCH is Compac Engineering's building-block sensor platform. Every Series 10 configuration starts with the same 10-782 switching element. Mounting hardware, housing types, stem length, and turbulence protection are added as modular components — allowing design engineers to create virtually unlimited sensor configurations from standard stock parts without custom fabrication.

What materials are Series 10 level switches available in?

All Series 10 level switches are available in three chemically-resistant thermoplastics: Polypropylene (PP) for water, soaps, and light chemicals; Acetal (AC) for petroleum-based fluids including gasoline, diesel, and hydraulic oil; and PVDF Kynar (KR) for aggressive acids, caustics, oxidizers, and high-purity process fluids.

Can I reverse the switch action in the field?

Yes. The float is field-reversible on all Series 10 switches. The product ships in normally closed (NC) configuration — legend toward retaining ring, switch opens on rise. To reverse to normally open (NO), remove the float and retaining ring, flip the float so magnets face up, and reassemble. No tools required, no separate part numbers for different contact forms.

What is the minimum order quantity?

There is no minimum order. Series 10 products are available in 1-pack and 10-pack configurations with tiered pricing. Volume OEM pricing is available for quantities above published tiers — contact us for a quote.

How do multi-level extended stem sets work?

Extended stem sets use 10-715 precision nipples to space multiple 10-782 switching elements along a single vertical stem. The nipple length determines the switching depth for each level. Two, three, and four-level configurations are available. Precision nipples are sold separately — one required per level — allowing the engineer to set exact switching points for their application.

ERECTA SWITCH® | Series 10 Float Level Switches

Modular Float Level Sensing
for Every OEM Application

Q: How does an ERECTA SWITCH float level switch work?

Series 10 level switches use a magnet embedded in a hollow plastic float that travels along a fixed stem in response to rising or falling liquid level. As the float nears the hermetically sealed reed switch in the stem, the magnetic field actuates the switch contacts without any physical contact. This non-contact actuation eliminates wear and provides reliable operation across 100 million+ cycles.

Eight subcategory configurations — from bare 1/8″ NPT switch to four-level extended stem sets. Three chemical-resistant materials. One building-block system that adapts to your tank geometry, chemistry, and wiring requirements without custom fabrication.

Subcategories

58+

Model Numbers

Materials

100M+

Rated Cycles

Browse by Configuration

Series 10 Subcategories

Every Series 10 configuration starts with the same 10-782 switching element. Select the subcategory that matches your mounting geometry and installation requirements.

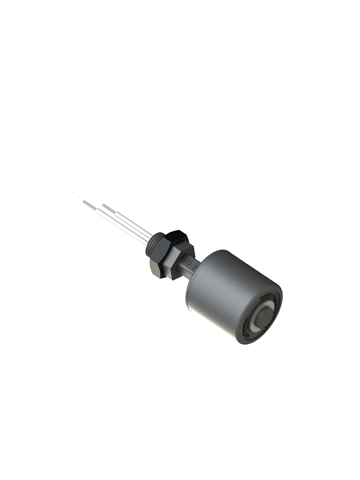

Vertical Mounted — Single Point

Bare switch, bulkhead, receptacle, 2″ bung adapter, and still-well configurations. Direct vertical tank installation in five mounting arrangements.

10-782 · 10-792 · 10-793-R · 10-794-R · 10-795

5 Models · PP · AC · KR

Browse Vertical Mounted →

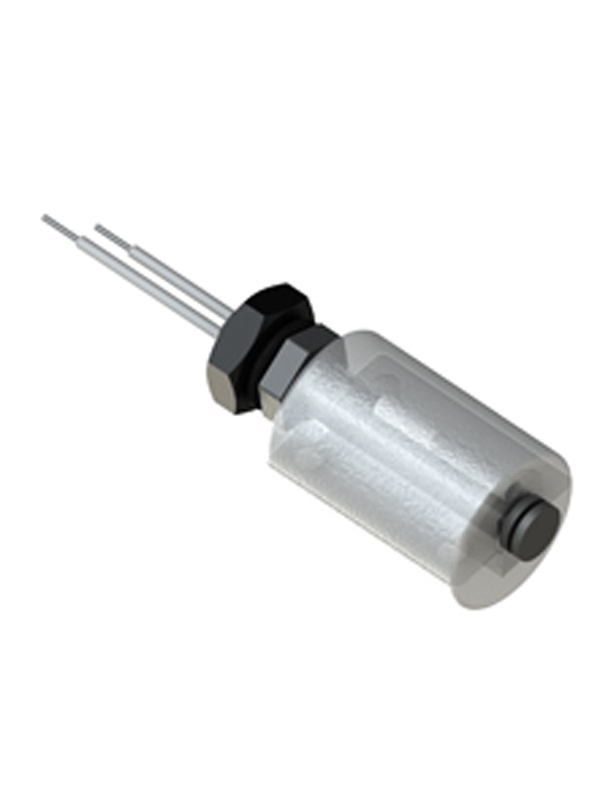

Side Mounted — Single Point

Split-float switches that mount horizontally through the tank wall. Ideal for horizontal tanks, tight-clearance applications, and installations without vertical access.

10-785 · 10-787 · 10-786 · 10-786-R · 10-788

5 Models · PP

Browse Side Mounted →

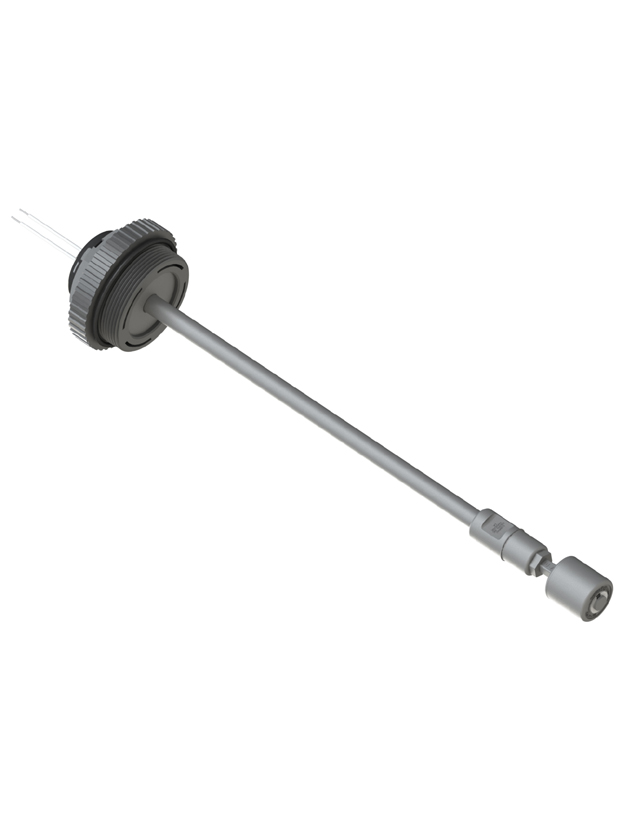

10-103 One Level Extended Stem Switch Set

One Level — Extended Stem Sets

Single switching point at a precise depth below the mounting surface, set by a 10-715 precision nipple. 1-1/4″ NPT, 2″ adapter, flange nut, and pop-in mounts.

10-101 through 10-108 · SS variants

16 Models · PP · AC · KR

Browse One Level Sets →

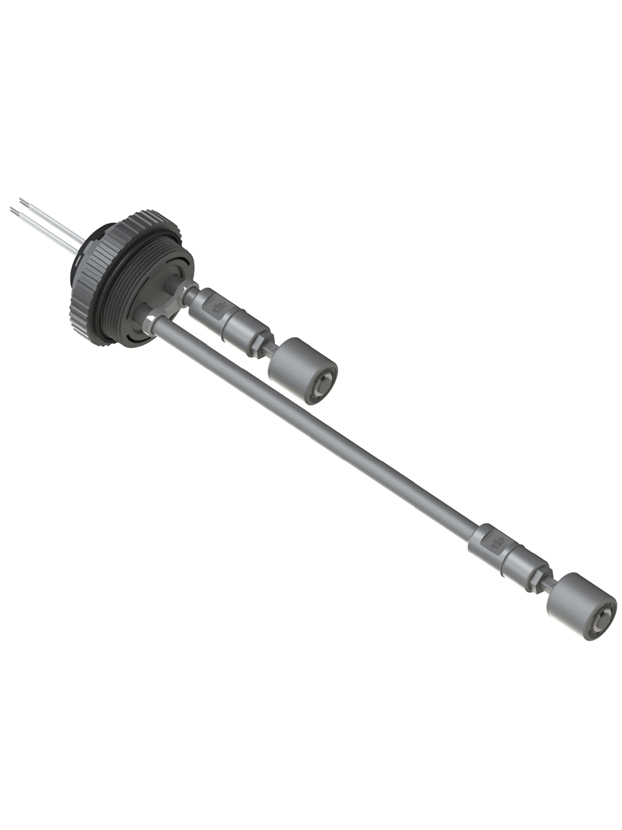

10-203 Two Level Extended Stem Switch Set

Two Level — Extended Stem Sets

Monitor high and low levels simultaneously with two independent switching points on a single stem. Receptacle and relay housing configurations.

10-202 through 10-208 · SS variants

12 Models · PP · AC · KR 🌡 Temp Sensing Available

Browse Two Level Sets →

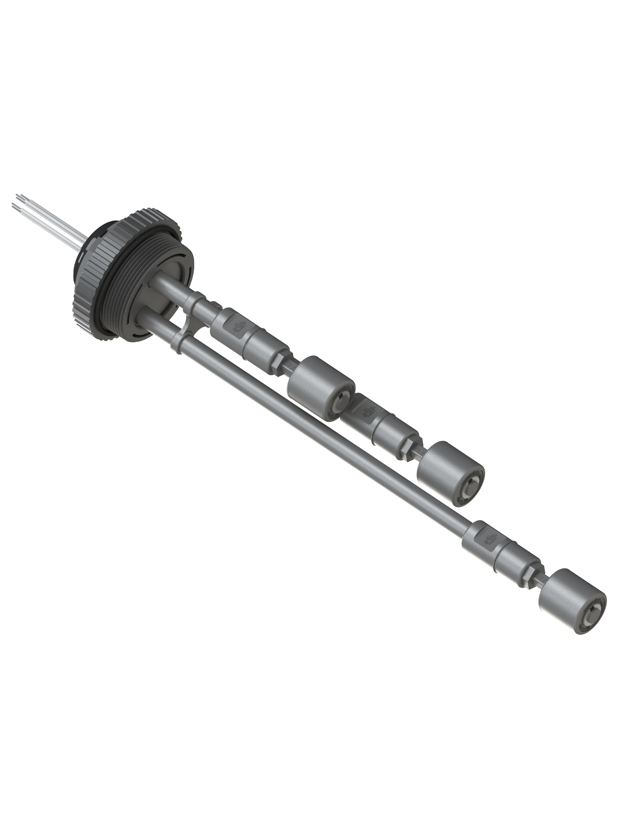

10-303 Three Level Extended Stem Switch Set

Three Level — Extended Stem Sets

Three independent switching points on a single stem for complex fill, alarm, and pump control logic. All four mounting styles available.

10-303 through 10-308 · SS variants

10 Models · PP · AC · KR 🌡 Temp Sensing Available

Browse Three Level Sets →

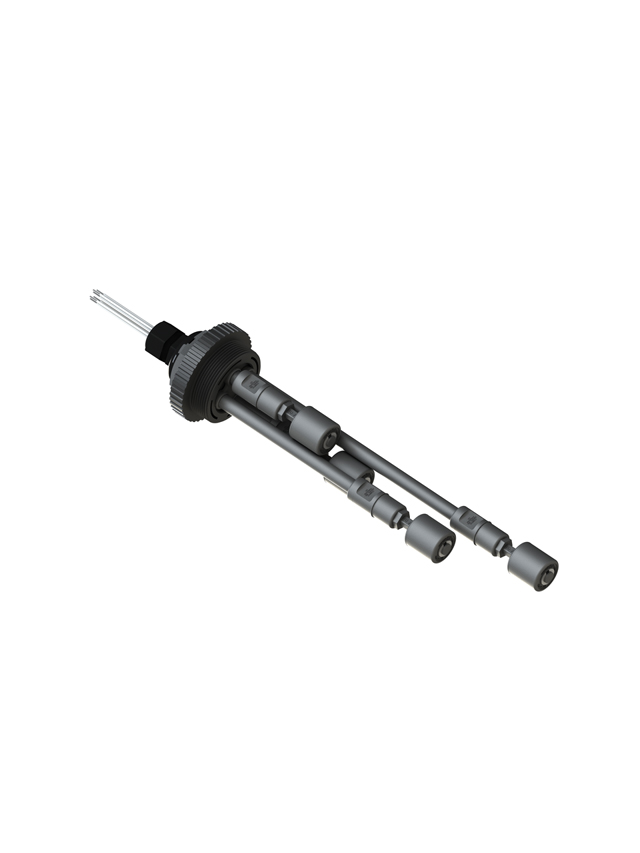

10-403 Four Level Extended Stem Switch Set

Four Level — Extended Stem Sets

Maximum switching density — four independent points on one stem. The complete solution for applications requiring full-range tank level management.

10-403 · 10-404 · 10-406 · 10-407 · 10-408

5 Models · PP · AC · KR 🌡 Temp Sensing Available

Browse Four Level Sets →

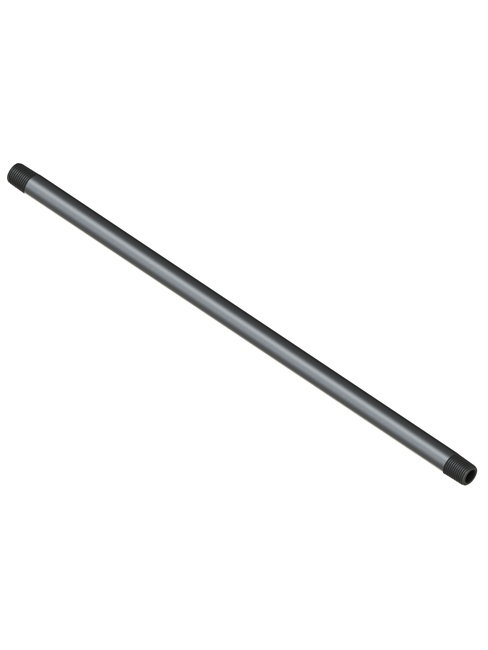

10-715 Precision Nipple for Extended Stem Level Switches

Precision Nipples (10-715)

Required accessory for all extended stem sets. Precision-machined nipples in 1″ increments from 1″ to 70″ set the exact switching depth for each level position.

10-715 Series · 1–70″

One required per level

Browse Precision Nipples →

Series 10 Components

Replacement Parts, Accessories & Field Service Components

Individual components for field repairs, custom configurations, and OEM fabrication. Every ERECTA SWITCH part is available separately — replace a single float, add a slosh shield, or build a completely custom sensor assembly from stock components.

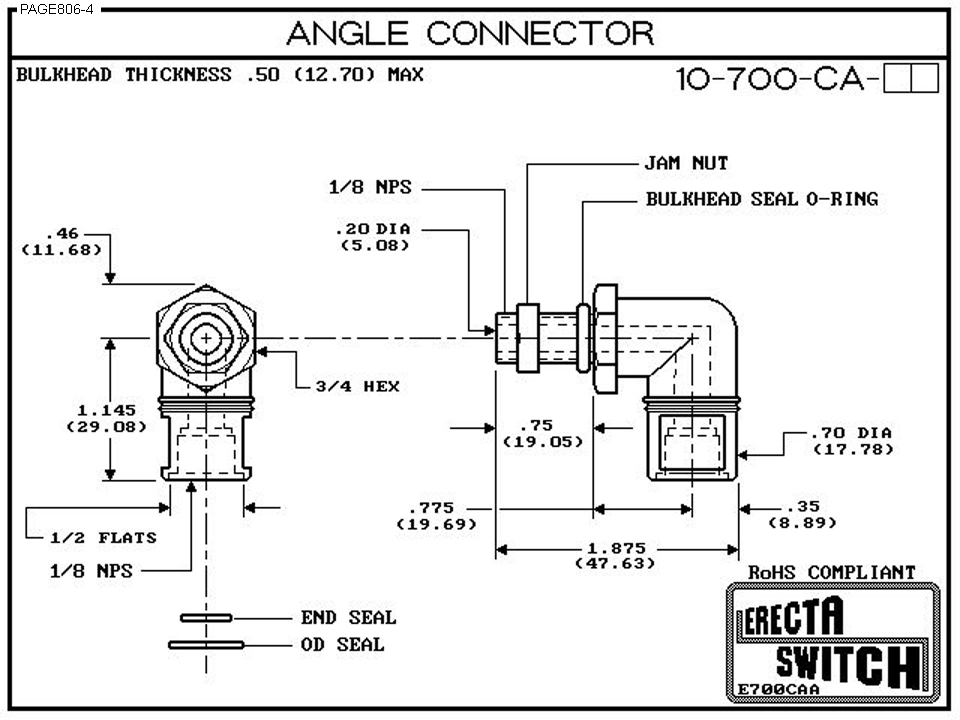

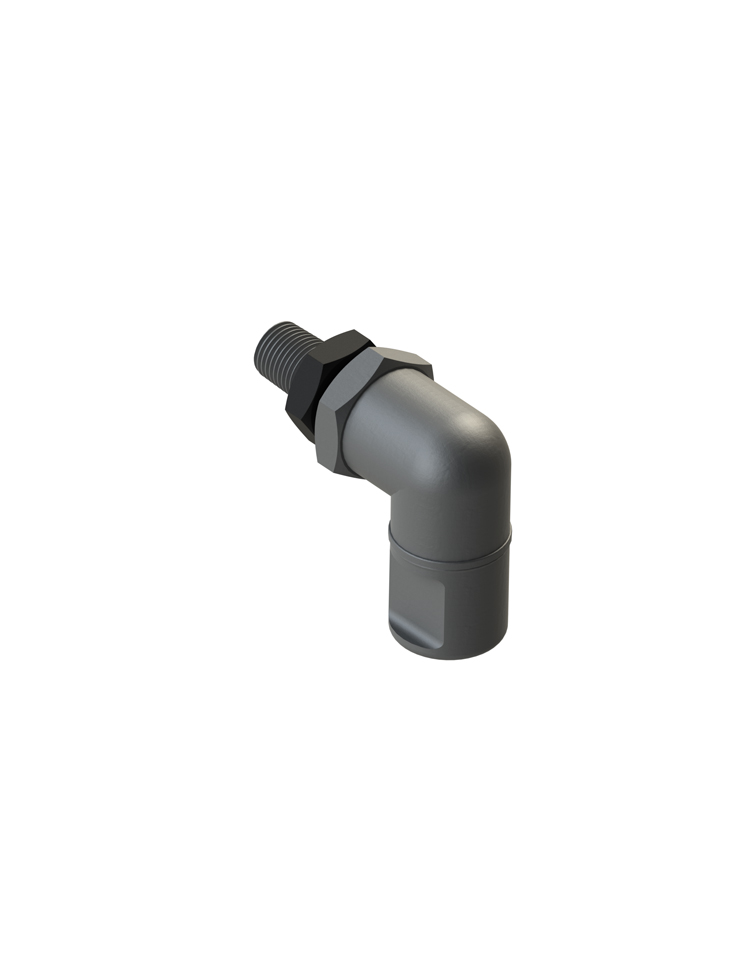

Plastic Fittings

Angle connectors, fitting brackets, strain relief connectors, and bulkhead fittings for tank wall penetrations and wire routing.

10-700-CA · FB · WC · 10-701-BH · 10-702-BH · 10-703-BH

6 Models · PP · AC · KR

Browse Plastic Fittings →

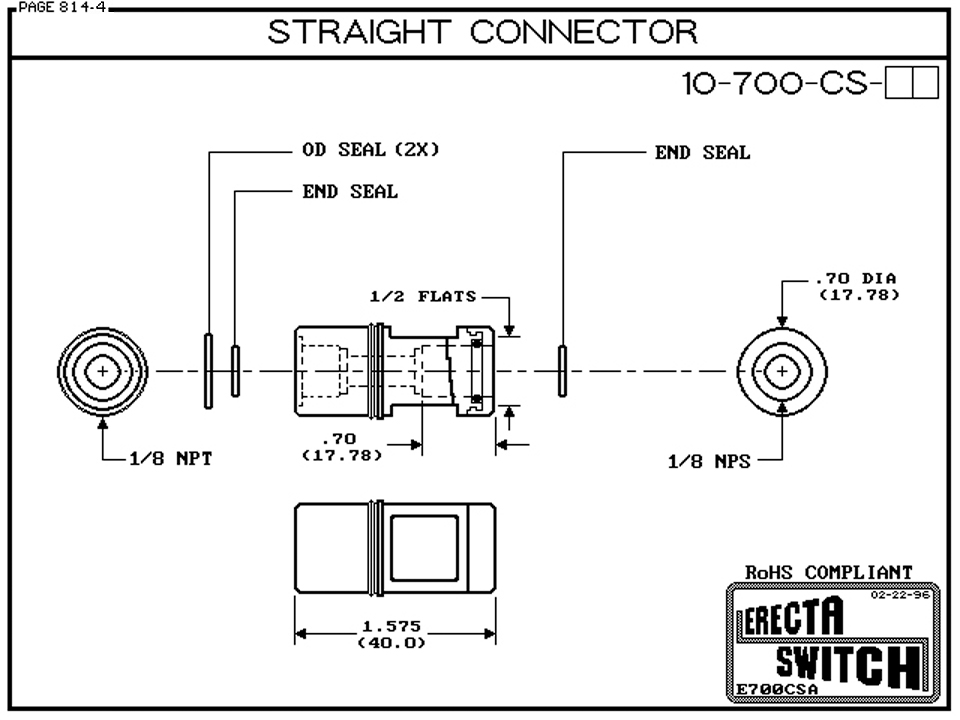

Extension Hardware

Straight connectors, coupling sleeves, and slosh shields. Essential components for extended stem assemblies and turbulence protection.

10-700-CS · 10-700-SS

PP · AC · KR · 1-Pack & 10-Pack

Browse Extension Hardware →

Level Switch Floats

Replacement and accessory floats. Standard 1″ hollow float for vertical mount switches and split float for side-mount configurations.

10-700-FT · 10-784

PP · AC · KR · 1-Pack & 10-Pack

Browse Floats →

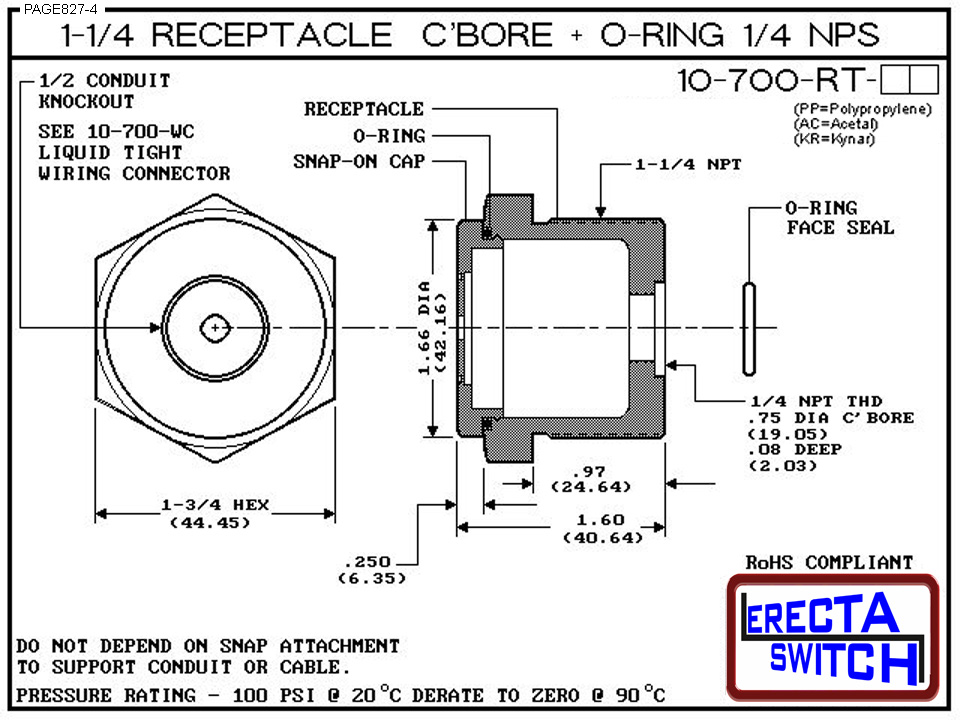

Wiring Enclosures

Threaded receptacles, blank caps, hex receptacles, and mid sections. Weather-tight enclosures for switch lead wire connections.

10-700-RT · RB · RM · MS

PP · AC · KR · 1-Pack & 10-Pack

Browse Wiring Enclosures →

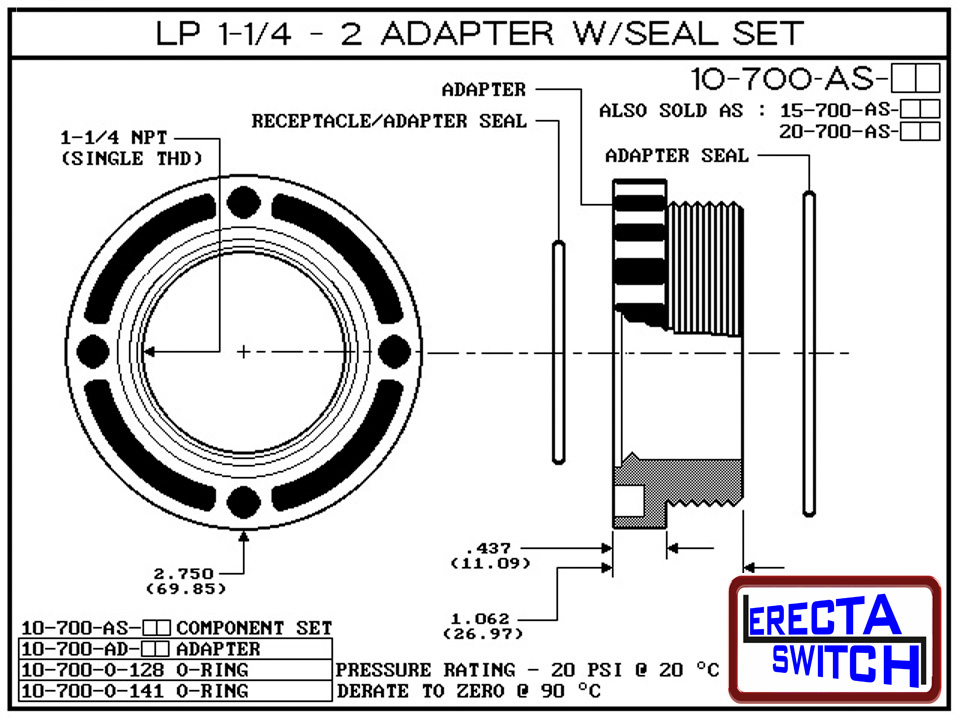

Adapters

Thread adapters and flange nut sets. Convert between 1-1/4 NPS and 2 NPS tank openings. Complete sealing hardware included.

10-700-AS · FN · FS

PP · AC · KR · 1-Pack & 10-Pack

Browse Adapters →

Spacers, Nuts & O-Rings

Stem spacers, lock nuts, retaining rings, and O-ring seals. Precision spacing and retention components for multi-level assemblies.

10-700-S2 · S3 · S4 · SP · N4 · N8 · RR · O-Rings

PP · AC · KR

Browse Spacers & Nuts →

ERECTA SWITCH modular assembly — three-level extended stem configuration

The ERECTA SWITCH Concept

Build Any Configuration From Stock Parts

Inspired by the Erector Set building-block principle, ERECTA SWITCH uses snap-and-screw-together plastic components to create virtually unlimited sensor configurations from a common parts inventory. Every Series 10 assembly — from a bare 1/8″ NPT switch to a four-level extended stem set with slosh shields — is built from the same 10-782 switching element core.

✓ 10-782 switching element — the universal core inside every Series 10 assembly. Field-replaceable in any configuration.
✓ 10-715 precision nipples — set exact switching depths from 1″ to 70″ without custom fabrication. One per level.
✓ Modular mounting hardware — bulkhead, receptacle, 2″ adapter, flange nut, and pop-in fittings interchangeable across all configurations.
✓ Temperature switching adder — substitute any level position with an 11-800 bimetallic temp switch. No additional tank penetration.

Read the ERECTA SWITCH White Paper →

Specifications

Common Ratings — All Series 10

All Series 10 configurations share the same core switching element ratings. Material selection affects chemical compatibility only.

1A · 100V

Electrical Rating AC/DC

70 VA

Resistive Load Rating

100 PSI

Max Pressure @ 20°C

90°C

Max Temperature

0.8 SG

Minimum Specific Gravity

100M+

Rated Cycles (KOFU ORD229)

30°

Max Cant from Vertical

RoHS

Compliance

PP — Polypropylene

General Purpose · Gray Body

Water, soaps, coolants, dilute acids, and alkaline cleaning solutions. The standard specification for aqueous applications. Lowest cost per unit.

AC — Acetal

Hydrocarbons · Red Body

Gasoline, diesel, hydraulic oil, motor oil, kerosene, and petroleum-based fluids. The correct specification when polypropylene is incompatible with the fluid chemistry.

KR — Kynar PVDF

Aggressive Chemicals · Natural Body

Concentrated acids, caustics, oxidizers, halogens, and high-purity process fluids. 250% margin premium over PP. The highest-performance and highest-margin Series 10 specification.

Common Questions

Series 10 FAQ

A magnet embedded in a hollow plastic float travels along a fixed stem as liquid level rises or falls. When the float nears the hermetically sealed reed switch in the stem, the magnetic field actuates the contacts without physical contact. No wear, no leakage path through the switching element, rated for 100 million+ cycles.

Yes. Remove the float and retaining ring, flip the float so the magnet legend faces up (normally open, opens on rise), and reassemble. The product ships in normally closed (NC) configuration. No tools, no separate part numbers for different contact forms.

The 10-715 precision nipple is a machined spacer that positions the switching element at a precise depth below the tank lid. Because the required depth varies by application and tank geometry, nipples are specified at order time in 1″ increments from 1″ to 70″. Extended stem sets require one nipple per level — the nipple length is the only variable the engineer sets, and it determines the exact switching point.

Yes — on two, three, and four-level extended stem sets, any level position can be substituted with a Series 11-800 bimetallic temperature switch. Same 1/8″ NPT thread, same nipple system, same mounting hardware. The temperature switch senses from freezing to 90°C across eight preset trip points in normally open or normally closed contact forms. See individual product pages for substitution pricing.

No minimum. Series 10 products are available as single units or in 10-packs with tiered pricing. OEM pricing for quantities above published tiers is available on request. All products ship Wednesdays from Paradise, California.

Start with mounting geometry: vertical or side-mounted? Then consider access: can you drill/tap an NPT thread, or do you need a smooth-hole bulkhead or 2″ bung drop-in? Then material: PP for water/aqueous, AC for hydrocarbons, KR for aggressive chemicals. Finally, level count: single-point or multi-level? If you're still unsure, call us at 1-800-828-9044 or request a free evaluation sample.
