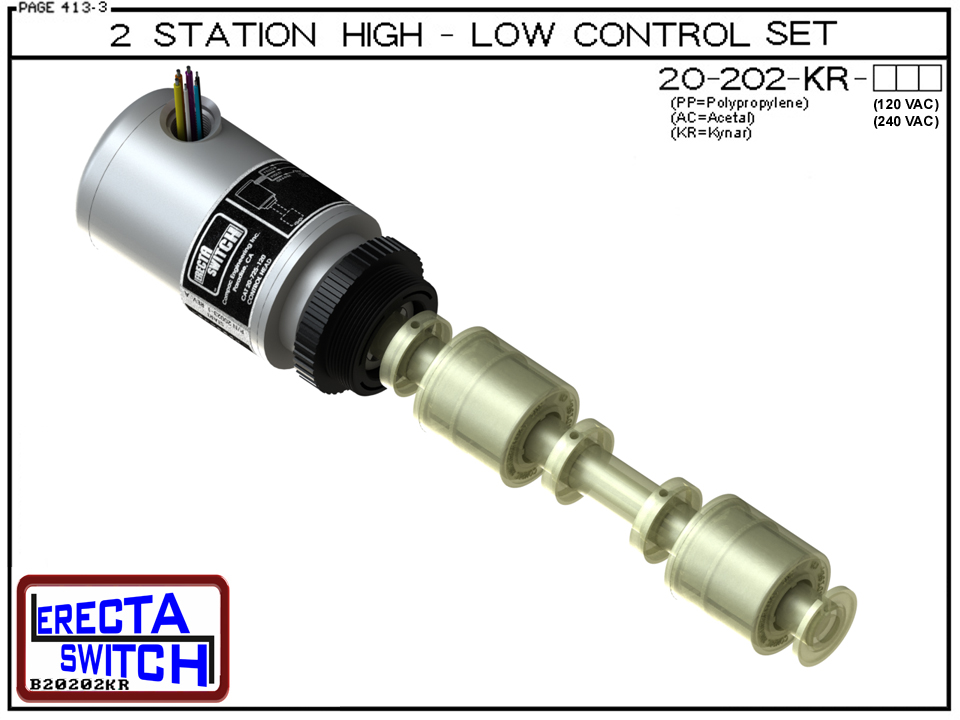

Complete pump control set: 20-725 control head + 20-726 stem set with float. Available in 120V and 240V configurations. Kynar PVDF construction handles aggressive acids, halogens, oxidizers, and ultra-high-purity process fluids.
| Quantity | Price |
|---|---|
| 1–2 | $812.13 |
| 3–4 | $769.92 |
| 5–9 | $740.53 |
| 10+ | $638.74 |

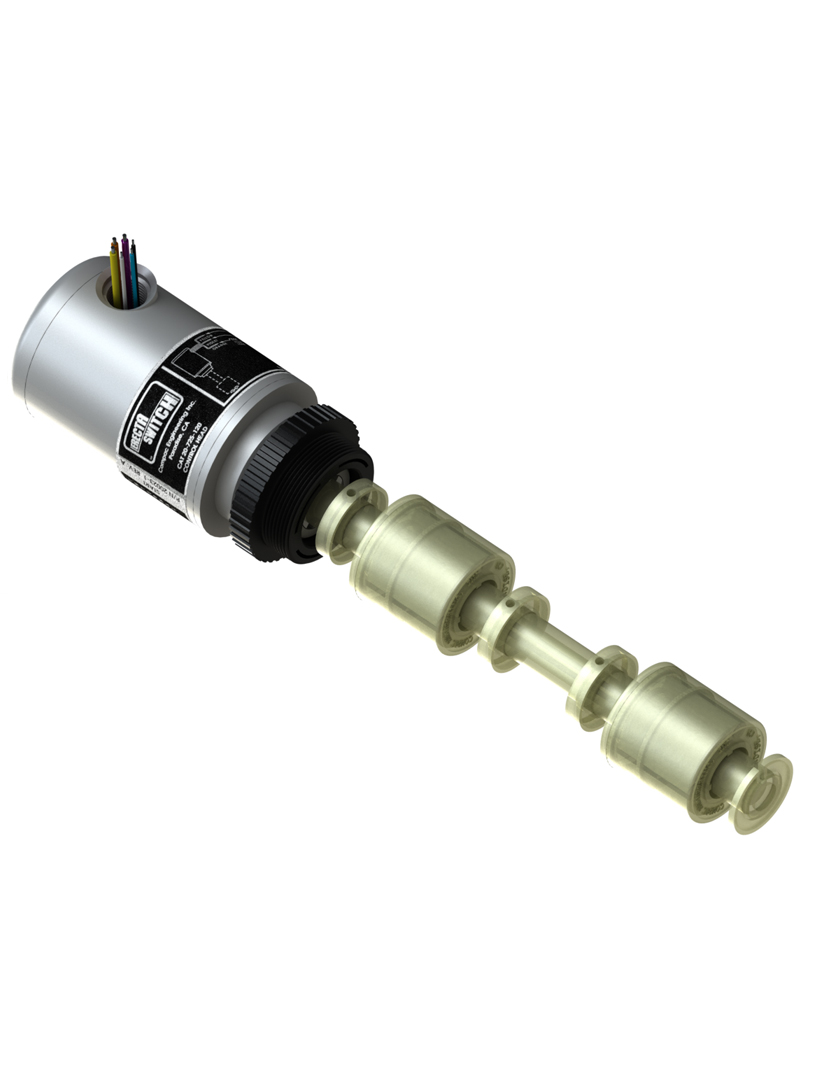

The 20-202-KR-120 is the complete pump control set in Kynar PVDF at 120V. For aggressive chemical service pump control with PVDF wetted parts and 120V relay.
| Specification | Value |
|---|---|
| Relay | 20A SPDT, factory sealed |
| Connection | 1-1/4 NPT |
| Conduit | 1/2 in |
| Enclosure | Rain-tight O-ring sealed ABS, fire retardant |
| Diameter | 3.0 in (76.2 mm) |
| Length | 5.85 in (148.59 mm) |
| Ambient Temp | 130°C max |
| Pressure | Atmospheric |
| Compliance | RoHS |
| Material | Kynar PVDF |
A float level switch like the 20-202 is a point-level device: a float rides the liquid and actuates a magnetic reed switch at a set height, giving a simple on/off signal — no power, no firmware, no calibration. "Sensors" usually means continuous measurement (ultrasonic, radar, capacitive). ERECTA SWITCH targets reliable discrete-point control.
The 20-202 is used for pump start/stop control, high-level overflow protection, low-level dry-run protection, and tank or reservoir level alarms in OEM equipment. The modular ERECTA SWITCH system is built into laundry, HVAC, water-treatment, hydraulic, and chemical-handling machinery.
Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.
The 20-202 is point-level — it provides a discrete on/off signal at a set height. For multiple switch points, use a multi-level extended-stem set (2-, 3-, or 4-level) instead of a single continuous sensor.
ERECTA SWITCH offers vertical top-mount, bulkhead, and extended-stem configurations, plus side-mounted single-point models. The mount style is part of the model number — select the configuration that matches your tank geometry.
Point detection is repeatable and mechanical. The trip height on the 20-202 is set by the 10-715 Precision Nipple, ordered separately in 1-inch increments (1″–70″), so you place the switch point exactly where the application needs it.
Our engineering team can verify compatibility with your application and chemistry before you order.
