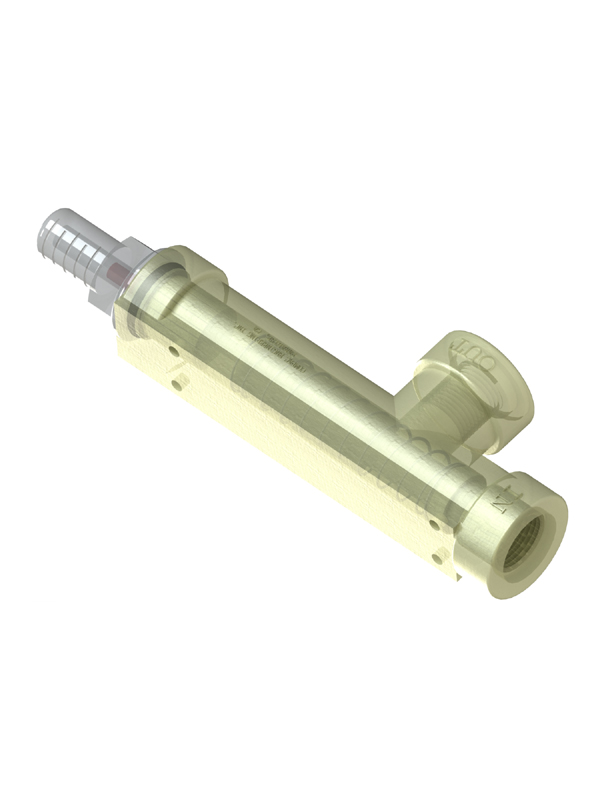

Visual-only flow indicator. No electrical output. Transparent polysulfone window shows poppet position to confirm flow presence. Kynar PVDF construction handles aggressive acids, halogens, oxidizers, and ultra-high-purity process fluids.
| Quantity | Price |
|---|---|
| 1–9 | $57.15 |
| 10–24 | $52.32 |
| 25–49 | $45.10 |
| 50–99 | $40.81 |
| 100–199 | $32.88 |
| 200+ | $26.87 |

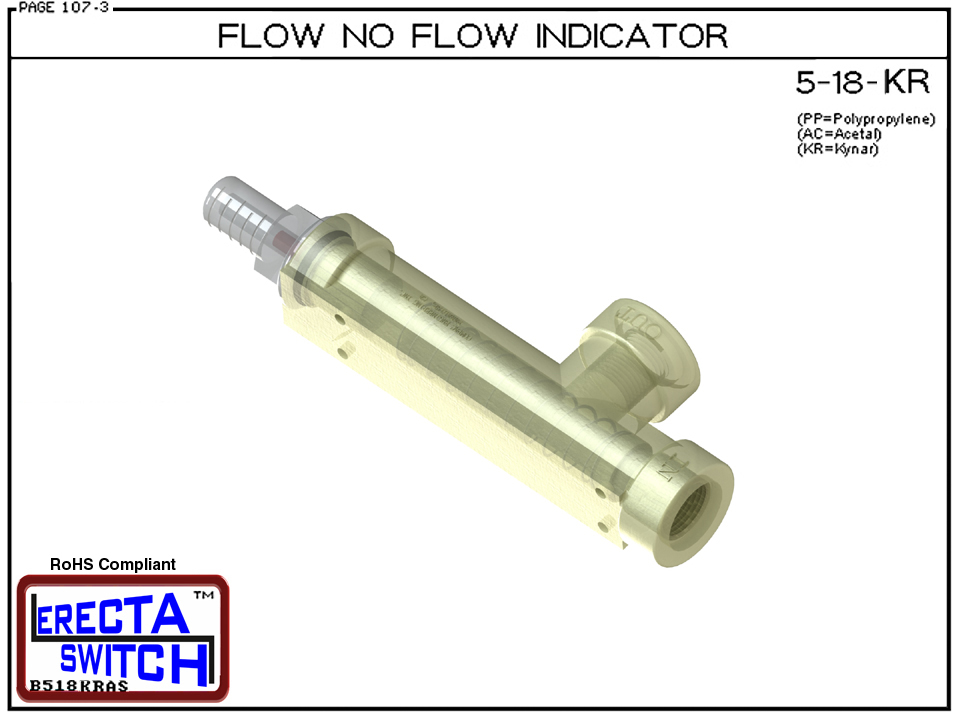

The 5-18-KR is the visual flow indicator in Kynar PVDF for aggressive chemical service.
| Specification | Value |
|---|---|
| Series | 5-18 |
| Type | Visual indicator only — no electrical output |
| Mechanism | Spring-loaded poppet (same as 5-20/5-21) |
| Body | Angle body |
| Overall Length | 4.6 in (116.8 mm) |
| Ports | 3× 9/16-18 UNF |
| Materials | Kynar PVDF |
| Compliance | RoHS |
The 5-18-KR is used for pump start/stop control, high-level overflow protection, low-level dry-run protection, and tank or reservoir level alarms in OEM equipment. The modular ERECTA SWITCH system is built into laundry, HVAC, water-treatment, hydraulic, and chemical-handling machinery.
Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.
The 5-18-KR uses a magnetic reed switch wired in series with your relay or controller. Contact rating is 70 VA / 50 W resistive (UL File E70063). The switch ships with lead wires — connect directly to your control circuit.
No. The 5-18-KR is a mechanical float actuating a sealed reed switch — there is nothing to calibrate or power. This is a reliability advantage over electronic sensors that can drift over time.
Inspect that the float moves freely (check for debris or scaling), then test reed continuity with a multimeter. Because ERECTA SWITCH is modular, you replace only the individual component — switch, float, connector, or fitting — instead of the whole assembly.
Series 10 level switches are rated to 100 PSI; Series 5 flow switches to 200 PSI. Operating temperature depends on the housing material — Polypropylene, Acetal, and Kynar PVDF each have different thermal limits. Contact Compac engineering for your specific conditions.
Our engineering team can verify compatibility with your application and chemistry before you order.
