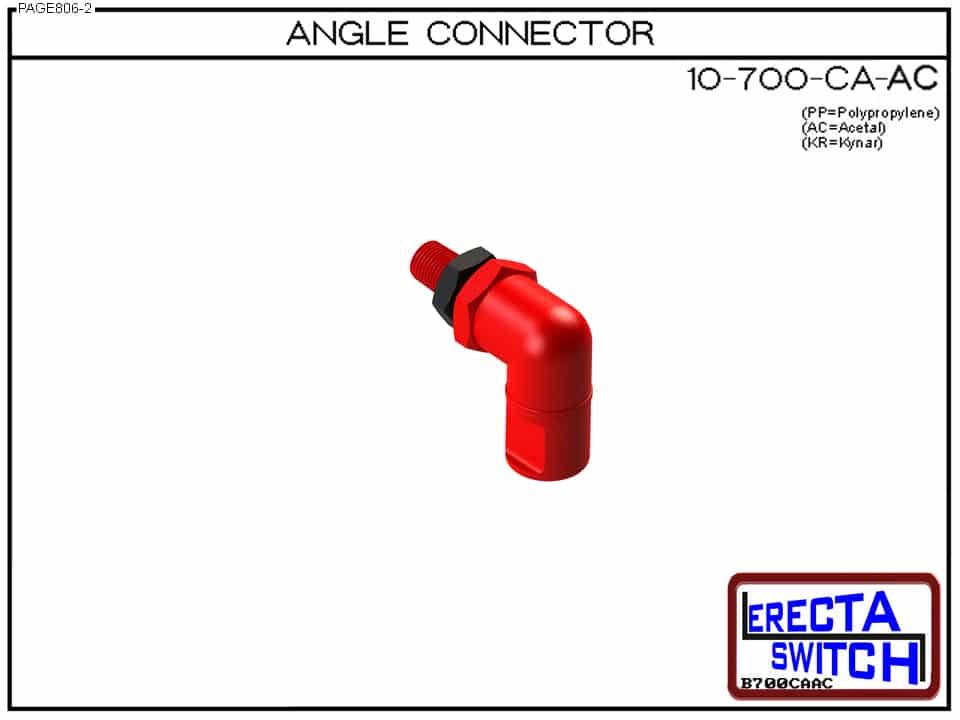

10-700-CA-AC Angle connector (Acetal)
$21.67

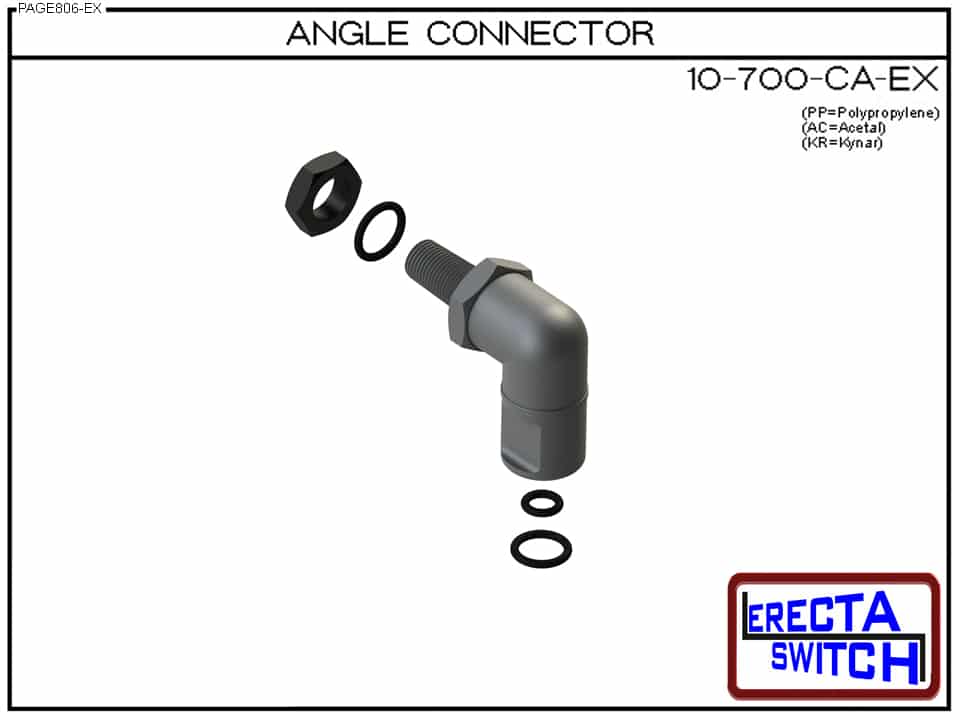

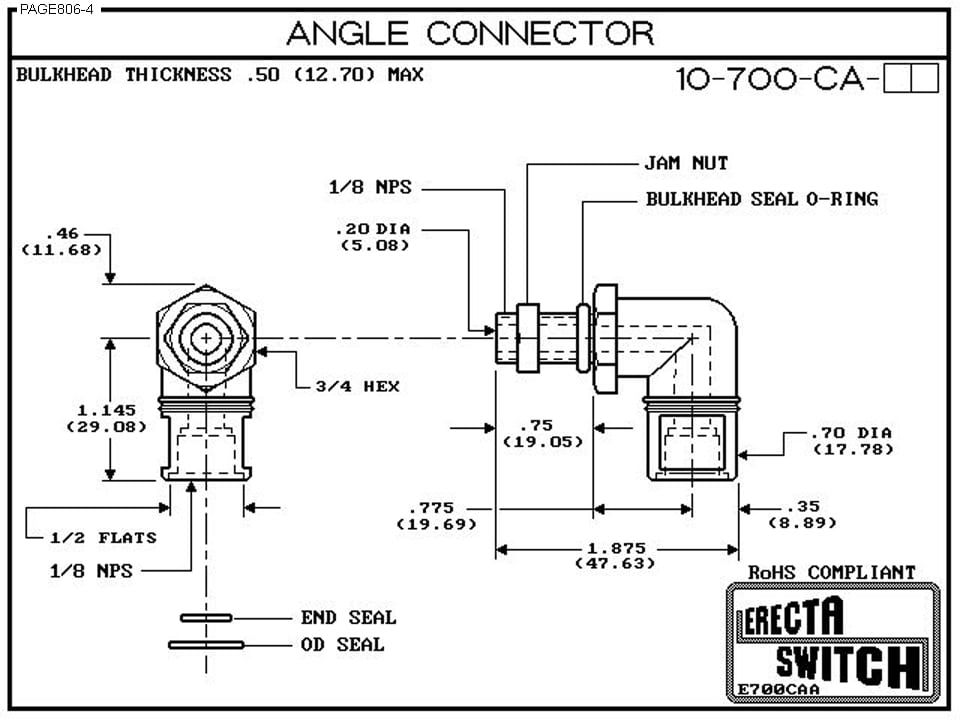

10-700-CA Angle connector is designed to convert our 10-782 small vertical level switch into a side mounted level switch. The 10-700-CA features 1/8” male npt threads with a jam nut and O ring for side wall mount and 1/8”female npt threads to connect either a mall vertical level switch comparable to our 10-782 or 1/8” threaded pipe to make 90 degree junctions.
Acetal Version is suitable for hydrocarbon applications such as gasoline, hydraulic oil, diesel fuel, and clean motor oil.
