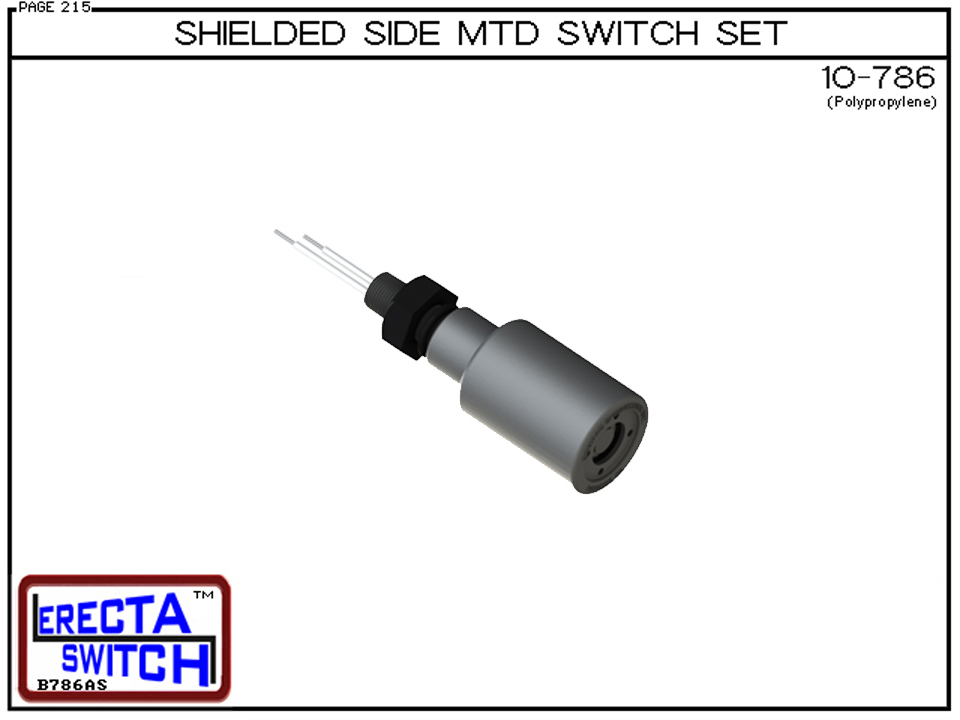

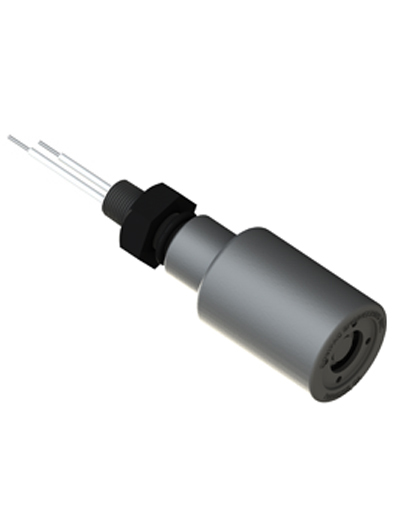

10-786-PP Side Mounted Level Switch with Slosh Shield — OEM 10 Pack (Polypropylene)

Name: 10-786-PP Side Mounted Level Switch with Slosh Shield — OEM 10 Pack (Polypropylene)
Brand: ERECTA SWITCH / Compac Engineering
SKU: 10-786-PP-10PK
Price: 202.03 USD
Availability: InStock

Turbulence-tolerant side mount for agitated tanks — 10-pack only.

In Stock — Ships Wednesdays In stock · Ships from Paradise, California

As low as

Call 1-800-828-9044 for pricing.

$202.03/unit at volume

1-2$262.64

3-9$236.37

10+$202.03

Qty

Add to Cart Request OEM Quote Free Evaluation Sample

Product Description

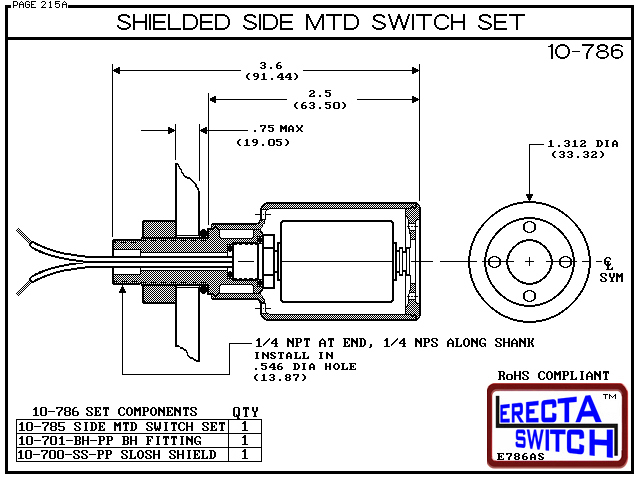

The 10-786-PP is a side-mounted polypropylene level switch engineered for tanks with turbulent fluid conditions, agitator wash, or periodic cleaning cycles that would otherwise trigger false switching. A 10-701-BH 1/4" NPT bulkhead mounts the horizontally oriented 10-782-PP stem, and a Compac slosh shield encloses the split-float travel zone — quieting turbulence, protecting the float from debris, and shielding the switch during high-pressure tank cleaning. Available exclusively in the OEM 10-Pack — ten complete assemblies per box, production-quantity pricing.

Key Features

Engineered specifications and field-service advantages — not marketing language.

Integrated slosh shield

Encloses the split-float travel zone — rejects turbulence, debris, and cleaning-spray interference that would false-switch an unshielded side-mount.

1/4" NPT bulkhead mount (10-701-BH)

Industrial-standard side-wall thread, polypropylene bulkhead fitting included.

Ten complete assemblies per pack

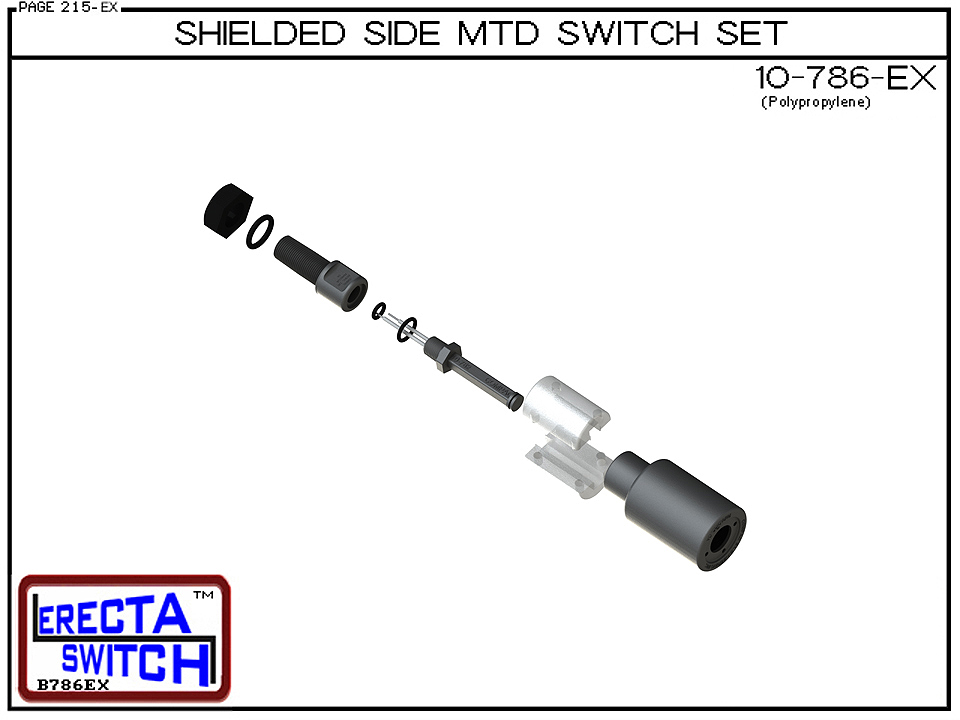

Production-run packaging — each unit includes stem, bulkhead, jam nut, split float, slosh shield, and 24" pigtail leads.

25% OEM volume discount

Pricing reflects production economics; single-unit purchases not offered in this configuration.

ERECTA SWITCH modularity

Slosh shield is an upgrade path from the 10-787 base — service and spec changes do not require new part numbers.

Applications

Specific installation scenarios that match the 10-786-PP configuration.

Commercial laundry wash-tank level monitoring where agitator turbulence would false-switch an exposed float
Plating line work tanks with full-surface spray bars or air agitation
Pressure-washer detergent tanks subjected to high-pressure cleaning cycles
Aqueous parts-washer sumps with mechanical agitation
Chemical mix tanks with impeller or eductor agitation near the side wall

Specifications

Model	10-786-PP
Wetted material	Polypropylene
Chemical compatibility	water, mild acids, caustics, detergents, and most aqueous solutions
Float operation	Horizontal (split float)
Mount thread	1/4" NPT via 10-701-BH bulkhead
Max temperature	180°F (82°C) continuous
Max pressure	100 PSI (6.9 bar)
Electrical rating	20 VA, 0.5A @ 120 VAC, 1.0A @ 24 VDC
Lead length	24" standard (72" available — contact factory)
Switch element	Hermetically sealed reed (10-782-PP)
Pack configuration	OEM 10-Pack
Country of manufacture	Paradise, California, USA

Frequently Asked Questions

Common Questions About This Product

What is the difference between a float level switch and a liquid level sensor?

A float level switch like the 10-786 is a point-level device: a float rides the liquid and actuates a magnetic reed switch at a set height, giving a simple on/off signal — no power, no firmware, no calibration. "Sensors" usually means continuous measurement (ultrasonic, radar, capacitive). ERECTA SWITCH targets reliable discrete-point control.

What are the typical applications for the 10-786?

The 10-786 is used for pump start/stop control, high-level overflow protection, low-level dry-run protection, and tank or reservoir level alarms in OEM equipment. The modular ERECTA SWITCH system is built into laundry, HVAC, water-treatment, hydraulic, and chemical-handling machinery.

What liquid chemistries is the 10-786 compatible with?

Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.

Is the 10-786 a point-level or continuous-level device?

The 10-786 is point-level — it provides a discrete on/off signal at a set height. For multiple switch points, use a multi-level extended-stem set (2-, 3-, or 4-level) instead of a single continuous sensor.

What mounting options are available for the 10-786?

ERECTA SWITCH offers vertical top-mount, bulkhead, and extended-stem configurations, plus side-mounted single-point models. The mount style is part of the model number — select the configuration that matches your tank geometry.

How is the actuation level set on the 10-786, and how accurate is it?

Point detection is repeatable and mechanical. The trip height on the 10-786 is set by the 10-715 Precision Nipple, ordered separately in 1-inch increments (1″–70″), so you place the switch point exactly where the application needs it.
