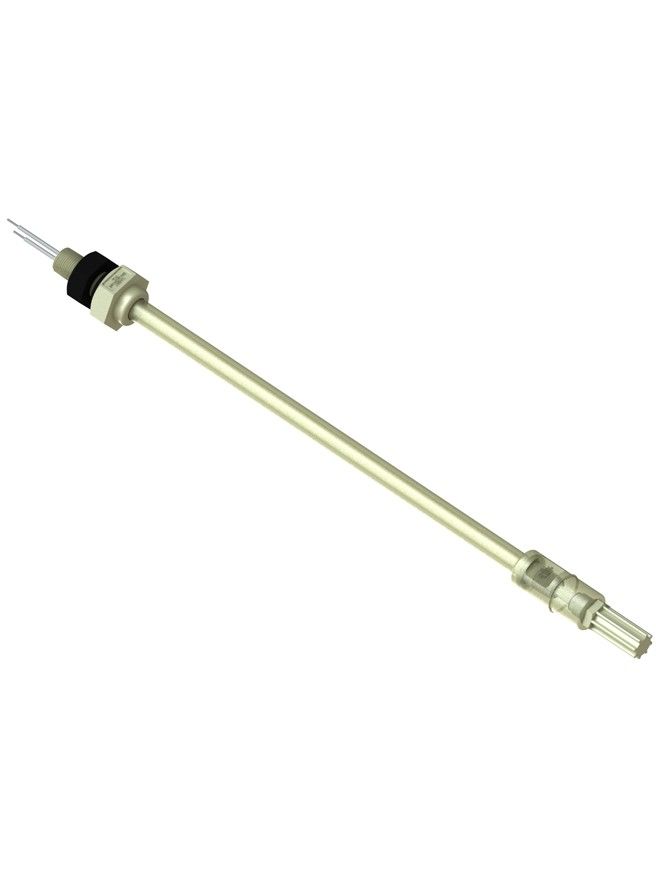

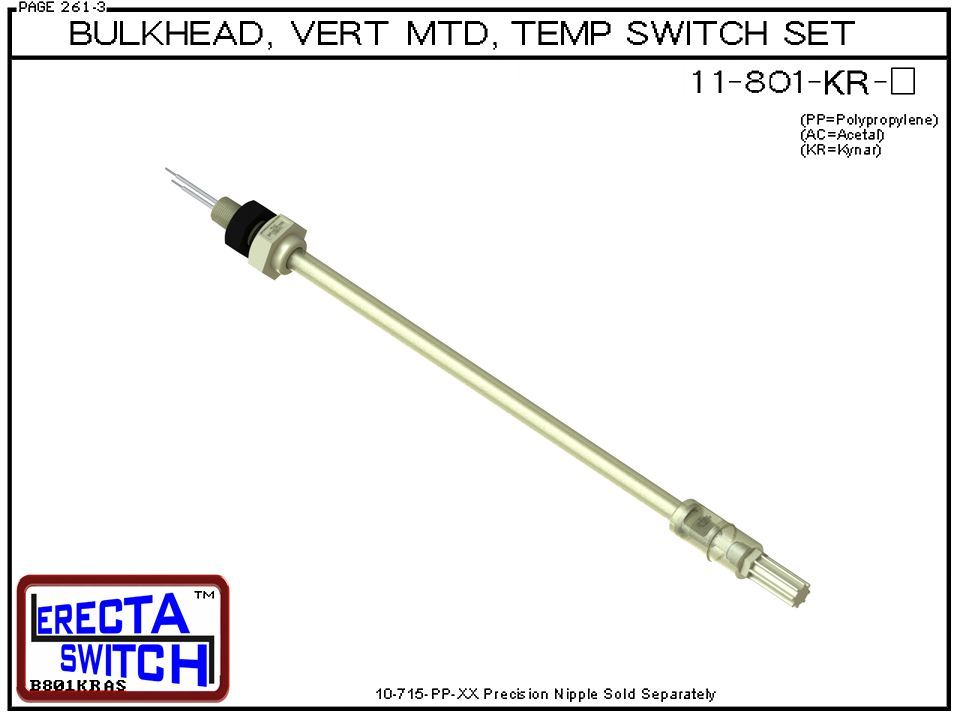

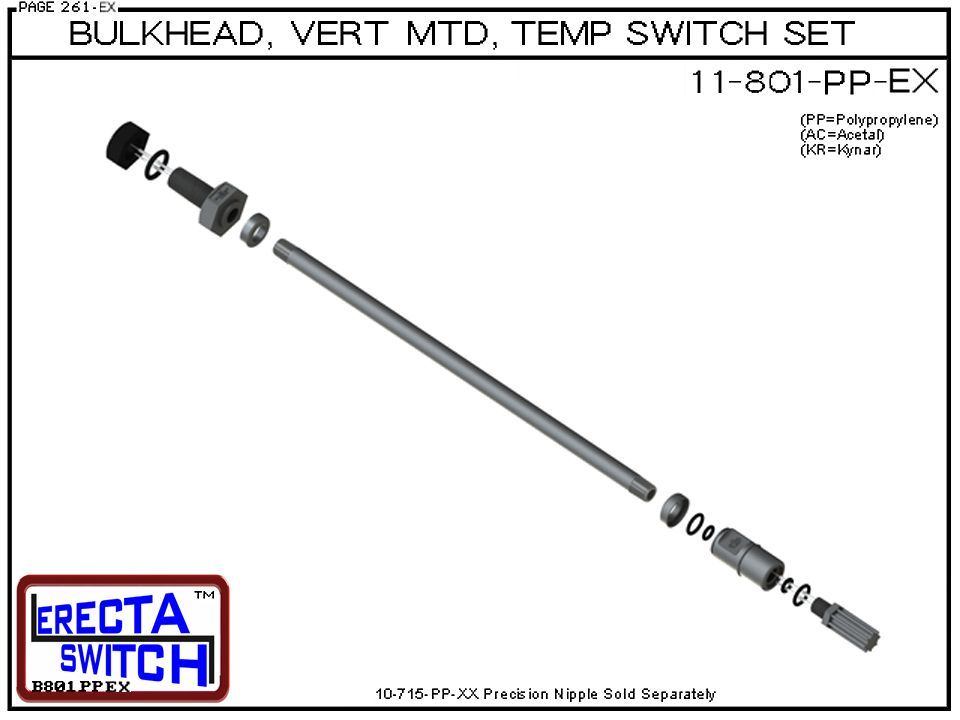

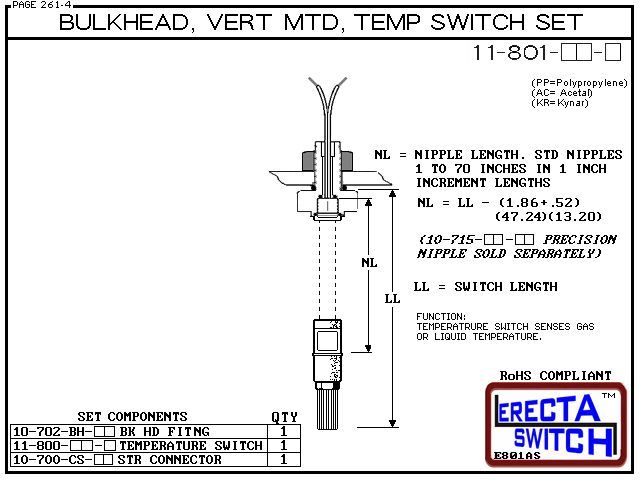

11-801-KR 1/4 Bulkhead Mounted Temperature Probe / Bi-Metallic Temperature Switch Set (PVDF Kynar). This temperature switch / temperature probe includes a 1/4 NPT Bulkhead fitting mount straight connector and 11-800 temperature switch. The temperature probe / Bi-Metallic temperature switch set is extended using 10-715 precision nipples (sold separately and available in 1 inch increments from 1″-70″).
11-800 Bi-Metallic temperature switch (switching element of this temperature probe / temperature switch set) are creep mechanisms (having no built in differential) and are characterized by slow make / slow break and rapid cycling capability.As a result, these Bi-Metallic temperature switches are suited for both control and limit applications. Also found under temperature sensor, temperature probe, and thermal switch.
The PVDF Kynar version of this Bi-Metallic temperature switch set is suitable for temperature sensing in harsh acids, caustics, chlorine and other highly corrosive chemical temperature sensor applications.
