5-20-LF-KR Low Flow Switch Set (PVDF Kynar)


9975 in stock

QuantityDiscounted Price
10 - 24$152.75
25 - 49$131.55
50 - 99$117.87
100 - 199$88.88

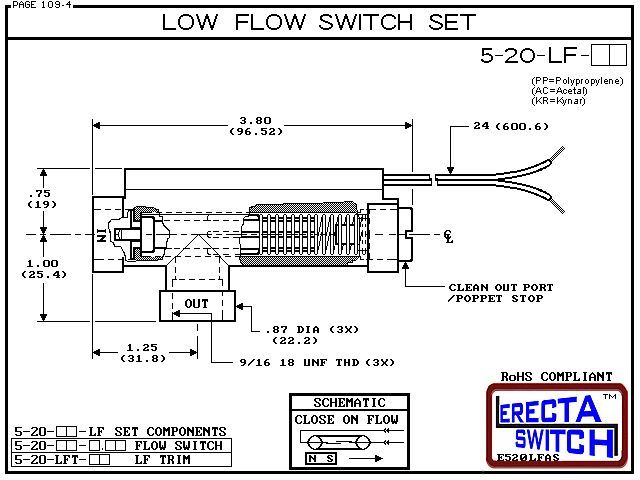

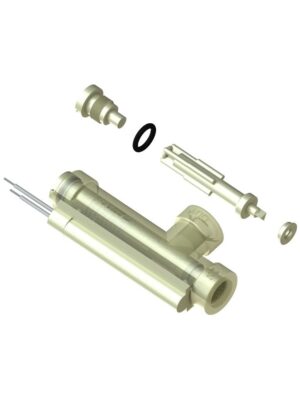

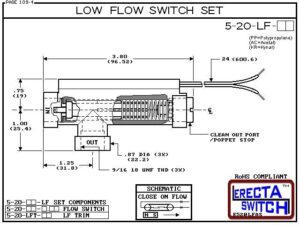

The 5-20-LF-KR Low Flow Switch Set (PVDF Kynar) converts the 5-20 angle body flow switch to an ultra low flow sensor. With the spring the 5-20-LF low flow flow switch set actuates at .042 gpm. Remove the spring and mount the flow switch set vertically (inflow port down) and the 5-20-LF actuates at an incredible .008 gpm. The set comes with a 5-20 flow switch, replacement Low Flow poppet, clean out port and a low flow orifice which is inserted into the inflow port and held in place by one of 4 available accessory fittings. Like the 5-20 angle body flow switch, the 5-20-LF Low Flow Flow Switch clean out port allows removal of spring and poppet without removal of the flow switch from your line.

The PVDF Kynar flow switch Version is suitable for harsh acids, caustics, chlorine and other highly corrosive chemical flow sensor applications.
