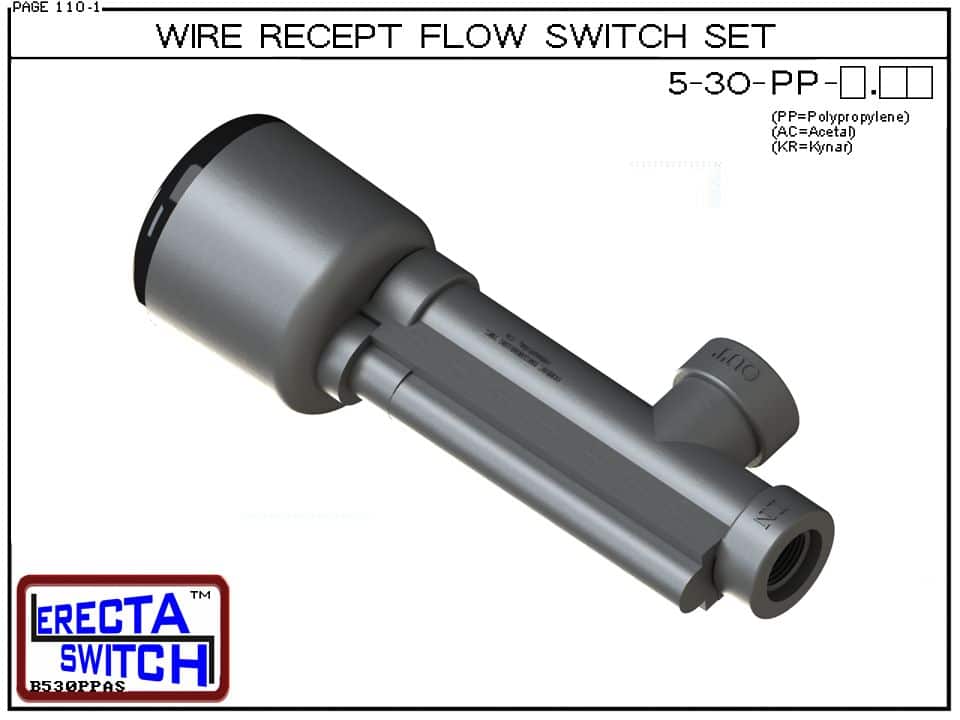

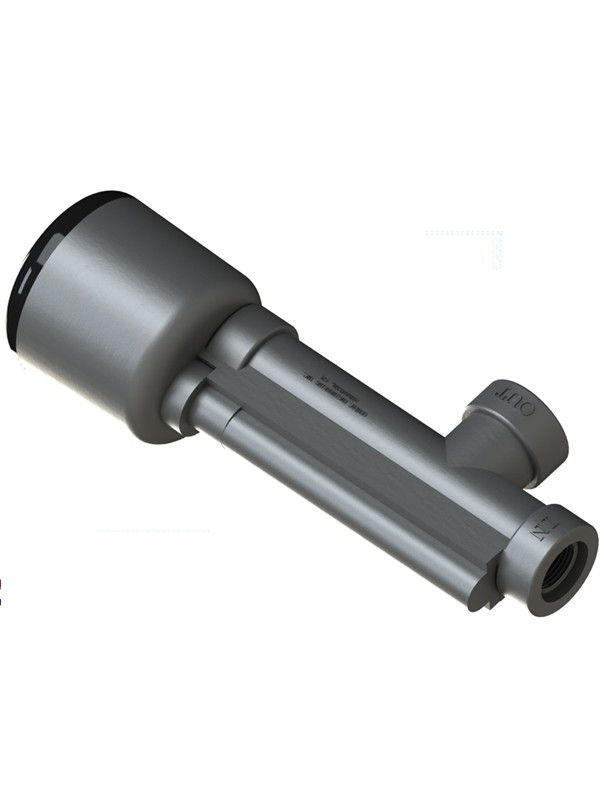

5-30-PP Wire Receptacle Flow Switch Set (Polypropylene)

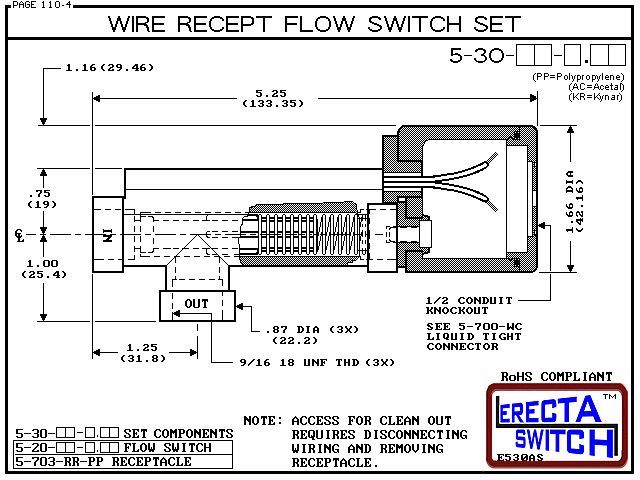

The 5-30-PP Wire Receptacle Flow Switch Set introduces an innovative weather-tight wire receptacle to the reliable 5-20 angle body flow switch. Its receptacle cap features a 1/2″ center knockout, compatible with any connector or fitting with 1/2″ threads and a jam nut, ensuring flexible connectivity.

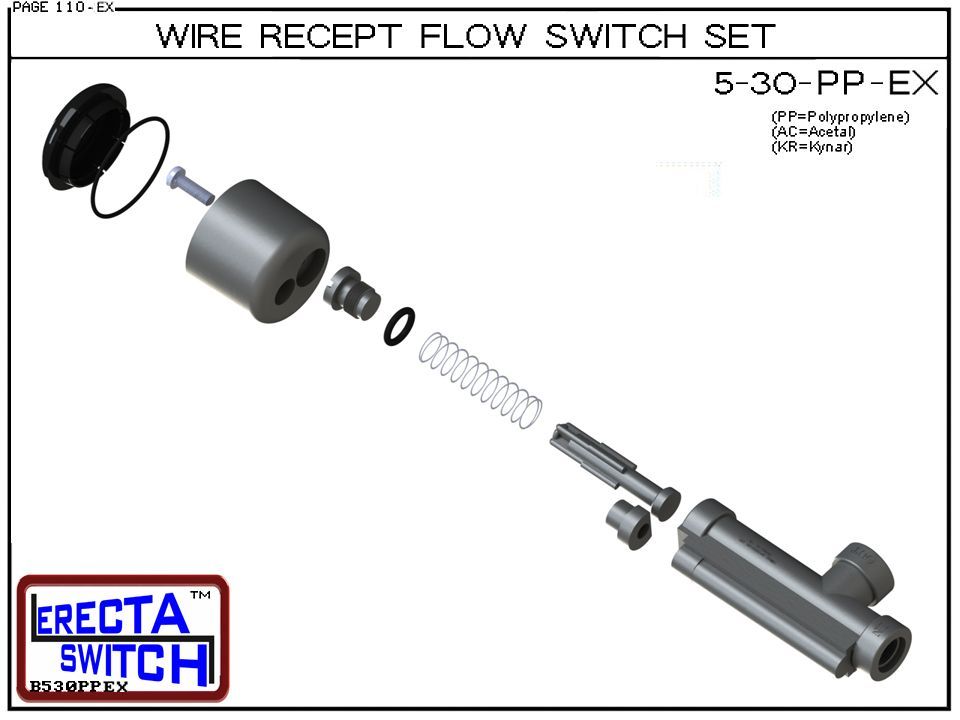

This flow switch set allows seamless access to the clean-out port, enabling quick removal of the spring and poppet without the need to remove the flow switch from the line. The 5-30 Flow Switch Set is available in five preset factory flow rates:

• 0.1 GPM
• 0.25 GPM
• 0.5 GPM
• 0.75 GPM
• 1 GPM

For applications requiring ultra-low flow detection, mount the flow switch vertically without the titanium spring. The design also includes built-in 9/16 UNF female bosses, compatible with four available accessory fittings, for enhanced adaptability.

Material Compatibility
The polypropylene version is suitable for applications involving:

• Water
• Soaps
• Light acids

Its durable construction ensures reliable performance in non-corrosive and mildly corrosive environments.

Applications and Features
The 5-30-PP Wire Receptacle Flow Switch Set is ideal for industries requiring weather-tight, low-flow sensing solutions, including:

• Outdoor water flow monitoring systems
• Chemical processing and dosing systems
• OEM applications requiring weather-resistant flow control

Search for related terms such as “weather-tight flow switch,” “low flow polypropylene flow sensor,” “OEM flow switch with wire receptacle,” or “reliable outdoor flow sensor” to discover more about its capabilities.

Additional Models for Varied Applications
Explore related models to meet specific application needs:

• 5-20: Angle body flow switch models
• 5-21: Straight body flow switch models
• 5-19: Flow switch/indicator combination models
• 5-18: Flow indicator models

Competitive Positioning
The 5-30-PP Wire Receptacle Flow Switch Set competes effectively with leading industry models, such as:

• Gems FS-4, FS-150, FS-380P Flow Switches
• Thomas Products Flow Switches
• Omega Engineering Flow Switches
• Cole-Parmer Flow Switches
• Cynergy3 Flow Switches
• EFS-01P Flow Switches

It also competes with manufacturers like Wenzhou Bingo, Shanghai Yuanben Magnetoelectric Tech., Shenzhen Fast Sensor, ACOL (Shanghai) Online Controls, and A. Yite.

Why Choose the 5-30-PP Wire Receptacle Flow Switch Set?
With its weather-tight design, clean-out port accessibility, and reliable polypropylene construction, the 5-30 Wire Receptacle Flow Switch Set is the ideal solution for outdoor and demanding OEM applications requiring low-flow sensing with enhanced connectivity options.
