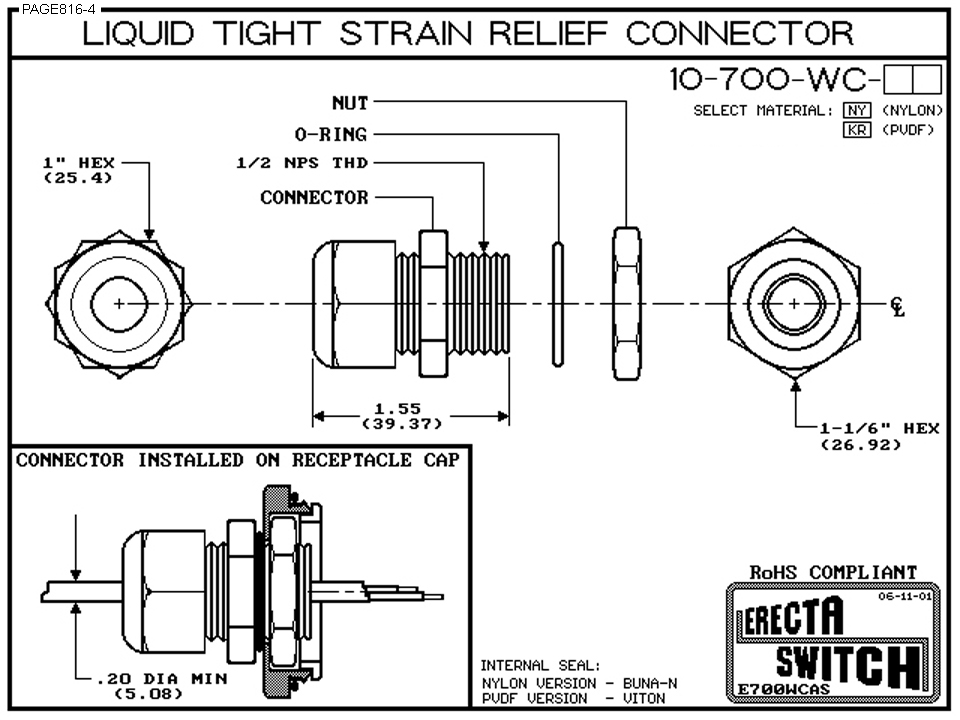

10-700-WC dimensional diagram
Diagram
Diagram
Product
Product
Components · Plastic Fittings

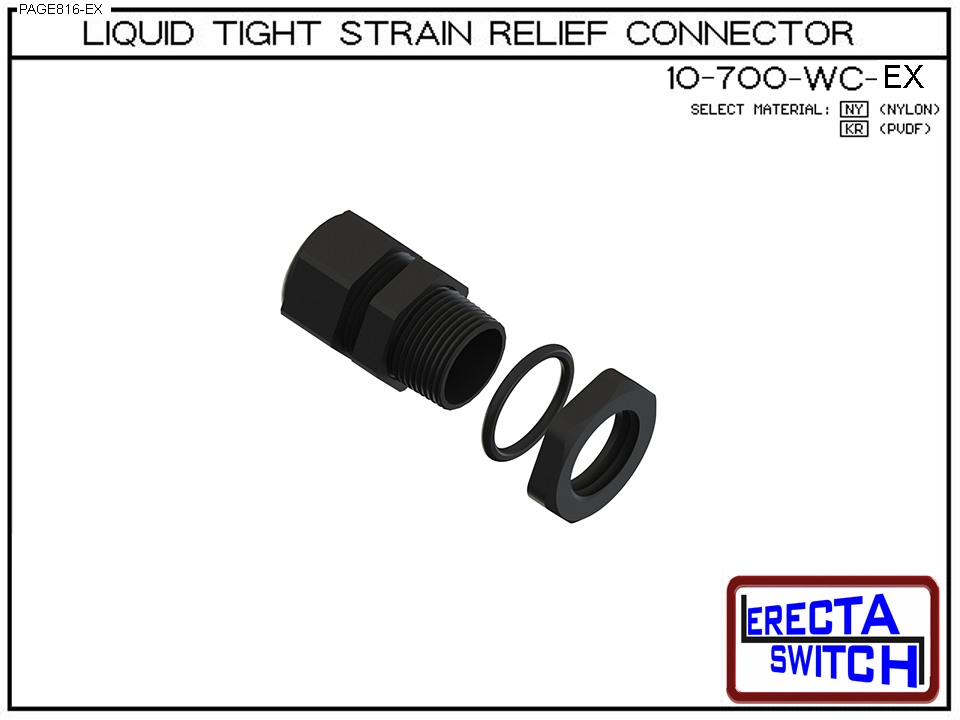

10-700-WC — Liquid Tight Strain Relief Connector

SKU: 10-700-WC-NY-1  ·  1-Pack · Nylon

The 10-700-WC liquid tight strain relief connector seals the lead wire egress point at receptacle caps, preventing moisture ingress that can cause reed switch failure. 1/2 NPS thread, 1″ hex. Nylon construction with Buna-N internal O-ring seal. Installs on receptacle cap with .20″ minimum wire diameter passage. Essential for any outdoor, wash-down, or high-humidity installation.

Pack Size
Net Price — per 1-pack

Call 1-800-828-9044 for pricing.

OEM pricing for quantities above 999 quoted upon request.
Qty
Request OEM Quote Free Evaluation Sample
In stock · Ships Wednesday · Made in Paradise, CA · No minimum order
Other Plastic Fittings
10-700-CA Angle Connector 10-700-FB Fitting Bracket 10-700-WC Strain Relief 10-701-BH Bulkhead Fitting 10-702-BH Hex Bulkhead 10-703-BH 3-Way Fitting
Technical Documents
📄Series 10 Product Family Overview & RatingsPDF 📄Series 10 Application NotesPDF
Key Features

What Makes the 10-700-WC the Right Choice

Liquid-tight lead wire seal
Creates a watertight seal around lead wires exiting through the receptacle cap. Critical for wash-down environments, outdoor installations, and any application where moisture could wick along the lead wire into the switch enclosure.
Installs on receptacle cap
Designed specifically for ERECTA SWITCH receptacle caps. The connector threads into the cap's wire egress port and compresses the internal O-ring around the lead wire when tightened. No additional tools required.
Buna-N internal seal
Nylon body with Buna-N O-ring provides reliable sealing for most water-based, soap, and mild chemical service environments. Minimum wire diameter .20″ (5.08 mm).
Standard 1/2 NPS thread
1/2 NPS thread, 1″ hex, 1.55″ body length. Fits all ERECTA SWITCH receptacle caps with 1/2 NPS wire egress ports. 1-1/16″ hex on locknut.
OEM Applications

Where the 10-700-WC Is Specified

Specifications

Technical Dimensions — 10-700-WC

Thread
1/2 NPS
Body Hex
1″ HEX (25.4 mm)
Locknut Hex
1-1/16″ HEX (26.92 mm)
Body Length
1.55″ (39.37 mm)
Min Wire Dia
.20″ (5.08 mm)
Internal Seal
Buna-N O-ring
Body Material
Nylon (NY)
Installs On
ERECTA SWITCH receptacle caps
Certification
RoHS Compliant
Frequently Asked Questions

Common Questions About This Product

What liquid chemistries is the 10-700-WC compatible with?

Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.

What factors should I consider when choosing the 10-700-WC?

Consider media chemistry (pick PP, AC, or KR), liquid specific gravity, operating temperature and pressure, mounting style, number of switch points, and electrical contact rating. Compac will spec it from your application — request a free evaluation sample.

What makes ERECTA SWITCH different from other level switches?

It is the only fully modular, off-the-shelf liquid level switch system: switch, float, connector, fitting, and nipple are independently field-replaceable and stocked. OEMs configure exactly what they need with no minimums and short lead times. Made in Paradise, California; RoHS compliant.

Can I order individual ERECTA SWITCH replacement components?

Yes. The 10-700-WC is available as an individual, stocked part — no need to replace the entire switch assembly. ERECTA SWITCH is a fully modular system: switch, float, connector, fitting, spacer, and nipple are all orderable separately with no minimums. This reduces repair cost and downtime for OEM field service.

Are ERECTA SWITCH components interchangeable across models?

Yes — modularity is the core of the ERECTA SWITCH system. The 10-700-WC is designed to work across multiple Series 10 configurations. Floats, connectors, spacers, and fittings share standard interfaces, so one stocked component serves many switch assemblies. Check the model number to confirm compatibility.

How do I identify which ERECTA SWITCH component I need?

Each component has a unique model number (e.g., 10-700-WC) that identifies its type, material, and function within the assembly. Contact Compac with your switch model number and the part you need to replace — or request a free evaluation sample to confirm fit before ordering production quantities.
