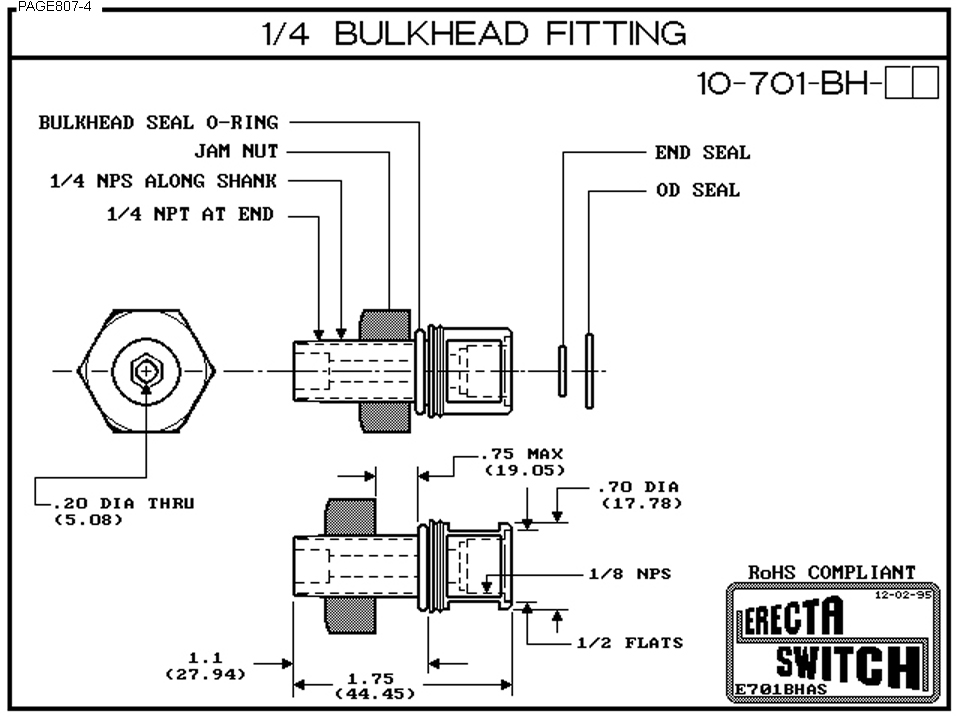

10-701-BH dimensional diagram
Diagram
Diagram
Product
Product
Components · Plastic Fittings

10-701-BH — 1/4″ Bulkhead Fitting

SKU: 10-701-BH-PP-1  ·  1-Pack · Polypropylene

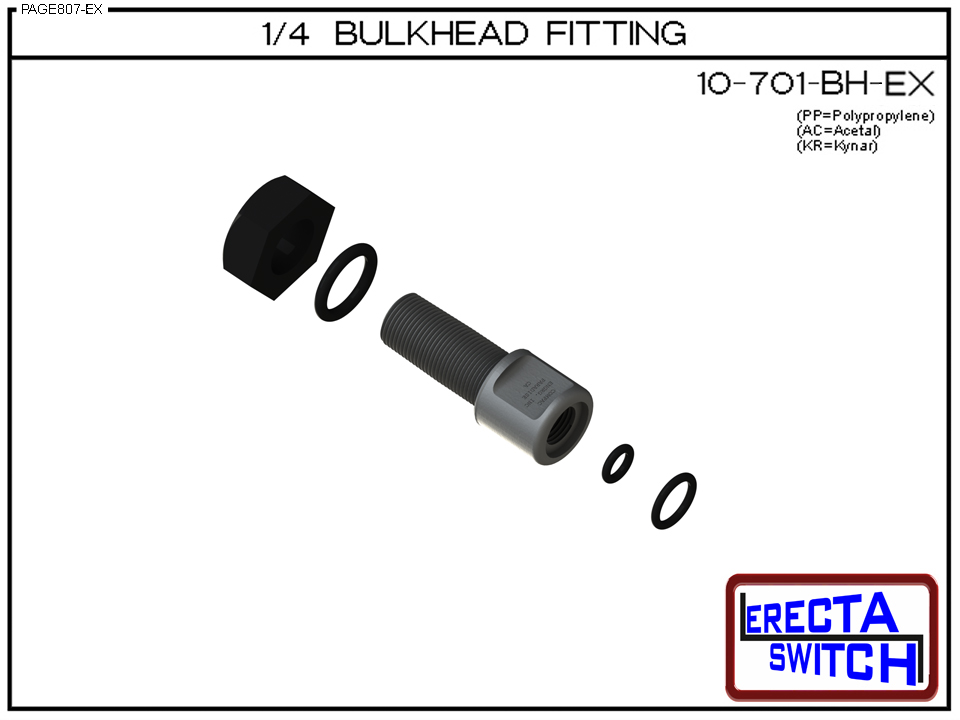

1/4 NPS along shank, 1/4 NPT at end. The 10-701-BH provides a through-bulkhead fitting for ERECTA SWITCH stem assemblies, sealing the tank wall penetration and supporting the stem. Bulkhead seal O-ring, jam nut, end seal, and OD seal included. .70″ diameter, 1.75″ total length. Mates with the 10-700-FB fitting bracket. Available in Polypropylene, Acetal, and PVDF Kynar.

Material
Pack Size
Net Price — per 1-pack

Call 1-800-828-9044 for pricing.

OEM pricing for quantities above 999 quoted upon request.
Qty
Request OEM Quote Free Evaluation Sample
In stock · Ships Wednesday · Made in Paradise, CA · No minimum order
Other Plastic Fittings
10-700-CA Angle Connector 10-700-FB Fitting Bracket 10-700-WC Strain Relief 10-701-BH Bulkhead Fitting 10-702-BH Hex Bulkhead 10-703-BH 3-Way Fitting
Technical Documents
📄Series 10 Product Family Overview & RatingsPDF 📄Series 10 Application NotesPDF
Key Features

What Makes the 10-701-BH the Right Choice

Complete sealing hardware
Bulkhead seal O-ring, jam nut, end seal, and OD seal are all included. The fitting creates a fully sealed bulkhead penetration with no additional hardware required.
Dual thread configuration
1/4 NPS along the shank for smooth bulkhead insertion, transitioning to 1/4 NPT at the end for standard pipe thread connections. Provides secure, leak-free installation in plastic tank walls.
Mates with 10-700-FB bracket
Designed to interface directly with the 10-700-FB fitting bracket for complete ERECTA SWITCH bulkhead assemblies. Both components available in matching materials.
Three material options
Polypropylene for water and light chemical service. Acetal for hydrocarbons and solvents. PVDF Kynar for aggressive acids, caustics, and high-purity applications.
OEM Applications

Where the 10-701-BH Is Specified

Specifications

Technical Dimensions — 10-701-BH

Thread — Shank
1/4 NPS
Thread — End
1/4 NPT
Inner Thread
1/8 NPS
Diameter
0.70″ (17.78 mm)
Total Length
1.75″ (44.45 mm)
Jam Nut Length
1.1″ (27.94 mm)
Bore
0.20″ DIA THRU (5.08 mm)
Flats
1/2 FLATS
Seals Included
O-ring · Jam nut · End seal · OD seal
Materials
PP · Acetal · PVDF Kynar
Mates With
10-700-FB Fitting Bracket
Certification
RoHS Compliant
Frequently Asked Questions

Common Questions About This Product

What liquid chemistries is the 10-701-BH compatible with?

Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.

What factors should I consider when choosing the 10-701-BH?

Consider media chemistry (pick PP, AC, or KR), liquid specific gravity, operating temperature and pressure, mounting style, number of switch points, and electrical contact rating. Compac will spec it from your application — request a free evaluation sample.

What makes ERECTA SWITCH different from other level switches?

It is the only fully modular, off-the-shelf liquid level switch system: switch, float, connector, fitting, and nipple are independently field-replaceable and stocked. OEMs configure exactly what they need with no minimums and short lead times. Made in Paradise, California; RoHS compliant.

Can I order individual ERECTA SWITCH replacement components?

Yes. The 10-701-BH is available as an individual, stocked part — no need to replace the entire switch assembly. ERECTA SWITCH is a fully modular system: switch, float, connector, fitting, spacer, and nipple are all orderable separately with no minimums. This reduces repair cost and downtime for OEM field service.

Are ERECTA SWITCH components interchangeable across models?

Yes — modularity is the core of the ERECTA SWITCH system. The 10-701-BH is designed to work across multiple Series 10 configurations. Floats, connectors, spacers, and fittings share standard interfaces, so one stocked component serves many switch assemblies. Check the model number to confirm compatibility.

How do I identify which ERECTA SWITCH component I need?

Each component has a unique model number (e.g., 10-701-BH) that identifies its type, material, and function within the assembly. Contact Compac with your switch model number and the part you need to replace — or request a free evaluation sample to confirm fit before ordering production quantities.
