10-782-AC5-KR – 10 Pack
$795.58
9999 in stock

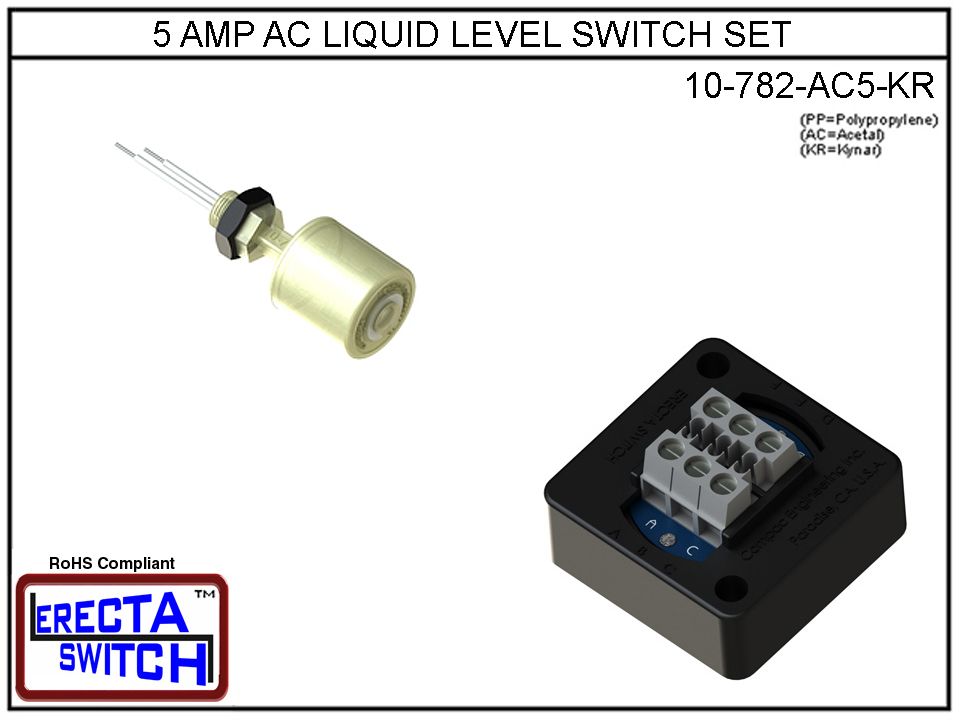

End Reed switch failures and simplify switching larger AC reactive loads with our new 5 Amp AC Switch Sets.
One of the most common causes of failures in magnetic reed switch flow switches and level switches is welded shut contacts caused by switching reactive electrical loads such as electromechanical relays, solenoid valves, motor starters, motors, pumps, and incandescent loads. Even if the load does not exceed the reed switches rating, reactive loads cause arcing across the reed switch contacts and cause reed switch contacts to weld/stick shut. Contact protection must be added to your circuit to ensure reliability.
Eliminate costly and hazardous failures in the field. Our ERECTA SWITCH 5 AMP AC switch sets turn fragile reed switches into 5 amp AC powerhouses. These switch sets make it possible to switch 5 Amp reactive loads at 120VAC-240VAC with 25 amp inrush, isolating the reed switch from the load.
10-782-PP description

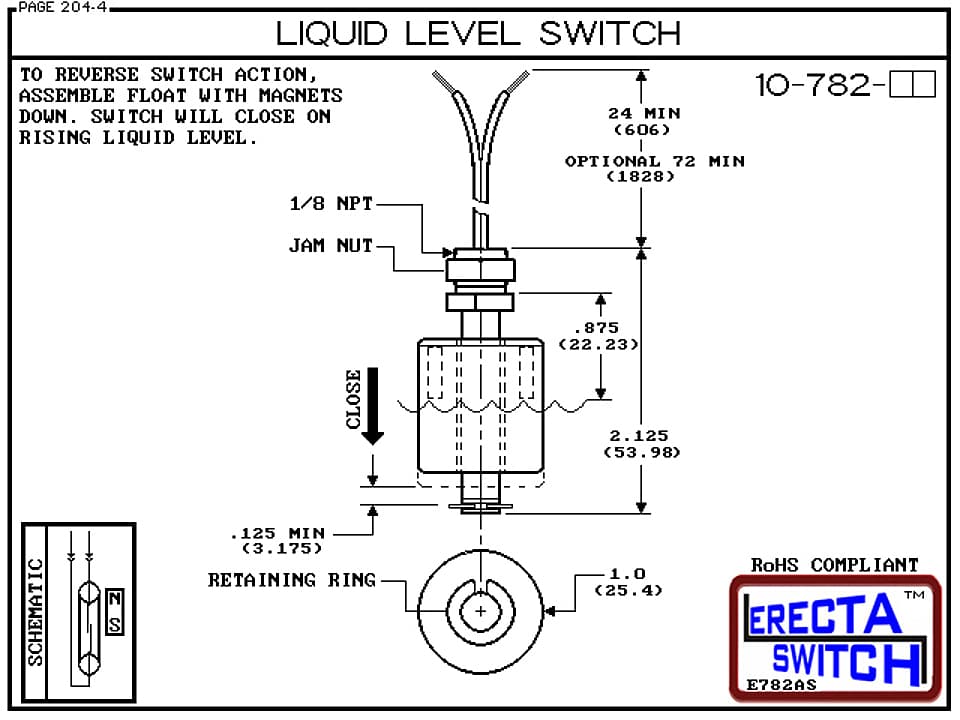

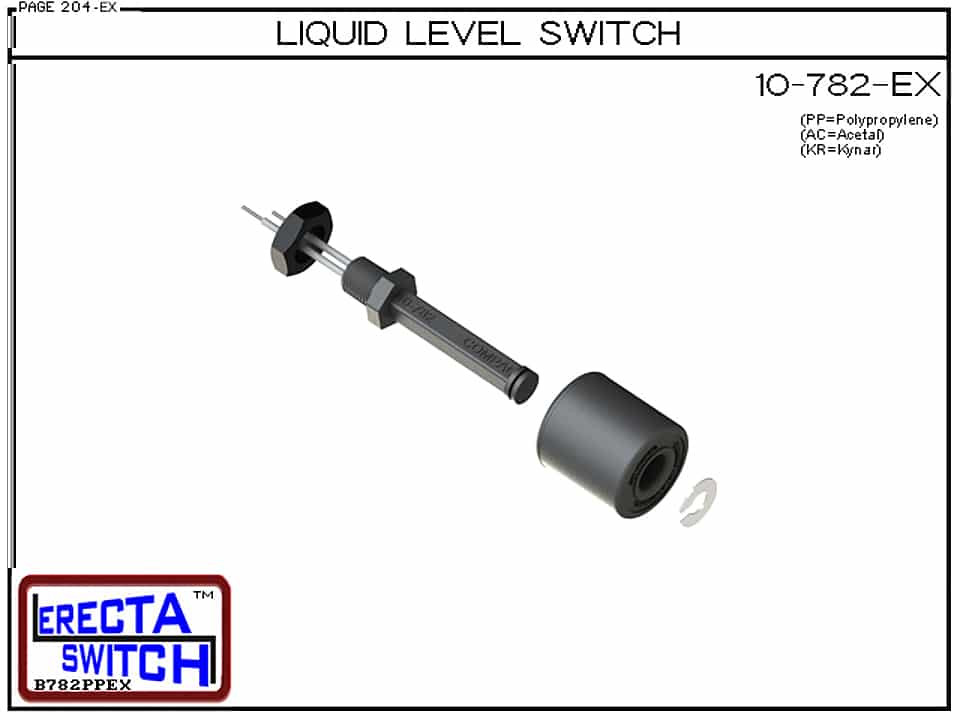

10-782-PP Level Switch is the most versatile level switch in the world. Much more than a standalone liquid level switch, it is the key liquid level switching element in all level switch sets extended level switch sets, and multi-level switch sets in the series 10 ERECTA SWITCH OEM Level switch product group. The 10-782-PP OEM level switch opens on rise or closes on rise by reversing the float. It’s a simple Float Switch product based on a simple idea. A magnetic float rising or falling in response to liquid level change actuates a hermetically sealed magnetic reed switch. This straight forward method of converting motion into an electrical signal is so uncomplicated that many years of reliable service can be expected. This item is sometimes referred to as a water level switch, float switch, or magnetic level switch.
See also series 10 Liquid level sensor product group including vertical mounted single point level switch sets, side mounted levels switch sets. extended stem level switch sets and multi-level switch sets, and series 15 side mounted liquid level switch product group.
Polypropylene level switch version is suitable for water, soaps , light acid liquid level sensor applications.
Level Switch – Liquid Level Switch – Liquid Level Sensor – Float Switch – OEM Level Switch – Water Level Switch – Level Sensor – Magnetic Level Switch
50-NP-AC5 Description

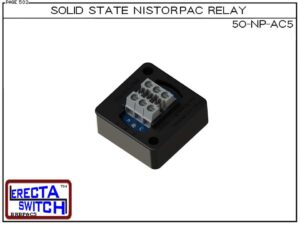

50-NP-AC5 Solid State NistorPac is a packaged Teccor alternistor that boosts switching capability of reed switch devices to 5 amps AC. If you are looking for a simple, compact , affordable way to protect reed switch devices or other pilot load switching devices from large loads this is it. NistorPacs can switch solenoid valves, small pumps, motor starters, alarms or any other AC loads up to 5 amps. If you already have integrated circuitry and need to add a high level or low level cut off or alarm, the NistorPac is an excellent solution.
The NistorPac has no shared terminals , a built in heat sink, and built in hold downs making it a quick, simple, convenient, low cost control solution. Teccor’s alternistor is specifically designed for applications that switch highly inductive loads. A special chip offers the same performance as two thyristors(SCRs) wired inverse parallel (back-to-back), providing better turn-off behavior than a standard triac. This new chip construction provides two electrically separate SCR structures, providing enhanced dv/dt characteristics while retaining the advantages of a single-chip device. The NistorPac works in 24 – 240 Volts AC.
