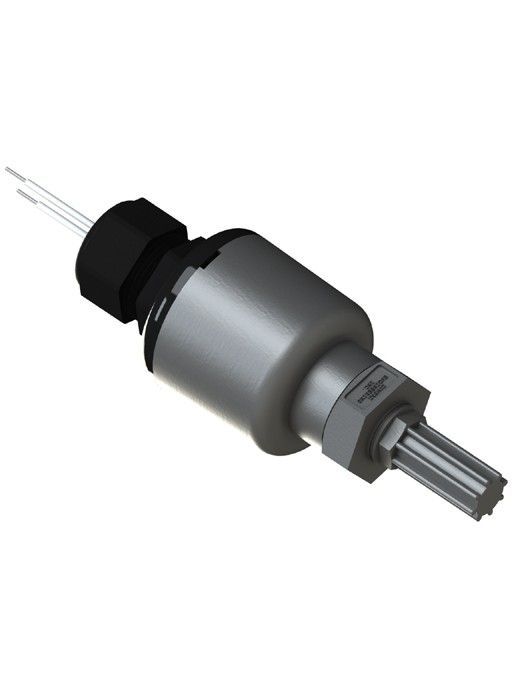

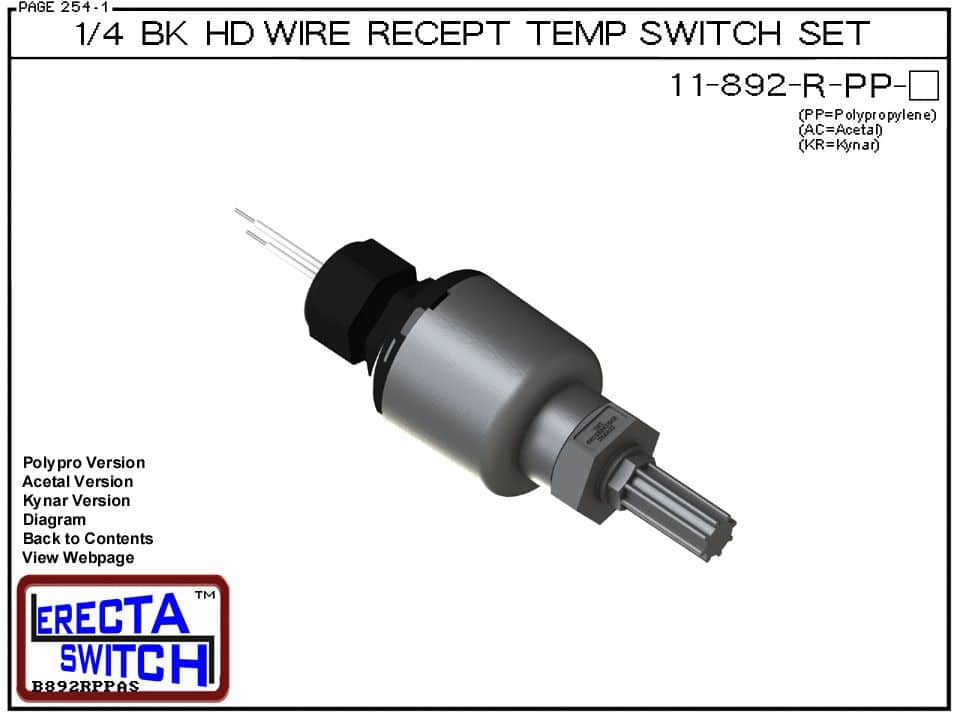

11-892-R-PP Bimetal 1/4 Bulkhead Wire Receptacle Temperature Switch Set (Polypropylene)

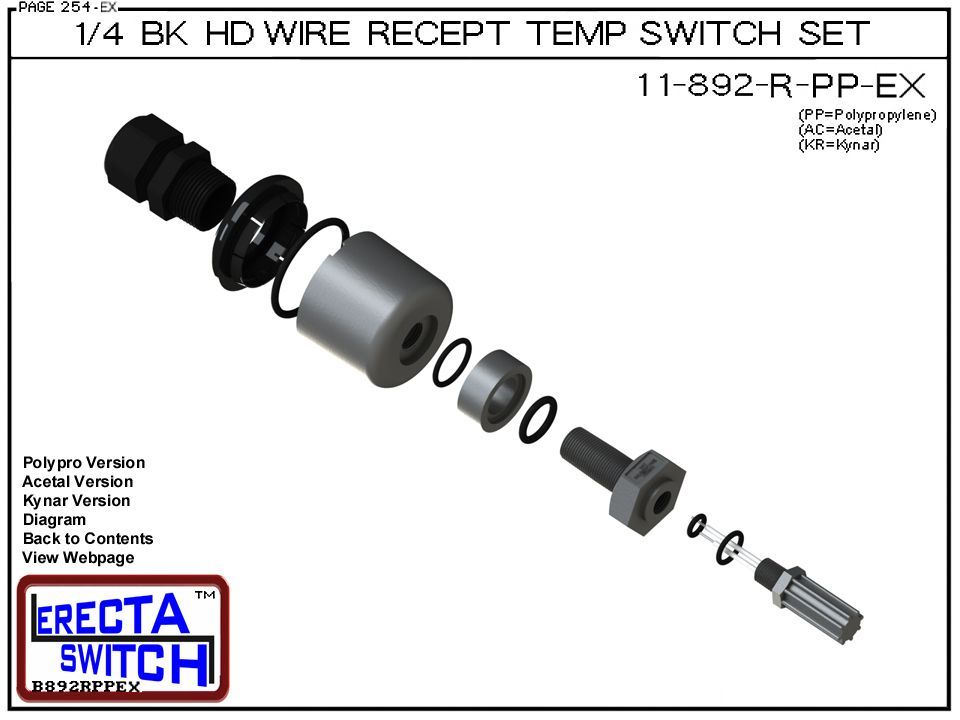

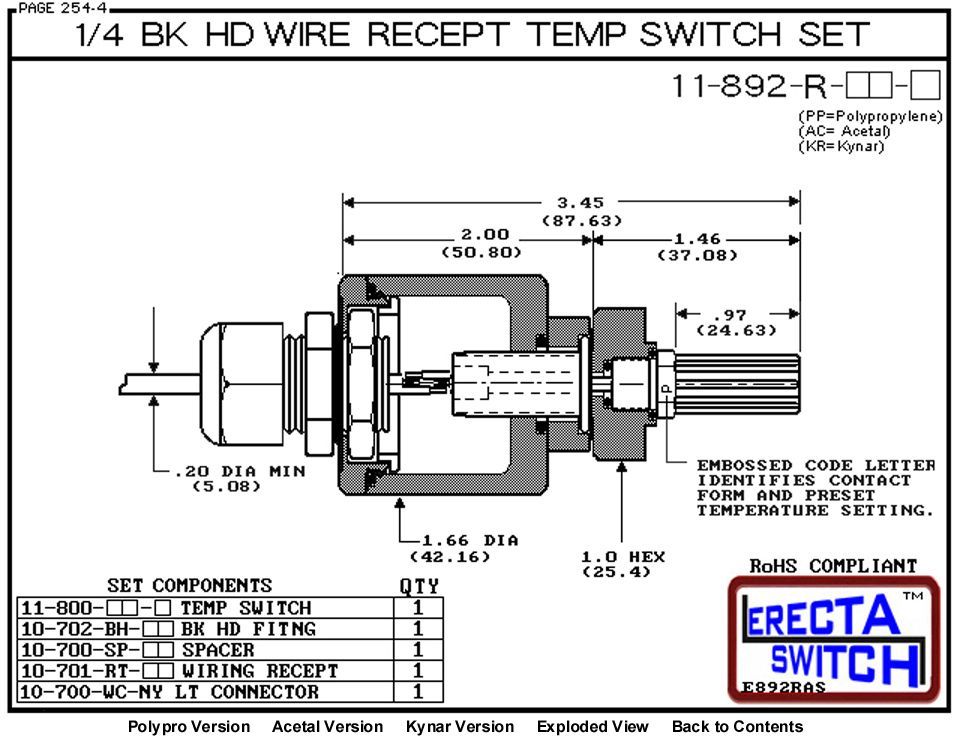

11-892-R-Bi-Metallic 1/4 Bulkhead Wire Receptacle Temperature Switch Set (Polypropylene) adds a weather tight wire receptacle to the 11-892 temperature switch set. The temperature switch sets innovative wire receptacle replaces the jam nut and provides a weather tight chamber for wire splices. The temperature switch set receptacle cap has a 1/2″ center knock out and accommodates included liquid tight strain relief connector. The temperature Switch seals to the bulkhead fitting with double o ring seal. Mount to an existing 1/4″ NPT female boss or drill a smooth hole and use the included jam nut and o ring.

11-800 temperature switch (switching element of this temperature switch set) are creep mechanisms (having no built in differential) and are characterized by slow make / slow break and rapid cycling capability.As a result, these temperature switches are suited for both control and limit applications. Also found under temperature sensor, temperature probe, and thermal switch.

Polypropylene temperature switch version is suitable for temperature sensing water, soaps , light acids.
