Components · Adapters

ERECTA SWITCH® Adapters & Flange Nuts

Mounting adapters and flange nuts for ERECTA SWITCH Series 10 level switch assemblies. Convert standard 2″ NPT openings, secure bulkhead penetrations, and provide sealed connections — all in Polypropylene, Acetal, and PVDF Kynar. 1-Pack and 10-Pack. No minimum order.

In stock · Made in Paradise, CA
PP · Acetal · PVDF Kynar
RoHS Compliant throughout
No minimum order
Adapters

Select an Adapter

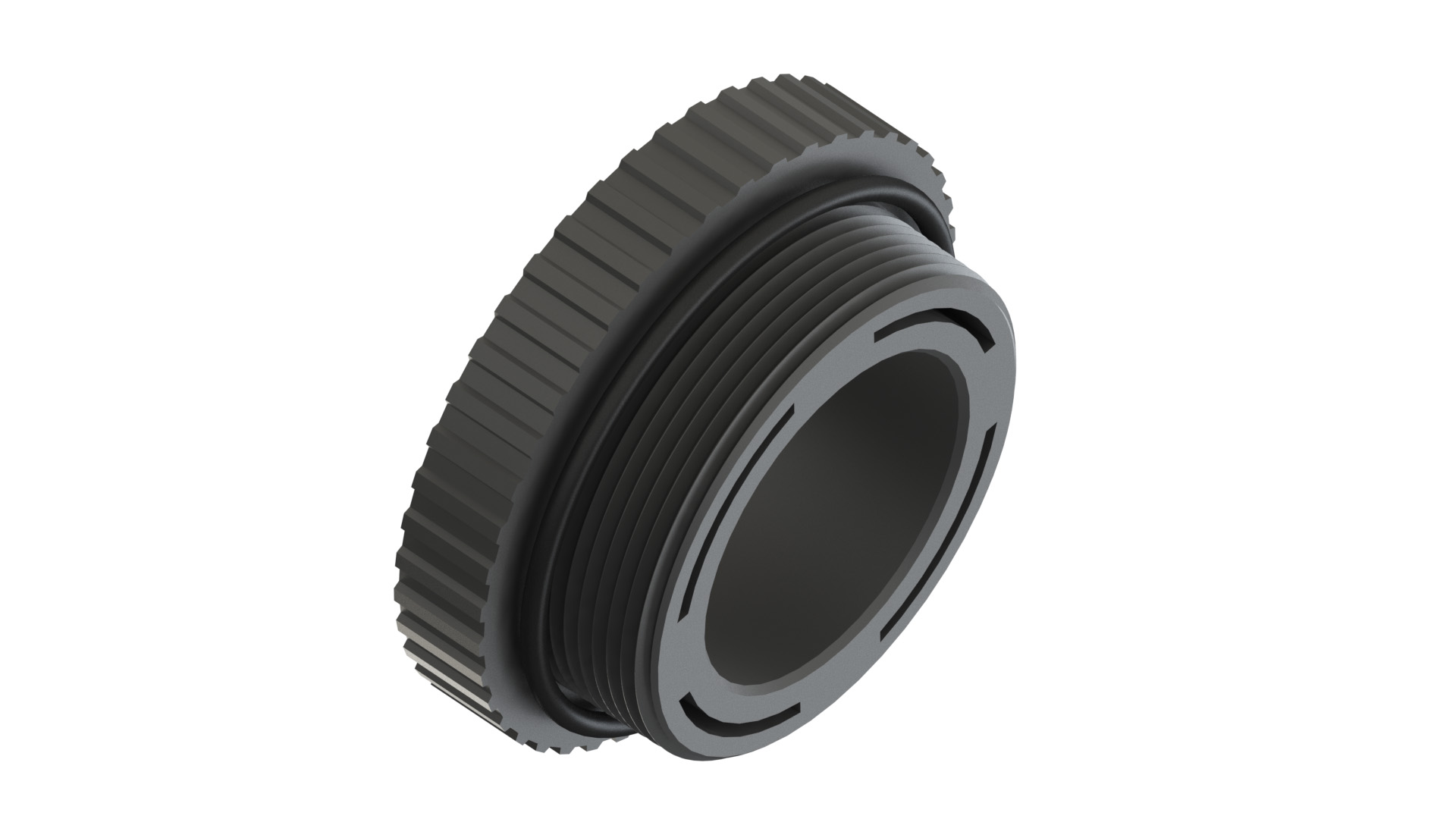

10-700-AS Adapter with Seal
10-700-AS
Adapter with Seal

1¼″–2″ adapter with O-ring seal. Converts 2″ NPT tank openings to accept 1¼″ NPS ERECTA SWITCH components.

PP Acetal Kynar
From $28.59 / 1-pack
Select →

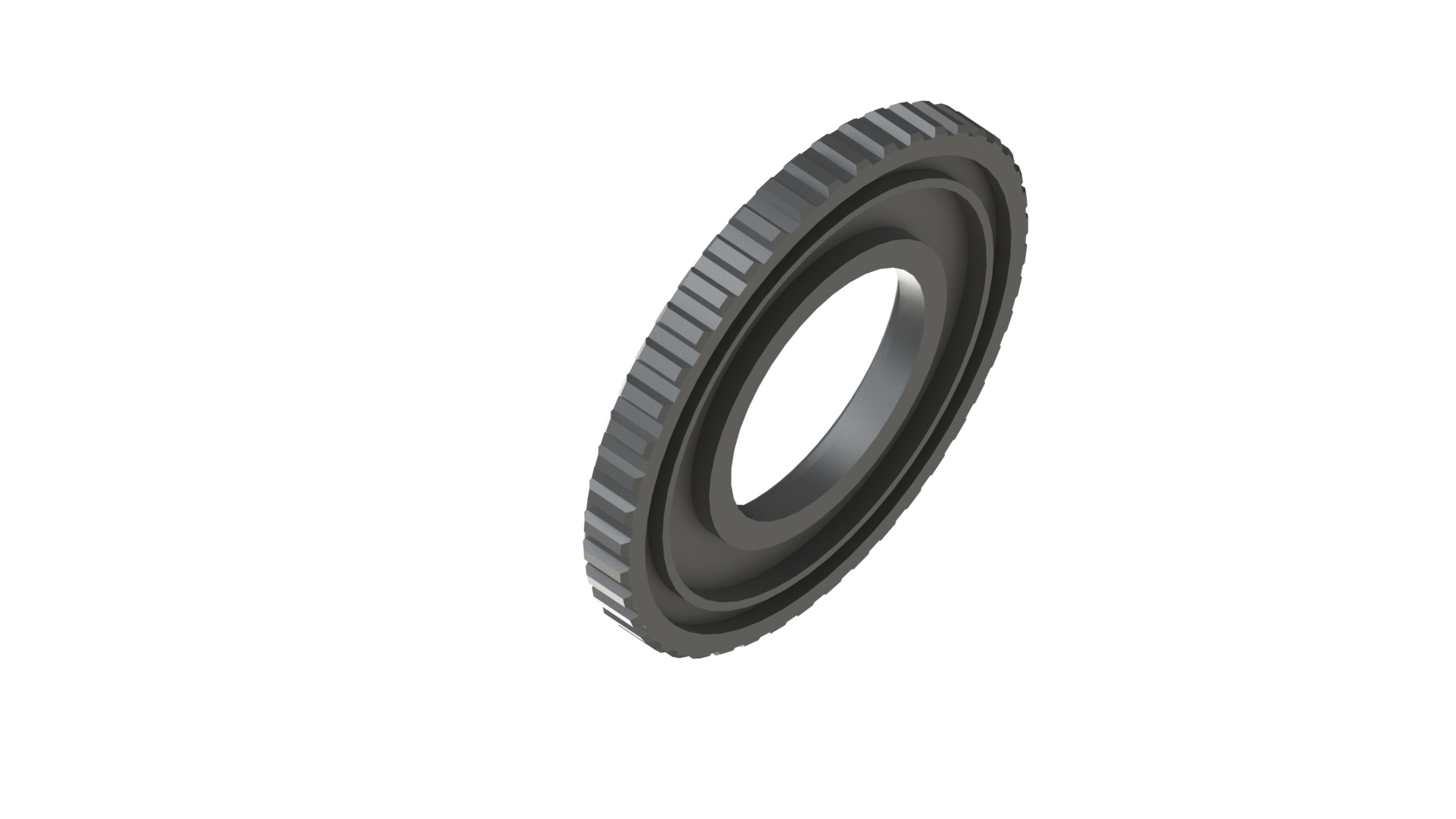

10-700-FN Flange Nut
10-700-FN
Flange Nut

1¼″ NPS flange nut. Secures ERECTA SWITCH components to tank wall or bulkhead. Wide flange distributes clamping force.

PP Acetal Kynar
From $13.60 / 1-pack
Select →

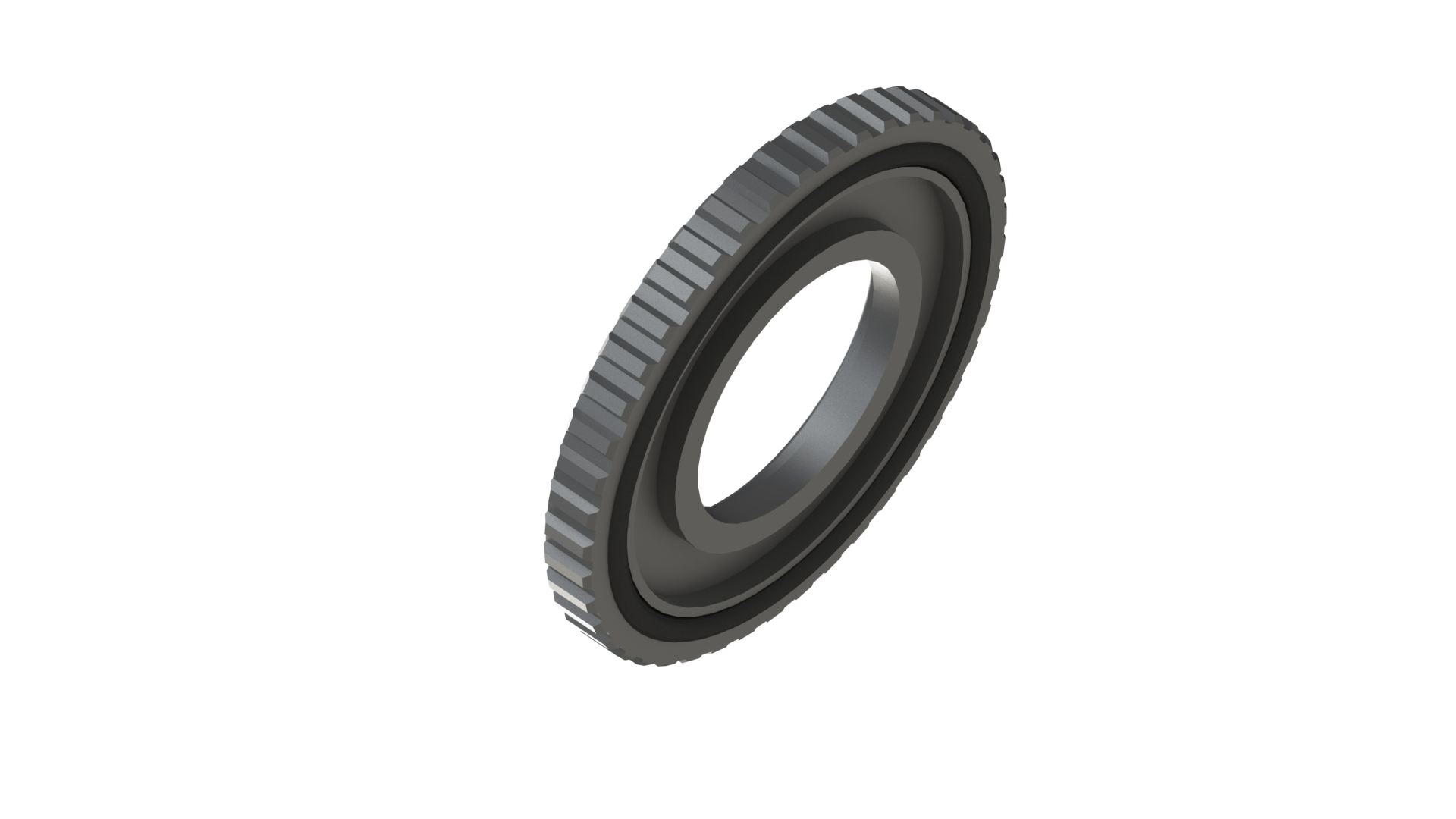

10-700-FS Flange Nut with Seal
10-700-FS
Flange Nut with Seal

1¼″ NPS flange nut with integrated O-ring for sealed bulkhead mounting. Includes nut and seal — complete mounting set.

PP Acetal Kynar
From $28.59 / 1-pack
Select →

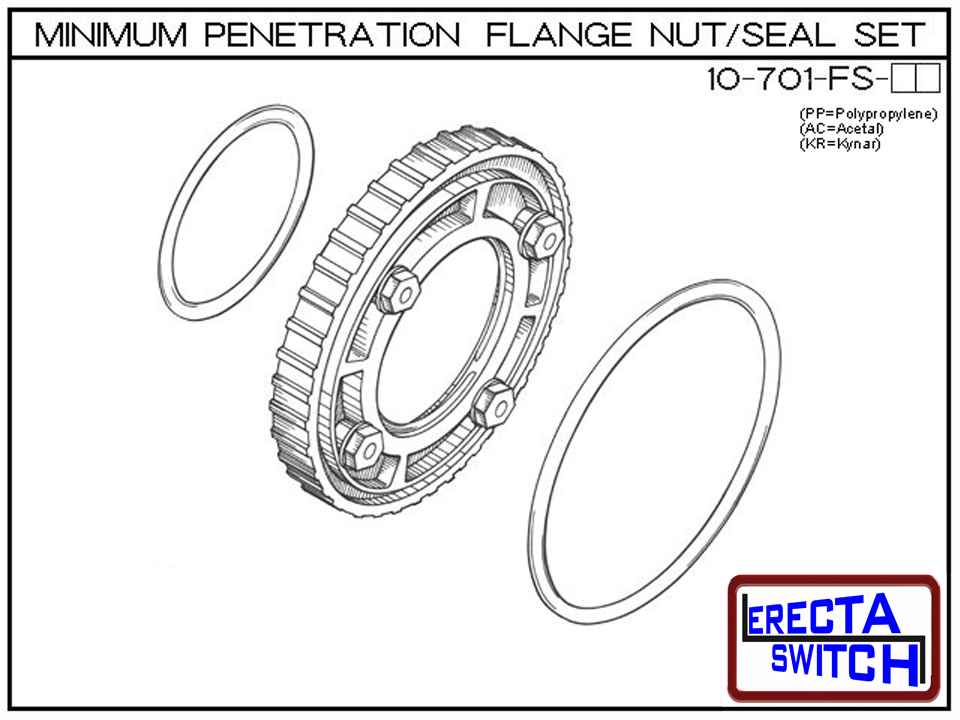

10-701-FS Flange Nut Set (Snap-In)
10-701-FS
Flange Nut Set (Snap-In)

Miniature flange nut with O-ring seal for snap-in bulkhead mounting. Quick installation for panel-mount applications. 10-pack only.

PP Acetal Kynar
From $331.65 / 10-pack
Select →
Design Notes

Chemical Compatibility & Selection Guide

Polypropylene (PP)

Excellent resistance to water, soaps, light acids, and mild alkalis. The standard choice for water treatment, food processing, and general industrial applications. Most economical option.

Acetal (AC)

Engineered for hydrocarbons — gasoline, diesel, hydraulic oil, and lubricants. Not recommended for strong acids or oxidizing agents. Preferred for fuel system and mobile equipment applications.

PVDF Kynar (KR)

Maximum chemical resistance for harsh environments. Handles strong acids, caustics, chlorinated solvents, and high-purity chemical service. Specified for semiconductor, electroplating, and chemical processing.

Frequently Asked Questions

Common Questions About This Product

What liquid chemistries is the ERECTA SWITCH component compatible with?

Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.

What factors should I consider when choosing the ERECTA SWITCH component?

Consider media chemistry (pick PP, AC, or KR), liquid specific gravity, operating temperature and pressure, mounting style, number of switch points, and electrical contact rating. Compac will spec it from your application — request a free evaluation sample.

What makes ERECTA SWITCH different from other level switches?

It is the only fully modular, off-the-shelf liquid level switch system: switch, float, connector, fitting, and nipple are independently field-replaceable and stocked. OEMs configure exactly what they need with no minimums and short lead times. Made in Paradise, California; RoHS compliant.

Can I order individual ERECTA SWITCH replacement components?

Yes. The ERECTA SWITCH component is available as an individual, stocked part — no need to replace the entire switch assembly. ERECTA SWITCH is a fully modular system: switch, float, connector, fitting, spacer, and nipple are all orderable separately with no minimums. This reduces repair cost and downtime for OEM field service.

Are ERECTA SWITCH components interchangeable across models?

Yes — modularity is the core of the ERECTA SWITCH system. The ERECTA SWITCH component is designed to work across multiple Series 10 configurations. Floats, connectors, spacers, and fittings share standard interfaces, so one stocked component serves many switch assemblies. Check the model number to confirm compatibility.

How do I identify which ERECTA SWITCH component I need?

Each component has a unique model number (e.g., ERECTA SWITCH component) that identifies its type, material, and function within the assembly. Contact Compac with your switch model number and the part you need to replace — or request a free evaluation sample to confirm fit before ordering production quantities.
