ERECTA SWITCH® Plastic Fittings

Precision-molded plastic fittings designed for use with Series 10 ERECTA SWITCH level switches. Includes angle connectors, fitting brackets, strain relief connectors, and bulkhead fittings — all available in Polypropylene, Acetal, and PVDF Kynar for broad chemical compatibility. Every fitting is sold individually, packaged in 1-packs and 10-packs, with no minimum order.

In stock · Made in Paradise, CA

PP · Acetal · PVDF Kynar

RoHS Compliant throughout

No minimum order

Plastic Fittings

Select a Fitting

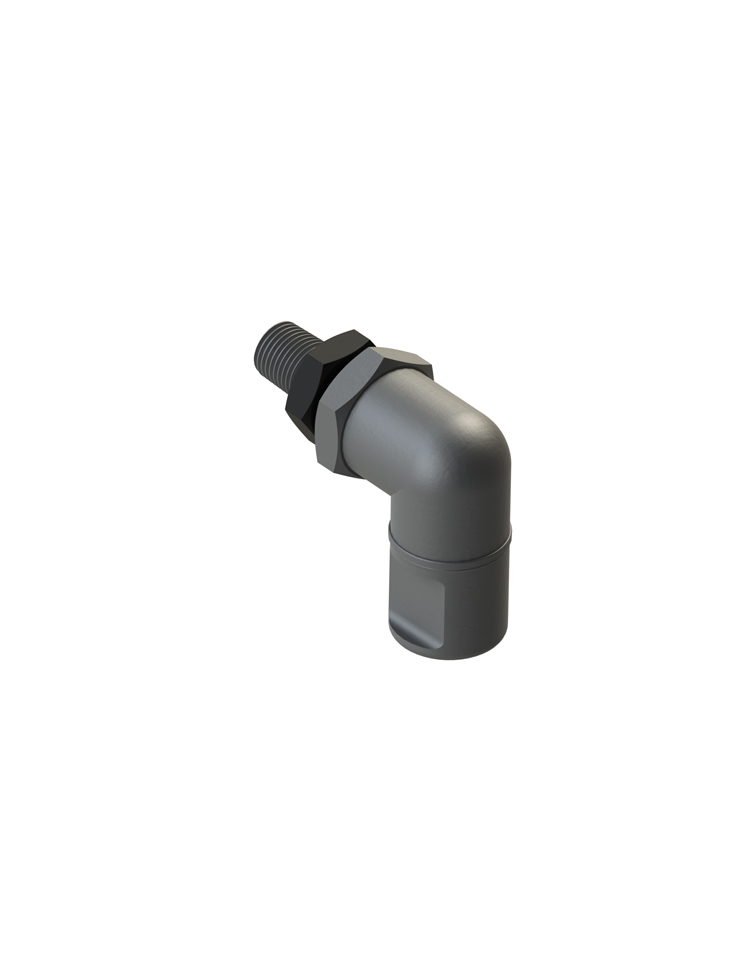

10-700-CA

Angle Connector

1/8 NPS angle connector with bulkhead seal O-ring and jam nut. Bulkhead thickness .50″ max. Mates with 10-700-FB fitting bracket.

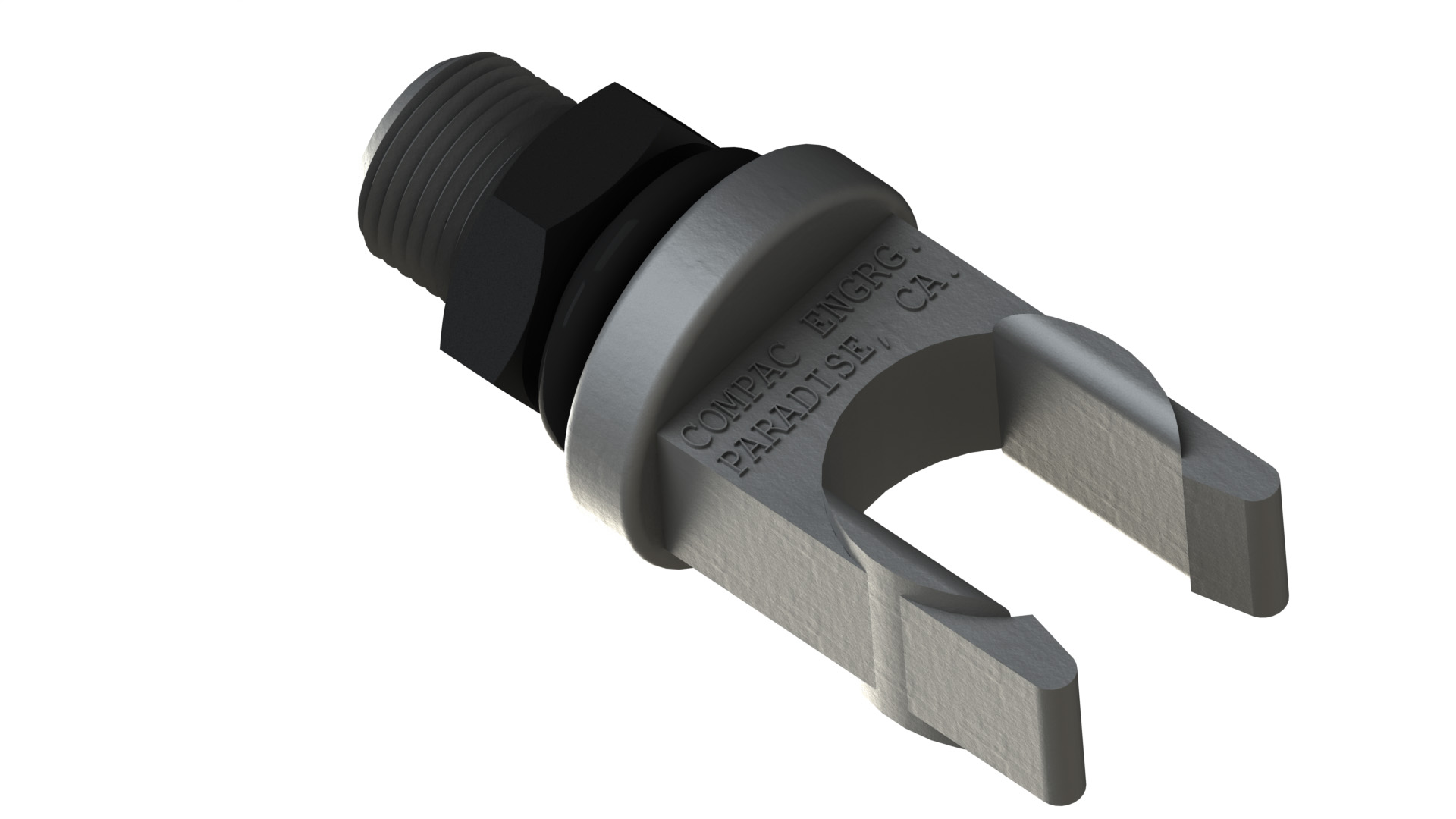

1/8 NPS fitting bracket with O-ring and jam nut. Mates with 10-700-CA, 10-700-CS, and 10-701-BH fittings. Bulkhead thickness .562″ max.

Liquid Tight Strain Relief Connector

1/2 NPS liquid tight strain relief connector. Nylon version with Buna-N internal seal. Protects lead wire egress from moisture ingress.

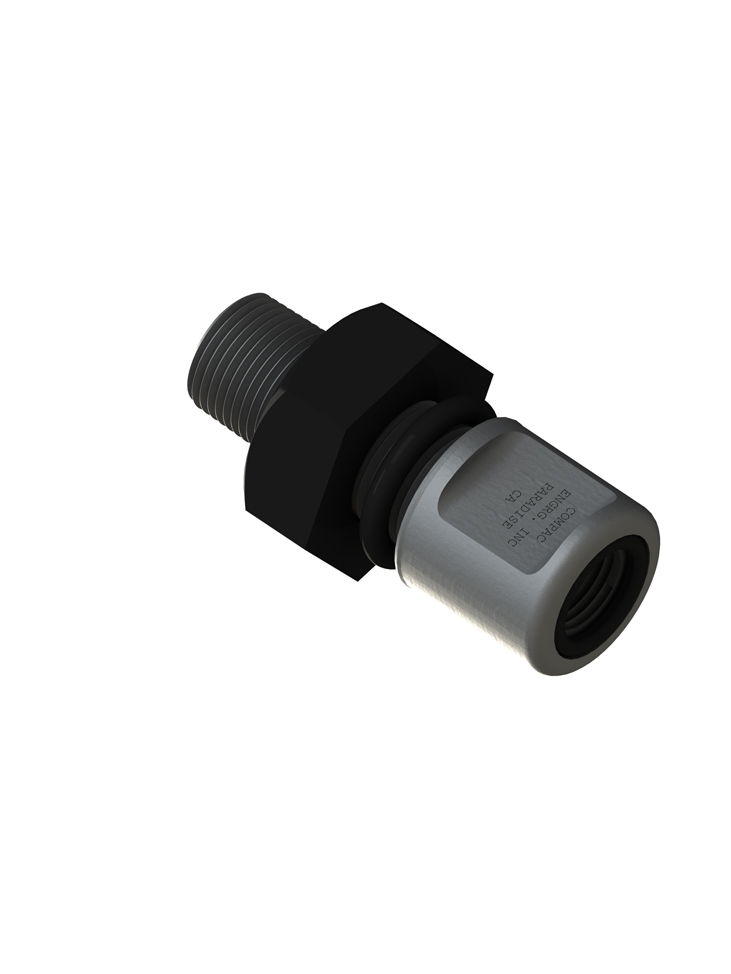

1/4″ Bulkhead Fitting

1/4 NPS along shank, 1/4 NPT at end. Bulkhead seal O-ring, jam nut, end seal, and OD seal included. .70″ dia, 1.75″ total length.

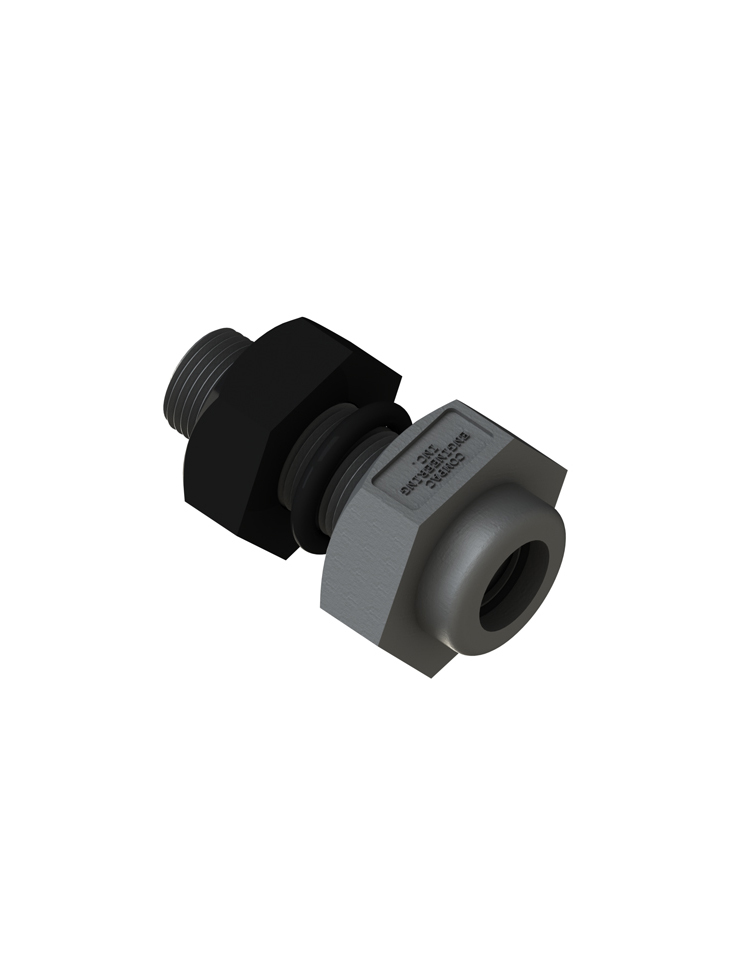

1/4″ Hex Bulkhead Fitting

1/4 NPS shank, 1/4 NPT end, 1.0″ hex. Optional snap-on cap for use with 1/8 pipe nipples. Bulkhead thickness .75″ max. 1.56″ length.

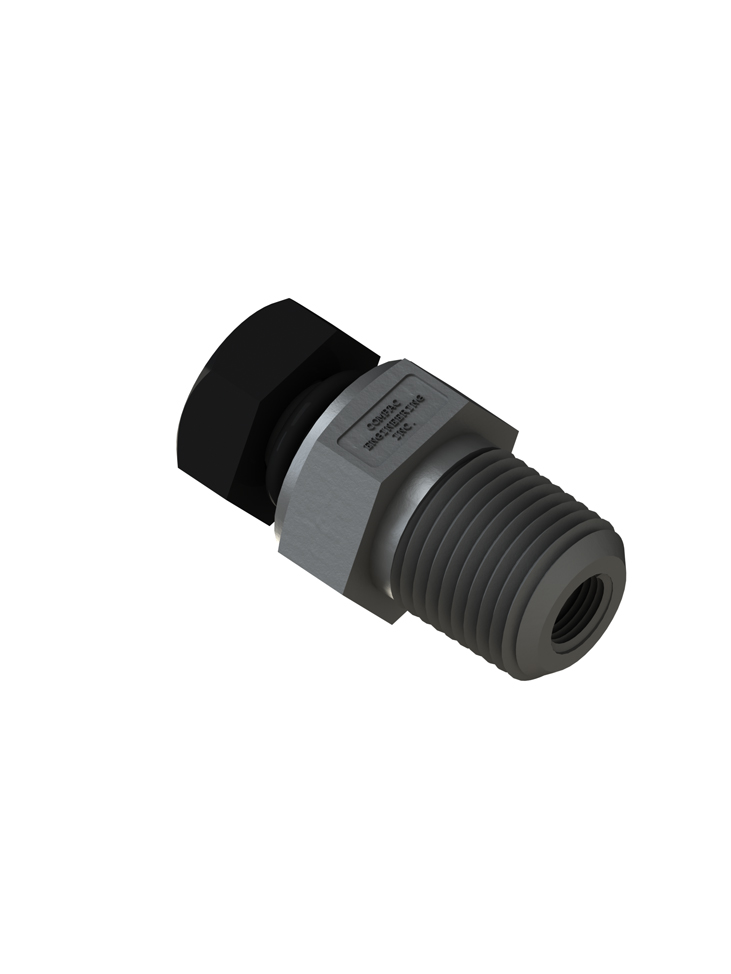

1/4″ BH / 1/2M / 1/8F Fitting

Three-way fitting: 1/4 NPT, 1/2 NPT, and 1/8 NPT. Mounts outside→in on 1/2 NPT, inside←out on 1/4 NPT, or through bulkhead with jam nut.

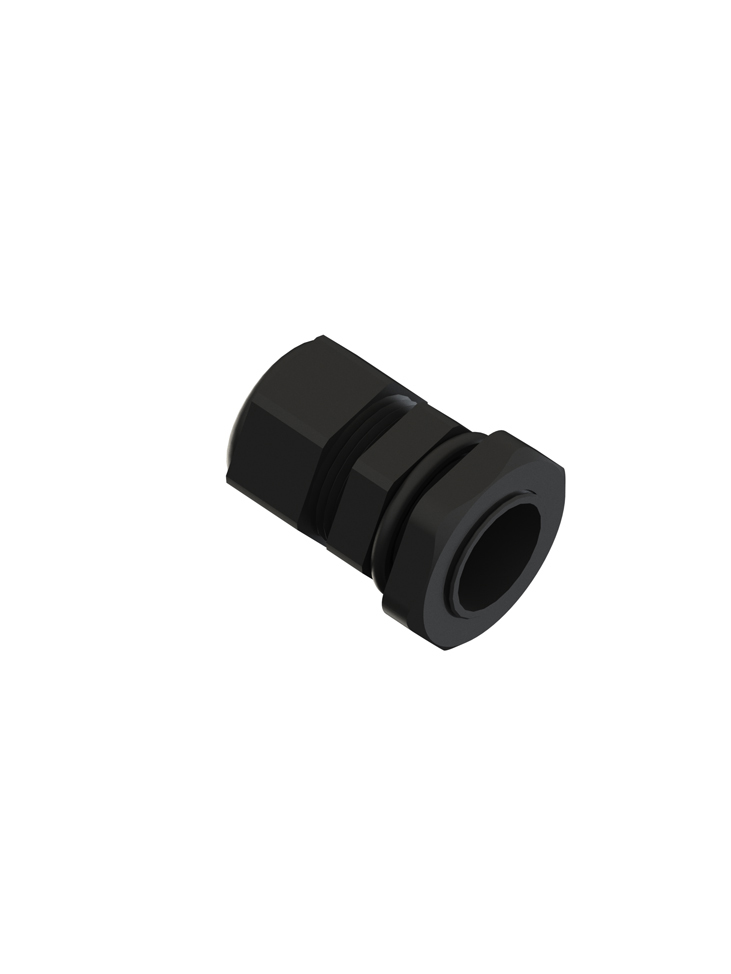

Liquid Tight Connector (Snap-In)

Snap-in liquid tight connector for sealed cable entry on snap-in receptacles. Nylon with Buna-N internal seal. 10-pack only.

Nylon

From $190.74 / 10-pack

Select →

Design Notes

Chemical Compatibility & Selection Guide

Polypropylene (PP)

Excellent resistance to water, soaps, light acids, and mild alkalis. The standard choice for water treatment, food processing, and general industrial applications. Most economical option.

Acetal (AC)

Engineered for hydrocarbons — gasoline, diesel, hydraulic oil, and lubricants. Not recommended for strong acids or oxidizing agents. Preferred for fuel system and mobile equipment applications.

PVDF Kynar (KR)

Maximum chemical resistance for harsh environments. Handles strong acids, caustics, chlorinated solvents, and high-purity chemical service. Specified for semiconductor, electroplating, and chemical processing.

Compatibility Reference

Fitting Mating Guide

Fitting	Mates With	Thread	Max BH Thickness
10-700-CA — Angle Connector	10-700-FB Fitting Bracket	1/8 NPS	.50″ (12.70 mm)
10-700-FB — Fitting Bracket	10-700-CA · 10-700-CS · 10-701-BH	1/8 NPS	.562″ (14.27 mm)
10-700-WC — Strain Relief Connector	Receptacle caps (installed on cap)	1/2 NPS	N/A
10-701-BH — 1/4″ Bulkhead Fitting	10-700-FB Fitting Bracket	1/4 NPS / 1/4 NPT	N/A
10-702-BH — 1/4″ Hex Bulkhead Fitting	1/8 pipe nipples (with snap-on cap)	1/4 NPS / 1/4 NPT	.75″ (19.05 mm)
10-703-BH — 1/4″ BH / 1/2M / 1/8F	Universal — 3 mounting configurations	1/4 · 1/2 · 1/8 NPT	N/A
