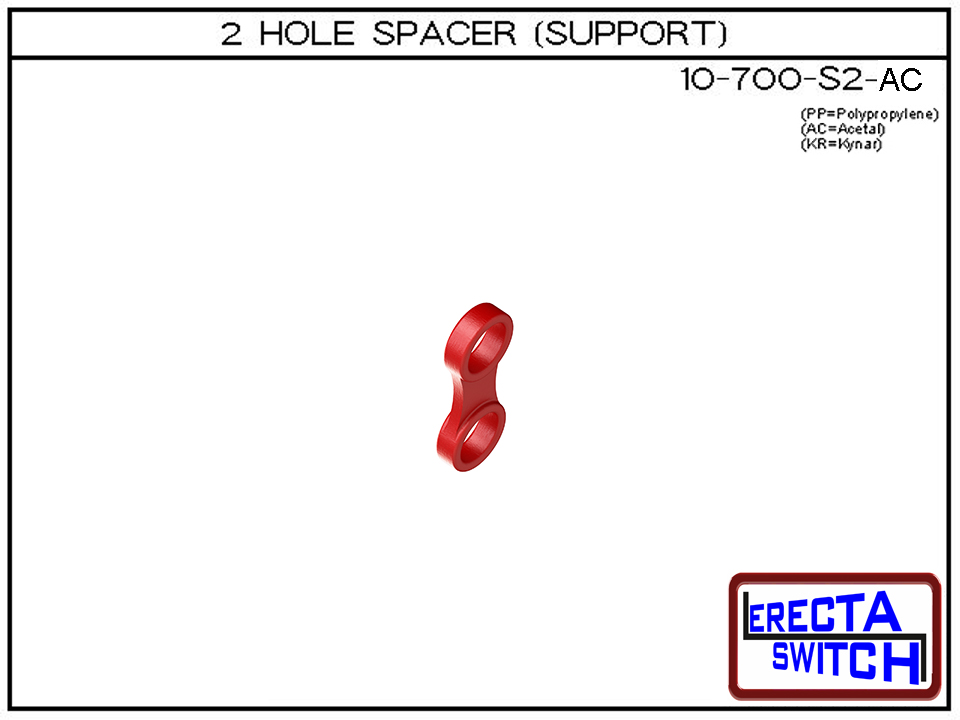

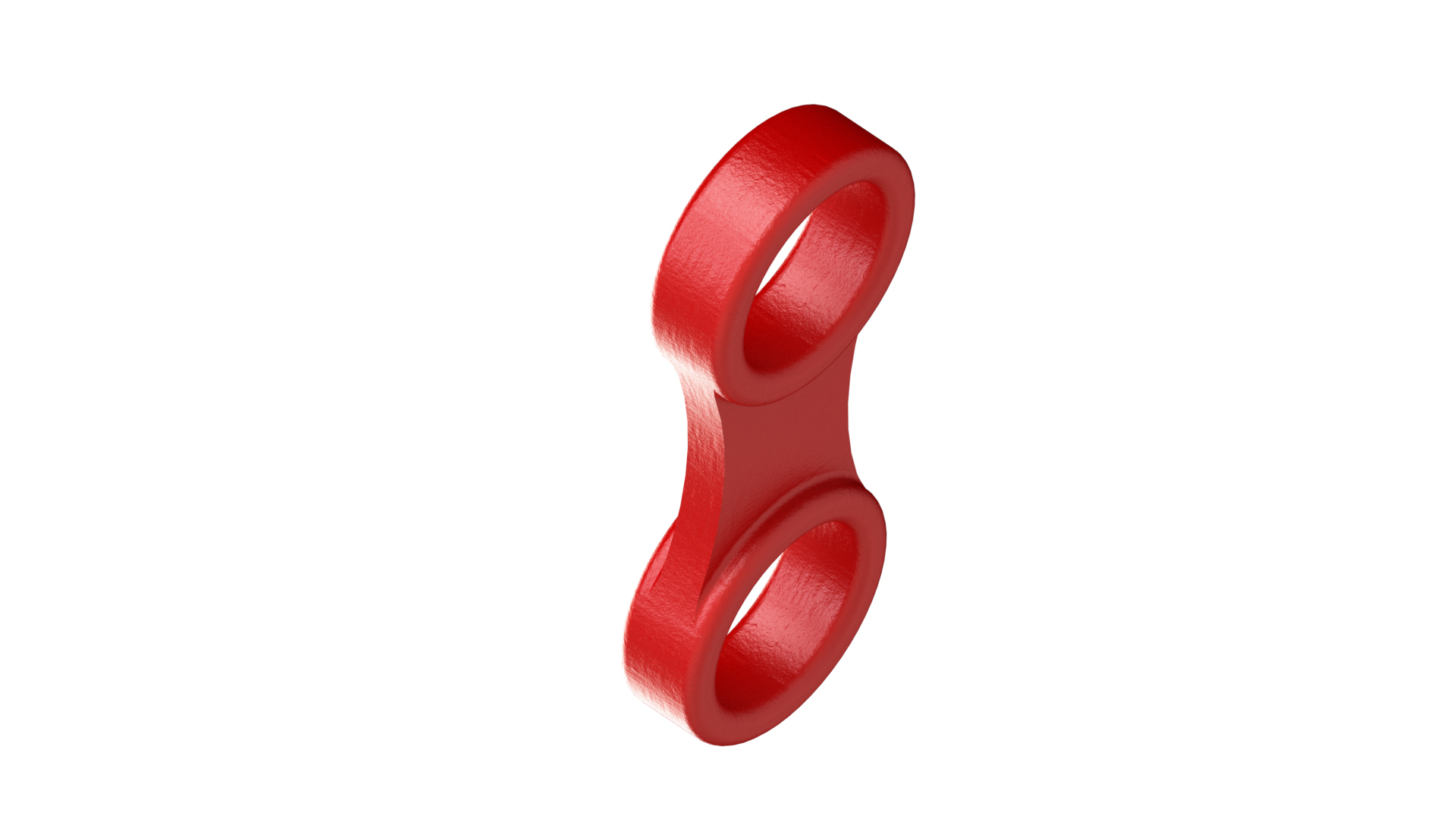

10-700-S2-AC — 2-Hole Spacer — 10-Pack
Maintains spacing between two switches on a single 10-715 precision nipple. Two-position configuration.
Maintains spacing between two switches on a single 10-715 precision nipple. Two-position configuration.
| Quantity | Price |
|---|---|
| 1–2 | $27.31 |
| 3–4 | $24.24 |
| 5–9 | $21.02 |
| 10–99 | $10.12 |
The 10-700-S2 spacer maintains precise spacing between two switches mounted on a single 10-715 precision nipple. Used in two-level monitoring configurations where both a high and low level switch are required on one assembly.
Used in 12 Series 10 switch sets: 10-202, 10-203, 10-203-SS, 10-204, 10-204-SS, 10-205, 10-206, 10-206-SS, 10-207, 10-207-SS, 10-208, 10-208-SS. Every set is assembled from stocked Series 10 accessories, so this part is orderable on its own for service or reconfiguration.

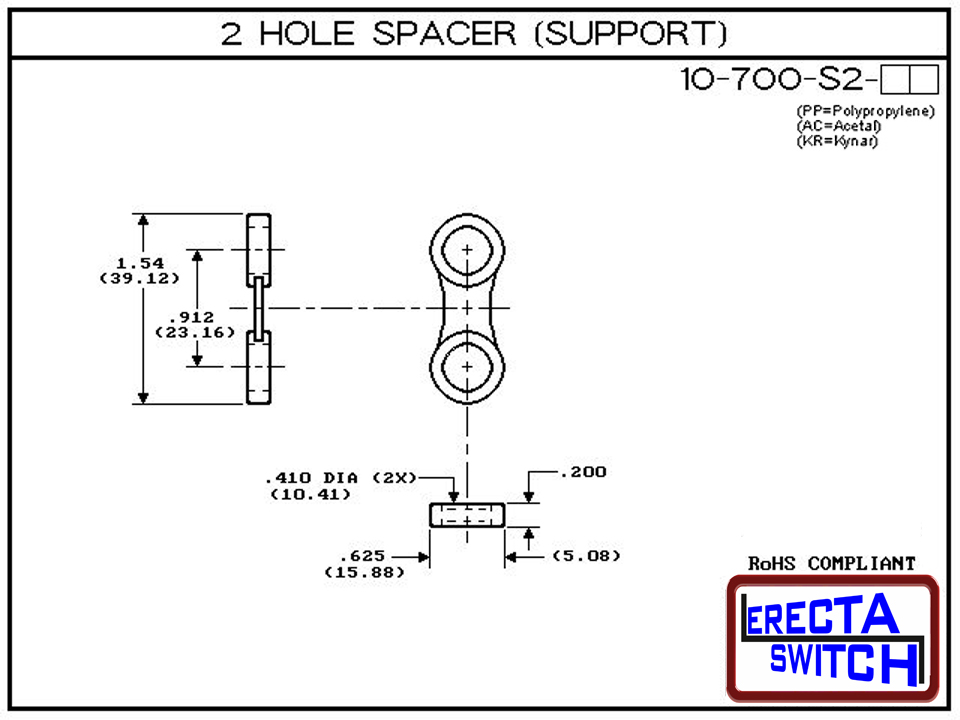

| Specification | Value |
|---|---|
| Type | 2-hole spacer |
| Positions | 2 switch positions |
| Thread | Slides onto 10-715 nipple |
| Max Temperature | PP: 180°F / AC: 200°F / KR: 280°F |
| Material | Acetal |
| Pressure Rating | 100 PSI @ 20°C; derate to zero @ 90°C |
Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Most ERECTA SWITCH models are offered in all three materials; some are material-specific, so check the product page for the model you need.
Consider media chemistry (pick PP, AC, or KR), liquid specific gravity, operating temperature and pressure, mounting style, number of switch points, and electrical contact rating. Compac will spec it from your application — request a free evaluation sample.
It is the only fully modular, off-the-shelf liquid level switch system: switch, float, connector, fitting, and nipple are independently field-replaceable and stocked. OEMs configure exactly what they need with no minimums and short lead times. Made in Paradise, California; RoHS compliant.
Yes. The 10-700-S2-AC is available as an individual, stocked part — no need to replace the entire switch assembly. ERECTA SWITCH is a fully modular system: switch, float, connector, fitting, spacer, and nipple are all orderable separately with no minimums. This reduces repair cost and downtime for OEM field service.
Yes — modularity is the core of the ERECTA SWITCH system. The 10-700-S2-AC is designed to work across multiple Series 10 configurations. Floats, connectors, spacers, and fittings share standard interfaces, so one stocked component serves many switch assemblies. Check the model number to confirm compatibility.
Each component has a unique model number (e.g., 10-700-S2-AC) that identifies its type, material, and function within the assembly. Contact Compac with your switch model number and the part you need to replace — or request a free evaluation sample to confirm fit before ordering production quantities.
Our engineering team can verify compatibility with your application and chemistry before you order.
