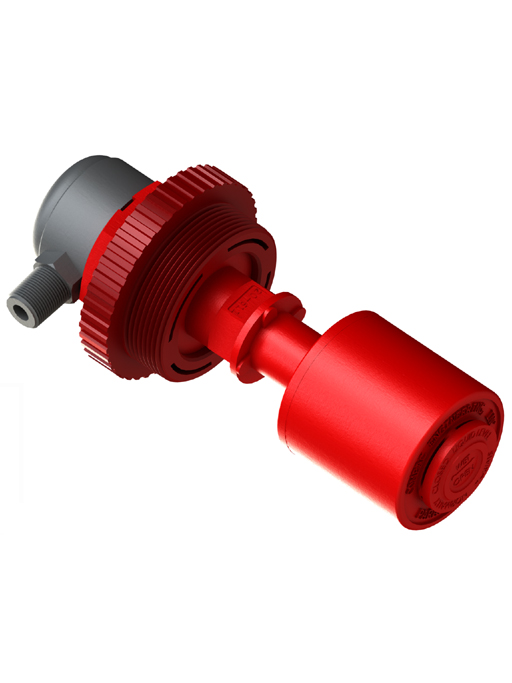

20-614 product image
Product
Product
Catalog
Catalog
Diagram
Diagram
Exploded
Exploded
Family 1
Family 1
Family 2
Family 2
Family 3
Family 3
Family 4
Family 4

20-614-DO-AC

Top Mounted Low Profile Receptacle Switch Set — Dome Opening, Acetal

Material: PP AC KR
Opening: WO DO
QuantityUnit Price
1–9$265.68
10–24$222.28
25–49$197.66
50–99$165.79
100–999$119.04
As low as $119.04
QtyUnit Price
1–9$265.68
10–24$222.28
25–49$197.66
50–99$165.79
100–999$119.04

1-pack · Prices shown are net. OEM qty pricing available upon request.

SKU: 20-614-DO-AC
Qty
RoHS Compliant

Product Overview

The 20-614-DO-AC is a top-mounted, low profile receptacle switch set for dome opening applications, constructed from acetal (Delrin). Acetal offers superior dimensional stability and resistance to hydrocarbons, solvents, and weak acids. The rain-tight, low-profile receptacle accommodates AWG 20 gauge stranded wire splice with a self-sealing cap screw. The 1/4 NPT nipple rotates 360° for flexible conduit positioning.

Specifications

Model20-614-DO-AC
Opening TypeDome Opening (DO)
MaterialAcetal (AC)
MountingTop Mounted, 2 NPT
Conduit Connection1/4 NPT (rotates 360°)
Wire GaugeAWG 20 Stranded
Height1.75 in (44.45 mm)
Float Diameter2.00 in (50.9 mm)
Pressure Rating20 PSI @ 60°C; derate to zero @ 90°C
ComplianceRoHS Compliant
Switch Action Reversal: Switch action can be reversed by rotating the switch 180° within the receptacle. See the 20-611 page for switch operation specifications.

Components

Part NumberDescriptionQty
20-611-DO-ACSwitch1
20-700-SP-ACSpacer1
20-705-RM-ACHex Receptacle1
20-700-AS-ACAdapt/Seal Set1
20-700-MS-ACMid Section1
20-703-CM-ACCap and Screw1

Catalog Drawing

20-614 Top Mounted Low Profile Receptacle Switch Set — Catalog Drawing Page 406-4
Page 406-4 — 20-614 Top Mtd, Low Profile Recept, Switch Set

Related Products

Also Available in Dome Opening
20-614-DO-PP — Polypropylene 20-614-DO-KR — Kynar
Frequently Asked Questions

Common Questions About This Product

What is the difference between a float level switch and a liquid level sensor?

A float level switch like the 20-614-DO-AC is a point-level device: a float rides the liquid and actuates a magnetic reed switch at a set height, giving a simple on/off signal — no power, no firmware, no calibration. "Sensors" usually means continuous measurement (ultrasonic, radar, capacitive). ERECTA SWITCH targets reliable discrete-point control.

What are the typical applications for the 20-614-DO-AC?

The 20-614-DO-AC is used for pump start/stop control, high-level overflow protection, low-level dry-run protection, and tank or reservoir level alarms in OEM equipment. The modular ERECTA SWITCH system is built into laundry, HVAC, water-treatment, hydraulic, and chemical-handling machinery.

What liquid chemistries is the 20-614-DO-AC compatible with?

Choose the material to match the media: Polypropylene (PP) for general aqueous, acids, and bases; Acetal (AC/Delrin) for solvents, fuels, and hydrocarbons; Kynar PVDF (KR) for aggressive or harsh chemicals. Every ERECTA SWITCH model is offered in all three materials.

Is the 20-614-DO-AC a point-level or continuous-level device?

The 20-614-DO-AC is point-level — it provides a discrete on/off signal at a set height. For multiple switch points, use a multi-level extended-stem set (2-, 3-, or 4-level) instead of a single continuous sensor.

What mounting options are available for the 20-614-DO-AC?

ERECTA SWITCH offers vertical top-mount, bulkhead, and extended-stem configurations, plus side-mounted single-point models. The mount style is part of the model number — select the configuration that matches your tank geometry.

How is the actuation level set on the 20-614-DO-AC, and how accurate is it?

Point detection is repeatable and mechanical. The trip height on the 20-614-DO-AC is set by the 10-715 Precision Nipple, ordered separately in 1-inch increments (1″–70″), so you place the switch point exactly where the application needs it.
