10-105-SS-KR 1-1/4″ NPT Relay Housing Vert Mtd 1 Level extended Stem Shielded Level Switch Set (PVDF Kynar) – OEM 10 Pack
9999 in stock

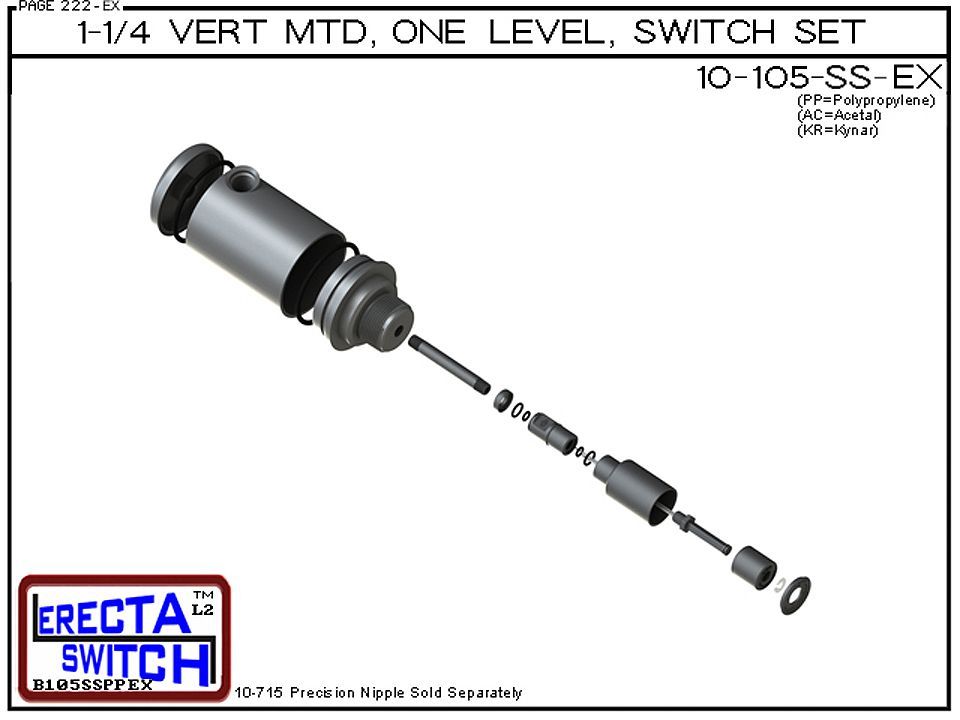

10-105-SS-KR 1-1/4″ NPT Relay Housing Vertical Mounted One Level extended Stem Shielded Level Switch Set (PVDF Kynar) features a 1-1/4″ NPT Relay Housing providing a liquid tight chamber for your control relay or wire splices. Housing includes an upper chamber with screw on lid to access external wiring and 1/2 NPT female boss for conduit connection. The innovative snap on slosh shield dampens turbulence from agitation, proximity to tank filling etc… and protects the level switch during installation and removal. liquid level switch set includes everything except the 10-715-PP-XX precision nipple.10-715-PP-XX nipple is available in 1 inch increments from 1 – 70 inches. This item is sometimes referred to as a water level switch, float switch, or magnetic level switch.
The PVDF Kynar Liquid Level Switch version is suitable for harsh acids, caustics, chlorine and other highly corrosive chemical Liquid Level Switch applications.
See also series 10 Liquid level sensor product group including vertical mounted single point level switch sets, side mounted levels switch sets. extended stem level switch sets and multi level switch sets, and series 15 side mounted liquid level switch product group.
