10-202T-KR 1-1/4 Vertical Mounted Combination Level Switch / Temperature Switch Set (PVDF Kynar)
Liquid Level Switch General Specifications
- General Specifications Page 1
- General Specifications Page 2
- General Specifications Page 3
- General Specifications Page 4
Temperature Switch General Specifications

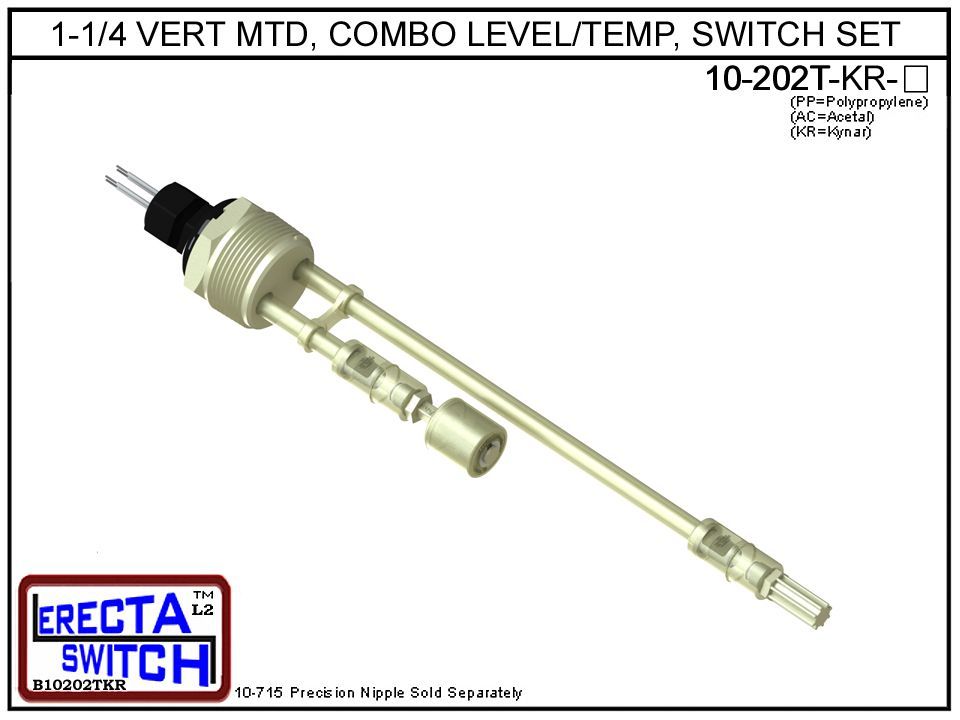

10-202T-KR 1-1/4 Vertical Mounted Combination Level Switch / Bi-Metallic Temperature Switch Set (PVDF Kynar) features a 1-1/4″ NPT receptacle providing a weather tight chamber for wire splices. The Combination level switch and temperature switch set receptacle cap has a 1/2″ center knock out and set provides a liquid tight strain relief connector. Level Switch Temperature Switch Set includes everything except the 10-715-KR-XX precision nipples.10-715-KR-XX nipples are available in 1 inch increments from 1 – 70 inches. This Combination Level Switch / Temperature Switch Set is great for consolidating Level Sensing and temperature sensing in one stage. This item is sometimes referred to as a water level switch, float switch, magnetic level switch, temperature switch or bi metallic temperature switch.
10-782 Level Switch is the key liquid level switching element in all level switch sets extended level switch sets, multi level switch sets and Combination Level Switch / Bi-Metallic Temperature Switch Sets in the series 10 ERECTA SWITCH OEM Level switch product group. The 10-782 OEM level switch opens on rise or closes on rise by reversing the float. It’s a simple Float Switch product based on a simple idea. A magnetic float rising or falling in response to liquid level change actuates a hermetically sealed magnetic reed switch. This straight forward method of converting motion into an electrical signal is so uncomplicated that many years of reliable service can be expected. This item is sometimes referred to as a water level switch, float switch, or magnetic level switch.
11-800 Bi-Metallic temperature switch (temperature switching element of this Combination Level Switch / Bi-Metallic Temperature Switches are creep mechanisms (having no built in differential) and are characterized by slow make / slow break and rapid cycling capability.As a result, these Bi-Metallic temperature switches are suited for both control and limit applications. Also found under temperature sensor, temperature probe, and thermal switch.
See also series 10 Liquid level sensor product group including vertical mounted single point level switch sets, side mounted levels switch sets. extended stem level switch sets and multi level switch sets, and series 15 side mounted liquid level switch product group.
The PVDF Kynar Combination Level Switch / Temperature switch version s suitable for harsh acids, caustics, chlorine and other highly corrosive chemical liquid level sensing applications.
