10-304-PP Flange Mounted 3 Level Switch Set (Polypropylene) – OEM 10 Pack
99999 in stock

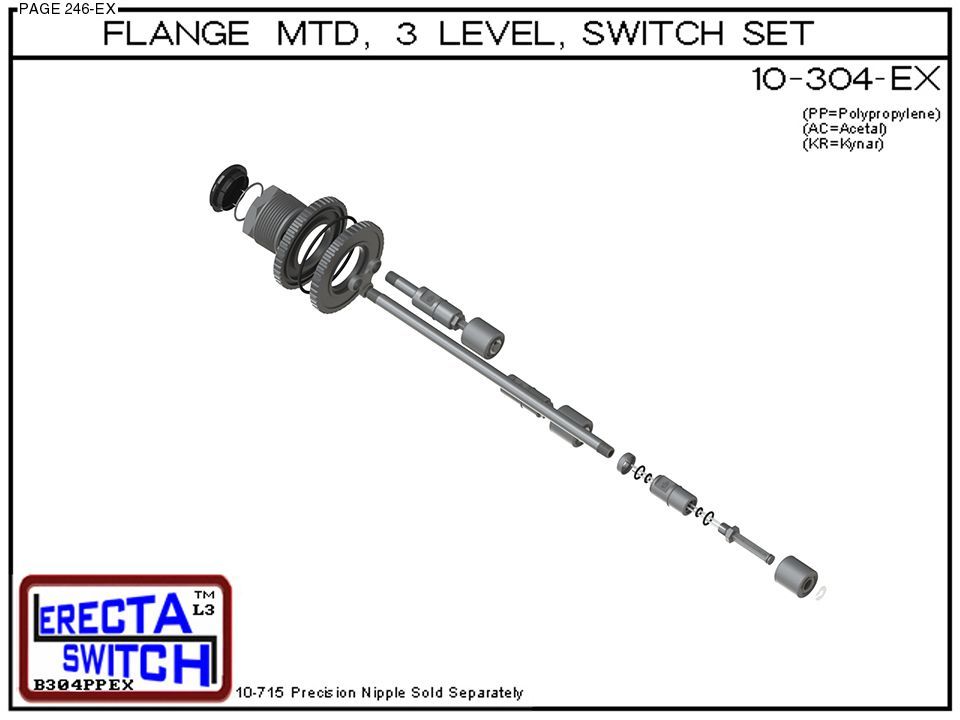

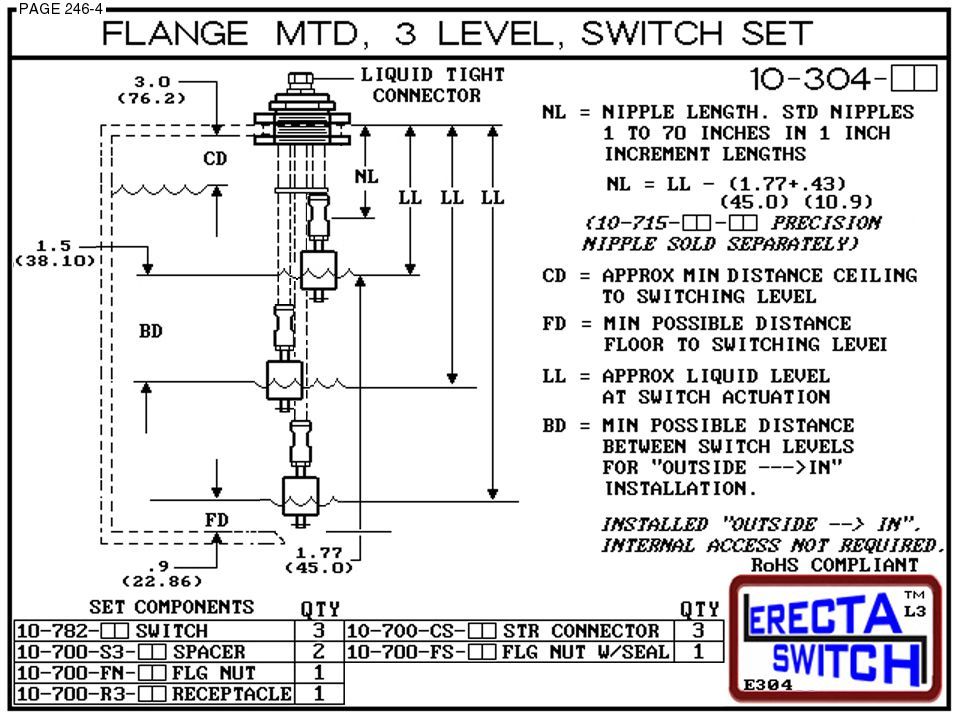

10-304-PP Flange Mounted 3 Level Switch Set (Polypropylene) features a 1-1/4″ NPT wiring receptacle providing a weather tight chamber for wire splices, and our unique flange nuts. Flange nuts on this multi level switch set eliminate the need to install a threaded female boss in the top of your tank. The receptacle cap has a 1/2″ center knock out and set provides a liquid tight strain relief connector. Multi Level Switch Set includes everything except the 10-715-PP-XX precision nipples.10-715-PP-XX nipples are available in 1 inch increments from 1 – 70 inches. This Multi Level Switch set is great for differential level sensing and easy mounting on screw on tank lids and thin bulk heads.This item is sometimes referred to as a water level switch, float switch, or magnetic level switch.
Polypropylene liquid level switch version is suitable for water, soaps , light acid liquid level sensor applications.
See also series 10 Liquid level sensor product group including vertical mounted single point level switch sets, side mounted level switch sets. extended stem level switch sets and multi level switch sets, and series 15 side mounted liquid level switch product group.
Multi Level Switch – Liquid Level Switch – Liquid Level Sensor – Float Switch – OEM Level Switch – Water Level Switch – Level Sensor – Magnetic Level Switch
