10-408-KR Pop-In Mtd 4 Level Float Switch Set
10000 in stock

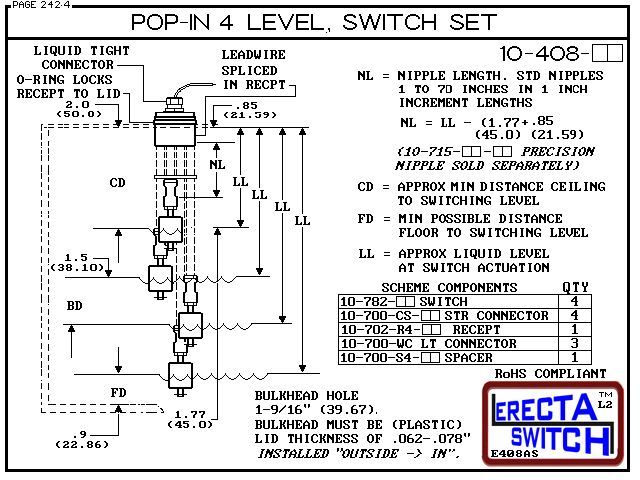

10-408-KR Pop-In Four Level Extended Stem Shielded Multi Level Switch Set features our unique Pop-in wiring receptacle providing a weather tight chamber for wire splices. The Pop-In receptacle cap has a 1/2″ center knock out and Multi Level Switch set provides a liquid tight strain relief connector. The innovative snap on slosh shields dampen turbulence from agitation, proximity to tank filling etc… and protect the liquid level switches during installation and removal. Multi Level Switch Set includes everything except the 10-715-PP-XX precision nipples.10-715-PP-XX nipples are available in 1 inch increments from 1 – 70 inches. If you need differential level sensing in a tank with a thin plastic bulkhead or tank lid (.062-.078), just punch a 1-9/16″ hole and this this multi level switch set just pops right in.This item is sometimes referred to as a water level switch, float switch, or magnetic level switch.
See also series 10 Liquid level sensor product group including vertical mounted single point level switch sets, side mounted level switch sets. extended stem level switch sets and multi level switch sets, and series 15 side mounted liquid level switch product group.
The PVDF Kynar Liquid Level Switch version is suitable for harsh acids, caustics, chlorine and other highly corrosive chemical Liquid Level Switch applications.
