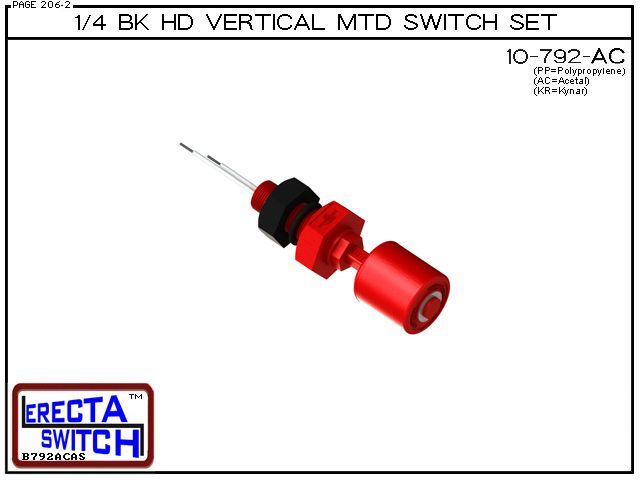

10-792-AC 1/4 Bulk Head Vertical Mounted Level Switch adds a 1/4" NPT bulkhead fitting to the 10-782 Liquid level switch. Liquid Level Sensor set seals to the bulkhead fitting with double o ring seal. Mount this level switch set to an existing 1/4" NPT fe

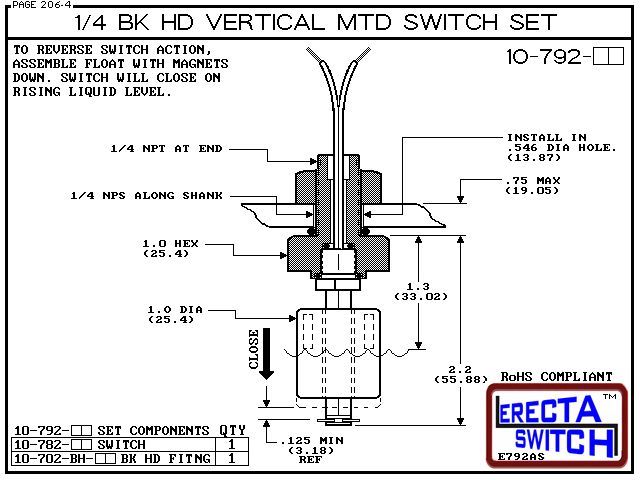

Diagram - 10-792-AC 1/4 Bulk Head Vertical Mounted Level Switch adds a 1/4" NPT bulkhead fitting to the 10-782 Liquid level switch. Liquid Level Sensor set seals to the bulkhead fitting with double o ring seal. Mount this level switch set to an existing 1
Exploded View - 10-792-AC 1/4 Bulk Head Vertical Mounted Level Switch adds a 1/4" NPT bulkhead fitting to the 10-782 Liquid level switch. Liquid Level Sensor set seals to the bulkhead fitting with double o ring seal. Mount this level switch set to an exis

10-792-AC 1/4 BK HD Vertical MTD Level Switch Set (Acetal)

$57.85

9994 in stock

QuantityDiscounted Price
30 - 49$51.01
50 - 99$44.43
100 - 199$20.94
200+$19.32

General Specifications

The 10-792-AC 1/4″ Bulkhead Vertical Mounted Level Switch Set offers a robust solution for liquid level monitoring, particularly suited for hydrocarbon-based liquids. This switch set integrates a 1/4″ NPT bulkhead fitting with the 10-782 Liquid Level Switch, ensuring a secure and efficient installation.

Key Features:

  • Effortless Installation: Designed for easy mounting to a 1/4″ NPT threaded boss or a smooth hole. The switch seals internally with a Viton O-ring and is fastened externally with a jam nut, providing a reliable and leak-free assembly.
  • Adjustable Float Operation: The float can be configured to either open or close upon rising liquid levels by reversing its orientation, allowing customization to specific application needs.
  • High-Quality Acetal Construction: Constructed from durable acetal material, this level switch is ideal for applications involving hydrocarbons such as gasoline, hydraulic oil, diesel fuel, and clean motor oil, offering excellent chemical compatibility and durability.

Applications:

  • Fuel storage and monitoring systems
  • Hydraulic oil reservoirs
  • Diesel fuel tanks
  • OEM equipment requiring hydrocarbon liquid level detection

Related Products:
Explore the Series 10 Liquid Level Sensor product group, which includes vertical mounted single-point level switch sets, side-mounted level switch sets, extended stem level switch sets, and multi-level switch sets. Additionally, consider the Series 15 side-mounted liquid level switch products for alternative configurations.
