11-801-R-AC 1/4 Bulkhead Mounted Wiring Receptacle Temperature Probe / Bimetal Temperature Switch Set (Acetal)

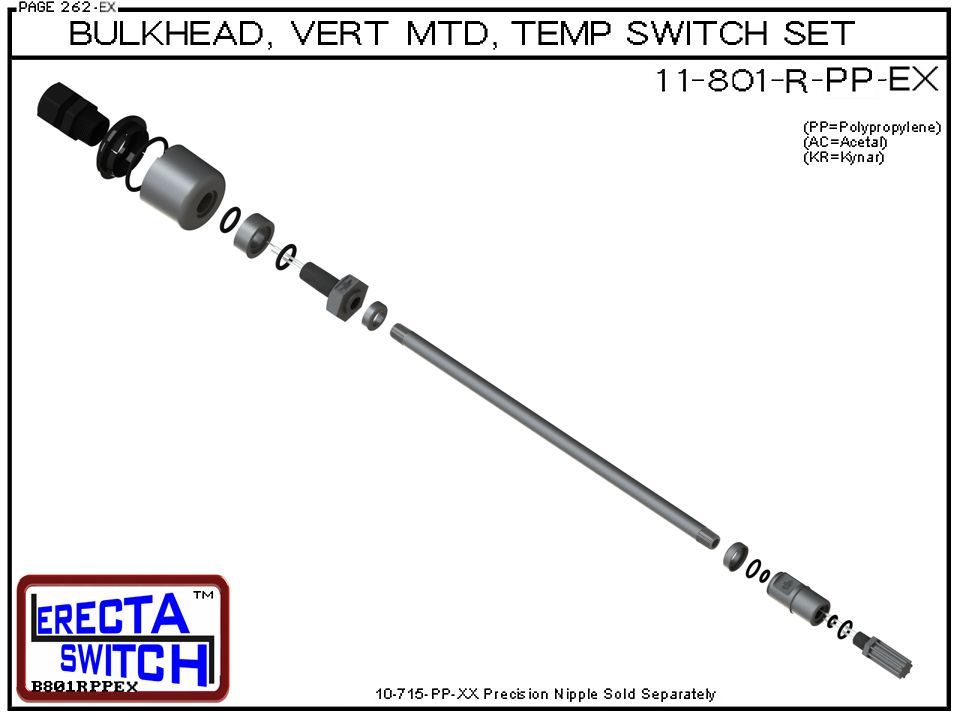

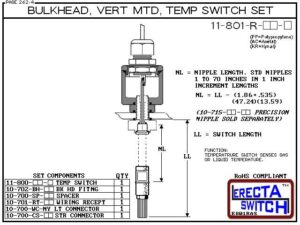

11-801-R-AC 1/4 Bulkhead Mounted Wiring Receptacle Temperature Probe / Bi-Metallic Temperature Switch Set (Acetal). This temperature switch / temperature probe includes a 1/4 NPT Bulkhead fitting mount straight connector and 11-800 temperature switch. The wiring Receptacle included in this Temperature Probe / Temperature Switch Set provides a weather tight enclosure for wire splice. The temperature switch probe / temperature switch set is extended using 10-715 precision nipples (sold separately and available in 1 inch increments from 1″-70″).
11-800 temperature switch (switching element of this temperature probe / temperature switch set) are creep mechanisms (having no built in differential) and are characterized by slow make / slow break and rapid cycling capability.As a result, these temperature switches are suited for both control and limit applications. Also found under temperature sensor, temperature probe, and thermal switch.
Acetal Temperature Probe / Temperature Switch Version is suitable for Temperature Sensing in hydrocarbon applications such as gasoline, hydraulic oil, diesel fuel, and clean motor oil.
