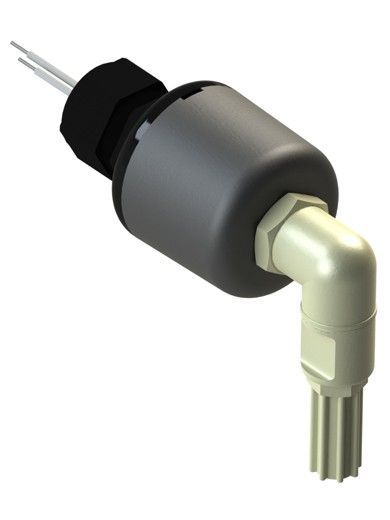

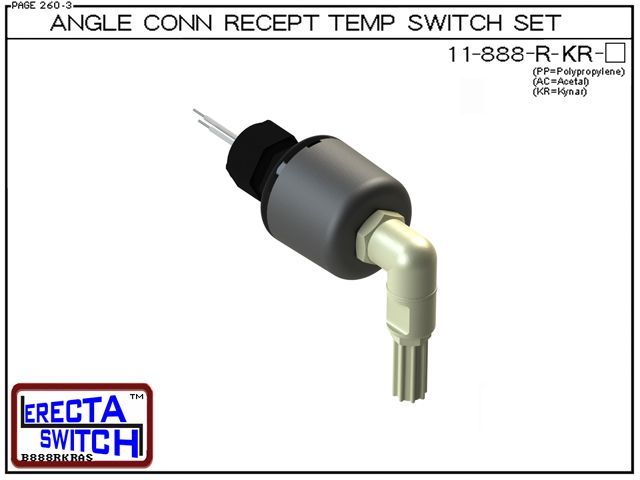

11-888-R-KR Bimetal Angle Connector Mounted Wiring Receptacle Temperature Switch Set (PVDF Kynar) – OEM 10 Pack

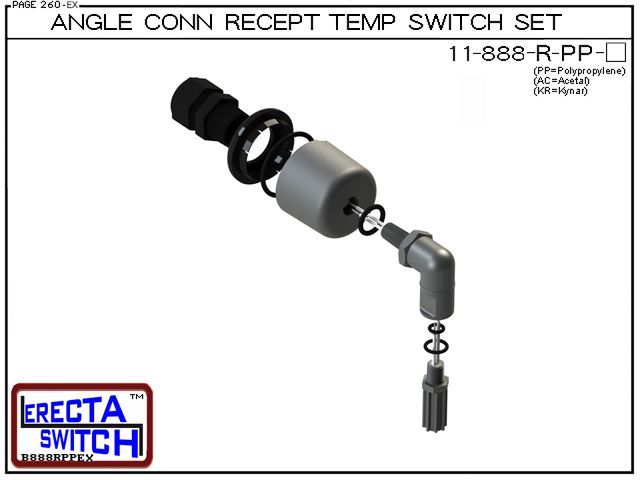

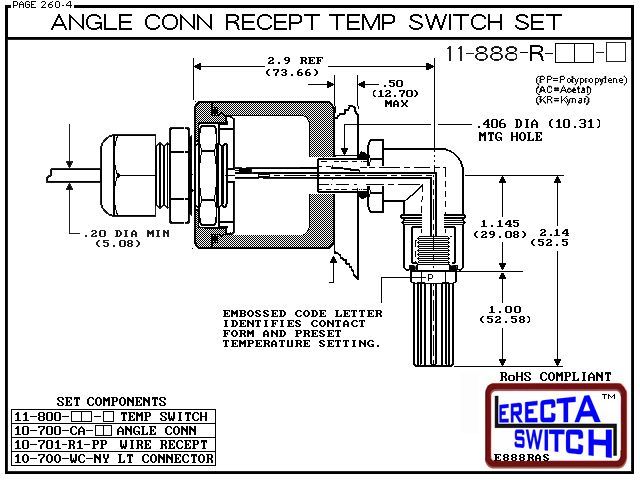

11-888-R-KR Bi-Metallic Angle Connector Mounted Wiring Receptacle Temperature Switch Set (PVDF Kynar) adds a weather tight wire receptacle to the 11-888 temperature switch set. The temperature switch sets innovative wire receptacle replaces the jam nut and provides a weather tight chamber for wire splices. The temperature switch set receptacle cap has a 1/2″ center knock out and accommodates included liquid tight strain relief connector. The angle connector adapts the 11-800 temperature switch to an angle mounted temperature switch.
11-800 temperature switch (switching element of this temperature switch set) are creep mechanisms (having no built in differential) and are characterized by slow make / slow break and rapid cycling capability.As a result, these temperature switches are suited for both control and limit applications. Also found under temperature sensor, temperature probe, and thermal switch.
The PVDF Kynar version of this temperature switch set is suitable for temperature sensing in harsh acids, caustics, chlorine and other highly corrosive chemical temperature sensor applications.
